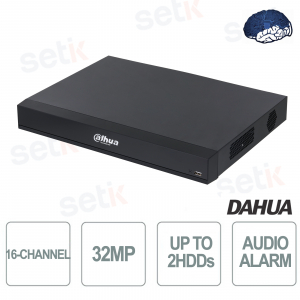

Dahua Professional ONVIF IP NVR NVR5216-XI WizMind XI Series 16 Channel Recorder with up to 32MP resolution. Smart H.265+, Up to 512Mbps input/recording/output bandwidth. Artificial Intelligence : Face detection and recognition, perimeter protection, SMD plus, Video metadata, ANPR, stereo analysis, heat map, people counting. Up to 2HDDs (20TB - not included), 1 audio input/1 output, 4 alarm inputs/2 outputs, 1x USB 2.0, 1x USB 3.0, 1x RS232, 1x RS485. Supports mounting rack or desk.
BUSQUE INSTALADOR
708,73 €
1.648,22 € -57%PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
Description Product Details Technical Sheet Further Details Download
DAHUA 16 CHANNEL ONVIF® IP NVR - XI SERIES ARTIFICIAL INTELLIGENCE - UP TO 32 MEGAPIXEL
Up to 32MP resolution - 512Mbps maximum bandwidth - Video compression up to H.265+
HDMI Output - VGA - 2 USB - Audio and Alarm - Up to 2 SATA III 3.5" HDDs
Artificial Intelligence: Face detection and recognition, perimeter protection, SMD plus, metadata, ANPR, stereo analysis, heat map, people counting, Video metadata
Product details
|
Dahua XI series Dahua NVR5000-XI series offers advanced recording technology and features AI capabilities that make it ideal for IP video surveillance. It features a powerful processor with powerful decoding capabilities that provides high bandwidth access, inbound and outbound, forwarding and strong decoding capabilities that together produce unhindered streaming and access up to 32MP video. With Dahua's advanced deep learning algorithms and video metadata technology, the NVR offers:
|
Technical data sheet
| Model: DVR | NVR5216-XI |
| SYSTEM | |
| Main Processor | Industrial grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| TO THE | |
| AI by Recorder | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis, crowd distribution; people counting; ANPR; heat maps; PPE detection |
| AcuPick AI by Camera + Recorder | Max. 16-channel, 1 combined event per channels |
| PERIMETER PROTECTION | |
| Perimeter Performance AI by Recorder (Number of Channels) | 16 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (32 targets/s) |
| FACE DETECTION |
|
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 8 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| FACE RECOGNITION |
|
| Face Database Capacity | Up to 20 face databases with 2,000,00 images, with a total capacity of 44 G. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 16-channel FD (by camera) + FR (by recorder), image stream: 32 face images/s 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD PLUS |
|
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (64 targets/s) |
| VIDEO METADATA |
|
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels, 23 attributes extraction. |
| Metadata Performance of AI by Camera (Number of Channels) | 16 channels |
| People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non-motor vehicle attributes | 4 attributes |
| VEHICLE LICENSE PLATE COMPARISON |
|
| ANPR by Camera (Number of Channels) | All channels (32 targets/s) |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
| AUDIO AND VIDEO | |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording and 512 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP; 24MP; 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@25fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps;8- channel 8MP@30fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24MP@25fps; 2-channel 16MP@30fps; 4-channel 12 MP@30 fps;6- channel 8 MP@30 fps; 8-channel 6MP@30fps |
| Video Output | 1 VGA, 1 HDMI VGA:1920×1080, 1280×1024, 1280×720 HDMI:3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous video source output for HDMI and VGA |
| Multi-screen display | Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16 |
| Third Party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| STANDARD COMPRESSION |
|
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| NETWORK | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| RECORDING PLAYBACK |
|
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| STORAGE | |
| Disk Group | Yes |
| ALARM | |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, RAID exception, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; offline camera; audio detection |
| Smart Alarm | Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail |
| PORT | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| AlarmOutput | 2 channels |
| HDD Interface | 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1(10/100/1000 Mbps Ethernet port, RJ-45) |
| GENERAL | |
| Power Supply | 12VDC, 4A |
| Power Consumption | <10w without="" hdd="" td=""> |
| Net Weight | 1.56 kg (3.44 lb) |
| Gross Weight | 2.86 kg (6.31 lb) |
| Product Dimensions | 375.0 mm × 329.4 mm x 53.0mm (14.76" × 12.97" × 2.09") (W × D × H) |
| Packaging Dimensions | 433.0 mm × 366.0 mm x 141.0 mm (17.05" × 14.41" × 5.55") (W ×D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| CERTIFICATIONS | |
| Certifications |
Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN |
Further details
 |
This IP NVR recorder features 16 Channels for connecting IP cameras Recording resolution up to 32Megapixel Up to 512Mbps bandwidth |
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 |
This NVR supports ONVIF® 23.06 standard |
 |
ANPR | Automatic license plate recognition Ideal for managing income and expenses. Compatible with Dahua ANPR cameras , integrates black/white list functions, data import/export, add/delete license plate numbers in lists, search results from recorded video.  |
 |
Possibility to connect POS devices, obtaining all the information overlaid on the channel. Possibility to search POS by date or transaction
|
 |
Supports 2x 3.5" SATA III Hard Disk up to 20TB each (hard disks not included) WARNING: On NVR systems use specific audio/video disks. For more information, read our dedicated article . |
 |
This NVR features 2 USB ports (1x rear USB3.0, 1 Front 2.0) |
|
|
1x HDMI and 1x VGA port |
 |
With 4 input and 2 output alarm relay for inputs from burglar alarms or other devices and to activate external peripherals (gates, sirens, etc.) |
 |
This NVR features 1 RCA audio input and 1 RCA audio output |
 |
Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP |
 |
Ability to overwrite disk when full or have disk overwrite after X days. NVR reboot schedule to ensure greater stability over time |
 |
This NVR has email sending. In case of events (camera blur, signal cut, motion, broken disk, network problems etc...), it is able to send a notification via email, an audible notification or upload videos & screenshots via FTP |
 |
Motion Function. Recording starts when the camera detects motion. |
 |
1x RJ-45 (10/100/1000Mbps) |
 |
RS 485 for PTZ Controls (Remotely controllable cameras) |
 |
RS 232 to communicate with PC and keyboard |
 |
This product is covered by a 24 month warranty. |
