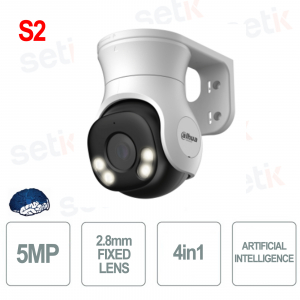

Telecamera PT HDCVI Smart Dual Light 5MP 2.8mm Versione 2 - Dahua

Telecamera PT HDCVI Smart Dual Light 5MP 2.8mm Versione 2 - Dahua
BEST PRICE -58%

Telecamera Dahua da esterno HAC-PT1500A-IL-A-S2 Versione S2 5MP 5 Megapixel con 4 tecnologie in 1: HDCVI / HDTVI / AHD / Analogica Commutabile via BNC port, ottica fissa 2.8mm e sensore CMOS da 5MP - Illuminatore Smart IR 4 LED 40MT, Day/Night (ICR), BLC,  HLC,  DWDR, Microfono incorporato, Protezione IP66 per uso in esterno - Fabbricata in plastica - Dahua Technology.

referencia : HAC-PT1500A-IL-A-S2

brand : Dahua

EAN: 6923172584724

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DAHUA: DEBAJO DEL COSTE×


 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TELECAMERA BULLET STARLIGHT DAHUA - DA ESTERNO - 4IN1 COMMUTABILE - 5MP - OTTICA 2.8MM - MICROFONO - VERSIONE S2 - DAHUA

HAC-PT1500A-IL-A-S2

Made by Dahua

Telecamera Versione S2 da esterno Dahua bullet 4in1 da 5MP - PT1500A-IL-A-S2
4 Tecnologie in 1: HDCVI / HDTVI / AHD / ANALOGICA Commutabile via BNC port - Risoluzione 5Megapixel - Ottica fissa 2.8mm - Sensore CMOS da 5MP - Smart IR 4 LED 40m - Day/Night (ICR), DWDR, BLC, HLC, AGC, AWB, Mirror Mode, Privacy Masking - Microfono integrato - Materiale: plastica - Protezione IP66 per esterno.

Dettagli prodotto

HAC-PT1500A-IL-A-S2
  • Telecamera da esterno 4in1 commutabile bullet - Dahua - HAC-PT1500A-IL-A-S2
  • Versione S2
  • 4 Tecnologie in 1: HDCVI / HDTVI / AHD / ANALOGICO commutabile tramite porta BNC
  • Risoluzione: 5MP 5 Megapixel: 2880 (H) × 1620 (V)
  • Sensore d'immagine CMOS da 5MP
  • Ottica fissa 2.8mm
  • Funzioni: Day/Night(ICR), BLC, HLC, DWDR, AGC, Mirror Mode, Privacy Mask su 8 aree rettangolari
  • Illuminatore Smart IR 4 LED 40m
  • Microfono incorporato
  • 1 Uscita Video BNC alta definizione
  • Alimentatore 12V ±30% DC (non incluso)
  • Protezione IP66 (polveri / immersione), ideale per uso in esterni
  • Materiale: Plastica
  • Dimensioni: 92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12")
  • Peso: 0.39Kg
  • Garanzia 24 mesi

Scheda tecnica

HAC-PT1500A-IL-A-S2

Camera

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio

>65 dB

Min. Illumination

0.05 lux@F2.0 (Color, 30 IRE)
0.005 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

4 (Warm light);4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–90°

Lens

Lens Type

Fixed-focal

Auto Focus

No

Mount Type

M12

Focal Length

2.8 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 112°; V: 58°; D: 134°

Iris Control

Fixed

Close Focus Distance

0.9 m (2.95 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps

AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps

TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps

CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto;Area white balance

Gain Control

Auto; manual

Noise Reduction

2D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Port

Audio Interface

One channel built-in mic

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 6.4 W (12 VDC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F);<95% (RH), non-condensing

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95% (RH), non-condensing

Protection Grade

IP66

Anti-corrosion Level

Basic Protection

Structure

Casing

Plastic

Camera Dimensions

92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12")

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.64 kg (1.41 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Ulteriori dettagli

Tecnologia Quadribrida

Questa telecamera è una QUADRIBRIDA (4 Tecnologie integrate)
Queste telecamere sono allo stesso tempo, Analogiche, Ahd, Hdcvi e Hdtvi.



Switch Tecnologie:

La telecamera può switchare da HDCVI a HDTVI, AHD o Analogico tramite dip switch su Porta BNC.

Risoluzione 5.0 Megapixel (2560x1920)

Risoluzione 5MP, significa 12 volte la risoluzione di una comune telecamera D1:
Garantisce risoluzioni adeguate per qualsiasi esigenza.



Ottica fissa da 2.8mm

Illuminatore IR fino a 40mt

Illuminatore Infrarosso con 4 Led con portata massima approssimativa di 40Mt

Questa telecamera è provvista anche di tecnologia SMART IR.
Attraverso questa tecnologia la luce emessa dai LED viene adattata a seconda dell'oggetto inquadrato. Tecnologia Smart IR

Funzione DWDR

D-WDR (Digital Wide Dynamic Range) è la soluzione Software del più potente WDR integrato nel DSP, esattamente come avviene per lo zoom digital rispetto allo Zoom Ottico, è una simulazione software di emulazione della tecnologia WDR, comunque estremamente utile in circostanza di forte contrasto.

Esempio funzione Digital Wide Dynamic Range
Permette di adattare la lente alla visione Notte/Giorno

ICR L'IR CUT FILTER è un filtro meccanico che permette una corretta visualizzazione delle immagini nelle condizioni di visione diurna. Esso filtra le frequenze tipiche dell'infrarosso migliorando così la qualità dell'immagine. In condizioni notturne il filtro viene rimosso in quanto è necessario catturare le frequenze tipiche dell'IR.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) è uno dei 3 Passaggi possibili nella gestione delle immagini con Contrasto, situazioni tipiche sono (Entrate o uscite da parcheggi, Targhe, Luci particolari, Ingressi con riprese dall'interno verso l'esterno, ecc) la compensazione della luce è una delle operazioni più complesse possibili, la funzione BLC permette un discreto adattamento a queste situazioni


Clicca per Ingrandire

AGC_Camera L'AGC è un amplificatore di segnale integrato che permette la visione anche in condizioni critiche. E' automatico e non richiede settaggi specifici.
Questa telecamera presenta microfono a bordo
Questa telecamera è equipaggiata di microfono a bordo
Protezione IP66 contro polveri e immersioni Livello di protezione IP67 ( Polveri / Immersioni )


12VDC_Aliment Alimentatore 12VDC non incluso
Questo prodotto è coperto da garanzia 24 mesi italiana

Questo prodotto è coperto da Garanzia di 24 mesi.

Download

Scaricate il Depliant Inglese
HAC-PT1500A-IL-A-S2 dimensioni
