EN PROMOCIÓN
-35%
Telecamera Hikvision DS-2CD6425G1-30(2.8mm)2m IP PoE con risoluzione 2MP 2Megapixel 1080P FULL-HD e ottica esterna da 2.8mm con cavo 2metri. Sensore CMOS 1/2.8", compressione fino H.265+, Motion detection e Funzioni Smart (intrusione, attraversamento linea, perimetro, bagagli incustoditi, oggetti rimossi, etc...). WDR 120dB, ROI, BLC, HLC, Defog, 1x RJ45 Ethernet LAN, 1x Slot MicroSD (fino a 256GB non inclusa), 1x ingresso + 1x uscita audio, 1x ingresso + 1x uscita allarme, 1x RS485, chiave reset, compatibile con iVMS-4200, Hik-Connect. 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0")
BUSQUE INSTALADOR
https://www.setik.biz/es/camaras/9306-hikvision-ds-2cd6425g1-30282-telecamera-hikvision-ip-poe-2mp-full-hd-1080p-con-ottica-esterna-28mm-e-cavo-2mt.html
528,14 €
812,52 € -35%
impuestos incluidos
PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
TELECAMERA HIKVISION IP POE 2MEGAPIXEL FULL-HD 1080P - OTTICA ESTERNA 2.8MM CON CAVO 2METRI - FUNZIONI SMART
Telecamera IP PoE 2Megapixel 2MP FULL-HD 1080P / Ottica esterna 2.8mm con cavo 2metri - Hikvision
Sensore CMOS 1/2.8" / Compressione video fino H.265+ / WDR 120dB / ROI / Defog / Slot MicroSD (max 256GB - non inclusa)
Audio: 1 ingresso + 1 uscita / Allarme: 1 ingresso + 1 uscita / RS485 / RJ45 Ethernet LAN / Chiave reset

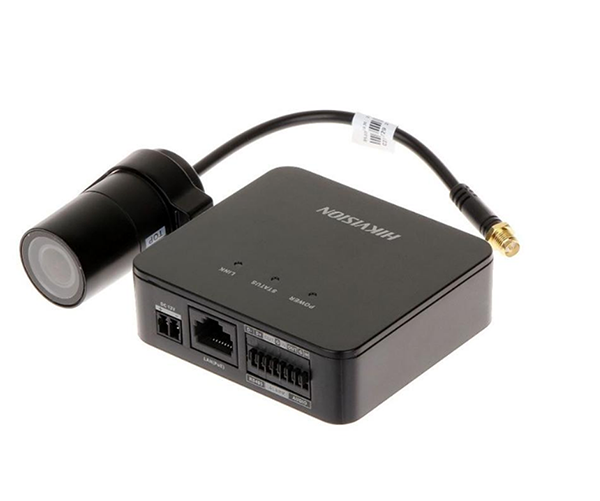

2m_SMALL%C3%B2.png "Obiettivo Dahua - DS-2CD6425G0-30(2.8mm)2m")
Dettagli prodotto
- Telecamera IP PoE con ottica esterna Hikvision
- Risoluzione 2Megapixel 2MP 1080P FULL-HD
- Ottica esterna da 2.8mm con cavo 2metri
- Sensore CMOS 1/2.8"
- Compressione fino H.265+
- Triplo stream
- Funzioni Smart: Rilevamento intrusione/attraversamento linea/ingresso e uscita perimetro/ bagagli incustoditi, rimozione oggetti/ rilevamento eccezioni audio/ rilevazione defocus/cambio scenario
- Motion detection
- ROI
- Compatibile con iVMS-4200, Hik-Connect
- Day/Night, BLC, HLC,
- Audio: 1 ingresso + 1 uscita
- Allarme: 1 ingresso + 1 uscita
- RJ45 LAN Ethernet: 1
- RS485: 1
- Slot MicroSD (fino a 256GB - non inclusa)
- Chiave reset: si
- Dimensioni: 254 mm × 164 mm × 130 mm (10" × 6.5" × 5.1")
Scheda tecnica
| Model | DS-2CD6425G1-30(2.8mm)2m |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON) |
| Shutter Time | 1/3 s to 1/100,000 s |
| Lens | |
| Focal Length & FOV | 2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | 2.8 mm: F2.0 |
| Video | |
| Main stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Video compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.265 Type | Baseline Profile/Main Profile/High Profile |
| H.265 | Main Profile |
| Bit Rate Control | CVR/BVR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of interest (ROI) | Support 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TL |
| Simultaneous Live View | Up to 15 channels |
| API | Open Network Video Interface, ISAPI, SDK, ISUP 5.0 |
| User/Host | Up to 32 users 3 level: administrator, operator, and user |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image parameters switch | Yes |
| Image settings | Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, HLC, defog, 3D DNR |
| Privacy Mask | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB |
| Audio | 1 input (line in), 1 output (line out) |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
| RS485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis |
| Smart Event | Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection, defocus detection, scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| General | |
| Power | 12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W |
| Dimension | Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0") L30: Ø 26 mm × 50 mm (Ø 1.0" × 2.0") |
| Package dimension | Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5" × 5.1") Camera: 219 mm × 139 mm × 100 mm (8.6" × 5.5" × 3.9") |
| Weight | Main body: approx. 90 g (0.2 lb.) Camera: approx. 90 g (0.2 lb.) |
| With Package Weight | Main body: approx. 456 g (1.0 lb.) Package approx. 776 g (1.7 lb.) Camera approx. 451 g (1.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese |
| General Function | One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter |
| Length of lens cable | 2 m (6.6 ft.) and 8 m (26.2 ft.) optional |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015 |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Ulteriori dettagli
2m_SCHEMA.jpg "Dimensioni DS-2CD6425G0-20(2.8mm)2m")
