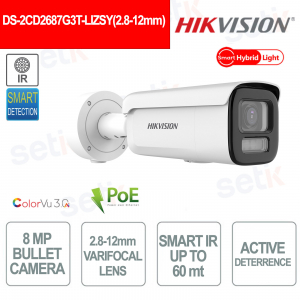

ColorVu 8MP IP POE Outdoor Bullet Camera - 2.8-12mm Lens - Active Deterrence

-35% nuevo

Hikvision ColorVu | DS-2CD2687G3T-LIZSY(2.8-12mm) - Hikvision 8MP PoE bullet outdoor IP camera , high quality 1/1.8" 0.0005Lux CMOS sensor with ColorVu technology with HIKAI-ISP for advanced noise reduction and bright F1.0 fixed lens with 2.8-12mm motorized varifocal lens. Smart white light IR up to 60m - Illuminator with White LED , 60M range - Artificial Intelligence: AcuSense Deep Learning (Face detection), Basic Video Analysis (Perimeter protection) and Active Deterrence . WDR 130dB, BLC, HLC, ROI, 3DNR, Motion Detection - Slot for 512GB MicroSD (not included), Reset button, IP67 protection for outdoors and IK10 for vandalism, metal body.

referencia : DS-2CD2687G3T-LIZSY(2.8-12mm)

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

BUSQUE INSTALADOR

https://www.setik.biz/es/camaras/11690-hikvision-ds-2cd2687g3t-lizsy28-12mm--colorvu-8mp-ip-poe-outdoor-bullet-camera-28-12mm-lens-active-deterrence.html

769,21 €

1.183,40 € -35%

impuestos incluidos

CONÈCTATE Y DESCUBRE EL PRECIO

LIQUIDACION TOTAL ×

CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

Description Product Details Technical Sheet Further Details Download

DS-2CD2687G3T-LIZSY(2.8-12mm) | HIKVISION COLORVU POE 8MP 2.8-12MM OUTDOOR WHITE LED BULLET POE IP CAMERA - ACTIVE DETERRENCE

Hikvision IP PoE Bullet Camera - DS-2CD2687G3T-LIZSY(2.8-12mm)
8MP 8 Megapixel Resolution - Bright F1.0 lens 2.8-12mm varifocal lens - 1/1.8" 0.0005 Lux CMOS sensor with with
ColorVu Technology: 24/7 color vision even at night! HIKAI-ISP for advanced noise reduction. - Triple Stream - Codec up to H.265+ - WDR 130dB, BLC, HLC, 3DNR, ROI, Motion Detection - Artificial Intelligence with Deep Learning (Face Capture), Basic Video Analytics (Perimeter Protection) and Active Deterrence - 512GB MicroSD slot (not included) - IP67 outdoor protection & IK10 vandalism protection - Metal body - Power supply not included - 24 months warranty.

ColorVu Technology:
Hikvision ColorVu technology provides 24/7 vivid and colorful images with advanced F1.0 lens and high-performance sensor. The F1.0 super aperture collects more light to produce brighter images. The advanced sensor technology can greatly improve the use of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid color details, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is F1.0 . Such a wide aperture allows it to collect a large amount of light and capture color images even in the dark.

SENSOR WITH AMAZING QUALITY
The sensor installed in ColorVu products has a sensitivity of 0.0005 Lux and has allowed a significant improvement in the quality of shooting.
Thanks to the BBAR coating and ED glass, the images delivered are free from backlight effects and with reduced light flare.

ACUSENSE TECHNOLOGY - EXTREME INTELLIGENCE
ColorVu products are also extremely intelligent thanks to the Acusense algorithm present. Reduction of false alarms.

SML TECHNOLOGY - WHITE LED ON BOARD
All cameras in this line have an integrated white LED, with many adjustable functions all adjustable during installation; from the courtesy light, to smart activation in conditions of total absence of light.

SIMPLIFIED COMMISSIONING
Thanks to the 4 pre-configured profiles and the possibility of creating two custom ones, ColorVu products allow for easy installation for industry professionals.

POE (Power Over Ethernet):

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

Resolution:

This camera features a resolution of 8MP ( 3840 × 2160 pixels)

Bright lens:

This camera features a bright F1.2 aperture lens and 2.8-12mm motorized varifocal lens.
The camera will collect much more light ensuring color shots even in the dark.

Advanced Sensor and ColorVu Technology:

Thanks to the sensitivity of the sensor (0.0005 Lux) , the BBAR coating and the ED glass , this camera is able to provide images without those annoying backlight effects. The details captured are vivid in color and in high definition even in low light conditions . It will be easier to recognize the characteristics of a person or a car/license plate

H.265+ compression

What is H.265+?

A self-developed intelligent algorithm by Hikvision that can significantly reduce video bitrate based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bitrate control. Optimized for multiple surveillance scenarios, it enables more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator | White Light:

With the additional white light on board , the camera is able to provide images with more vivid colors even in total darkness.
There are many adjustable functions: from the courtesy light to smart activation in conditions of total absence of light.

Range 60M

This camera also features SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted depending on the object being framed.
Tecnologia Smart IR

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI

Day/Night:

It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

MICRO SD SLOT:

512GB Micro SD Slot ( NOT INCLUDED )

BLC (Back Light Compensation):

It is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations

Click to Enlarge

AGC (Automatic Gain Control):

integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:

More advanced version of NOISE REDUCTION management. It allows still images both in low light and in motion. The most powerful solution currently available for obtaining maximum results in low light.

Diet:

To operate this camera, a 12V DC power supply is required (not included)

IP67 & IK10 Protection:

Dust, temporary immersion and vandalism protection. Suitable for outdoor environments.

Technical data sheet

DS-2CD2687G3T-LIZSY(2.8-12mm)
Room
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type	Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV	horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens Mount	Integrated
Iris Type	Fixed
Openings	F1.2
Depth of Field	1m to ∞
Illuminator
Supplement Light Type	IR, White Light
Light Range Supplement	Up to 60 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream	50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) 60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) *The third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bitrate	32Kbps to 8Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bitrate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Audio
Audio Type	Mono sound
Audio Bitrate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate	8kHz/16kHz/32kHz/48kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client	iVMS-4200,Hik-Connect,Hik-Central
Web Browser	Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
SNR	≥ 52dB
Wide Dynamic Range (WDR)	130dB
Image Stabilization	IIS
Privacy Mask	4 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Smart Event	Scene change detection
Deep Learning Function
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power	12 VDC ± 25%, 1.08 A, max. 13 W Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: PoE(IEEE 802.3at class 4)，MAX：15W
Material	Front cover: metal, body: metal, bracket: metal

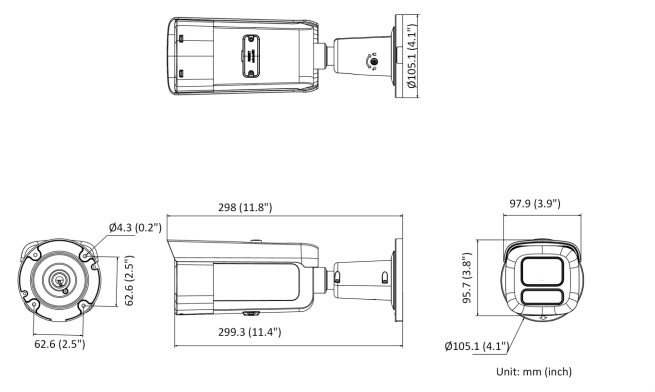

Dimensions	298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")
Package Size	386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight	Approx. 1520 g (3.4 lb.)
With Package Weight	Approx. 2326 g (5.1 lb.)
Storage conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU
Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)
