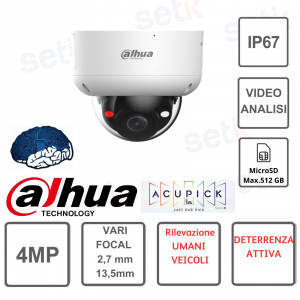

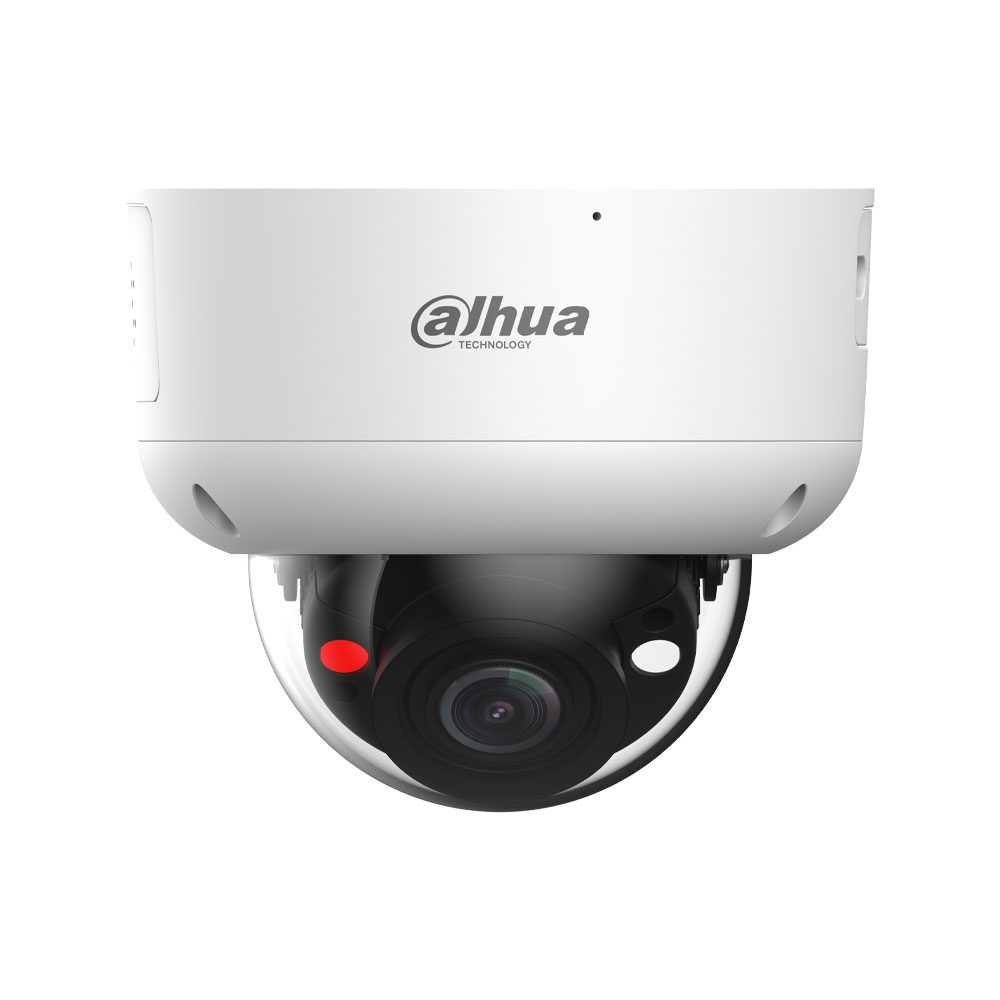

Dome IP Camera - Active Deterrence - 4MP - Varifocal 2.7-13.5mm

IPC-HDBW3449R1-ZAS-PV-S5 Outdoor ONVIF PoE IP Camera - WizSens and 4MP - Smart Dual Light - 2.7-13.5mm motorized lens - 1/2.7" CMOS - H.265+ Codec - Triple Stream - Double illumination: IR 50m warm light 40m - Day/Night (ICR) - WDR 120dB , 3D NDR, HLC, BLC, Defog, ROI - Motion Detection - Artificial intelligence with IVS, Intelligent Search and SMD 4.0 - AcuPick-Slot MicroSD 512GB (not included) - Microphone and speaker - Audio - Alarm - IP67 and IK10 - Active deterrence (light + siren) - Made of metal.

referencia : IPC-HDBW3449R1-ZAS-PV-S5

brand : Dahua

BUSQUE INSTALADOR

BLACK WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code BLACK-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 2/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

ONVIF® POE OUTDOOR IP CAMERA - 4 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE - 2.7-13.5MM MOTORIZED LENS - DAHUA - IPC-HDBW3449R1-ZAS-PV-S5 - S5 VERSION

ONVIF® PoE 4MP IP Camera - WizSense Dahua - IPC-HDBW3449R1-ZAS-PV-S5 4MP resolution - 2.7-13.5mm lens - 1/2.7" CMOS - Smart Dual Light - Triple Stream - H.265+ Codec IR 50m + warm light 40m - Day/Night (ICR) - WDR 120dB, 3D NDR, ROI, HLC, BLC, Defog - Artificial intelligence: Perimeter protection, Smart Search and SMD 4.0 - 1in/1out alarm - 1in/1out audio - AcuPick-MicroSD slot (Max.512 - Not included ) - IP67 and IK10 protection - Integrated microphone and speaker - Made of metal - Active deterrence (lights and siren) - Ideal for outdoors.

Product details

• Onvif PoE outdoor IP camera
• Resolution 4Megapixel 4MP
• 2.7-13.5mm optics
• 1/2.7" CMOS sensor
• Smart Dual Light
• Video compression up to H.265+
• Triple Stream
• WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC, Defog, ROI, Mirror Mode, Privacy Masking
• IR illuminator 50m
• 40m warm light illuminator
• Active deterrence with red and blue lights and siren
• AcuPick Dahua AcuPick technology is a video search engine that uses both front-end and back-end artificial intelligence to quickly locate the information you need. You can use it to find a lost person, locate a specific vehicle, or retrieve video evidence needed to report an accident • Two-way audio with built-in microphone and speaker
• Audio 1in/1out
• 1in/1out alarm
• Artificial Intelligence: Perimeter Protection, Smart Search, SMD 4.0
• Micro SD memory slot (Up to 512GB - not included)
• IP67 protection (indoor/outdoor)
• IK10 protection against vandalism
• Material: Metal
• Weight: 0.73 kg
• Dimensions: 105mm × Φ126.0mm
• Operating temperature: –30 °C to +60 °C
• Power supply NOT included
• 24 month warranty

Technical data sheet

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

> 56 dB

Illumination Distance

Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ16

Focal Length

2.7mm–13.5mm

Max. Openings

F1.0

Field of View

H: 103°–33°
V: 54°–18°
D: 124°–38°

Iris Control

Fixed

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

65.2 m (213.91 ft)

26.1 m

(85.63 ft)

13.0 m

(42.65 ft)

6.5 m

(21.33 ft)

186.6 m (612.20 ft)

74.6 m

(244.75 ft)

37.3 m

(122.38 ft)

18.7 m

(61.35 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

TO THE SSA

Adopt deep learning algorithms to adjust the parameters

of the image to suit the conditions.

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520@ (1 fps–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream:1920 × 1080@ (1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bitrate Control

CBR/VBR/ABR

Video Bitrate

H.264:3kbps–16384kbps
H.265:3kbps–16384kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Lighting

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes; built-in dual Mic

Built-in Speaker

Yes; built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G; Profile T); CGI

User/Host

20 (Total bandwidth: 64M)

Storage

FTP; SFTP; Micro SD card (support max. 512GB); NAS

Browser

IE: IE 9/11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directive
2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

AlarmOutput

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12VDC/PoE (802.3af)

Power Consumption

Basic: 2.8W (12VDC); 3.6W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 7.9 W (12 VDC); 9.2W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

105mm × Φ126.0mm (4.13" × Φ4.96")

Net Weight

0.73 kg (1.61 lb)

Gross Weight

0.9kg (1.98lb)

Further details

	This camera is Onvif compatible: All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems
	PoE (Power Over Ethernet): The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
	This camera features the INTELLIGENT FUNCTION: - Perimeter protection - Smart search - SMD 3.0
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	Resolution: This camera has a resolution of 4Mpx
	Optics: This camera features a 2.7-13.5mm motorized varifocal lens!
	Active deterrence: Alerts intruders with siren, sound alarms and blue and red lights.
	Stream: Main stream: 2688 × 1520@ (1 fps–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@ (1 fps–25/30 fps)
	IR: Quality IR illuminator (2X IR LEDs) for better night vision. Maximum range up to 50m!
	Dahua AcuPick technology is a video search engine that effectively uses AI, both front-end and back-end, to quickly locate the information you need. Use it to find a lost person, locate a specific vehicle, or find video evidence needed to report an accident.
	WDR 120dB (Wide Dynamic Range): It is the professional solution in cases where you have to work in conditions of high light/shadow contrast. Fundamental in case of shooting from the inside towards the outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	Day/Night: Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	IR cut filter: The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	This camera features: 1 Audio Input and 1 Audio Output.
	This Camera Features: 1 Alarm Input and 1 Alarm Output.
	Microphone on board.
	BLC (Back Light Compensation): It is one of the 3 possible steps in managing images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) light compensation is one of the most important operations complex as possible, the BLC function allows for a fair amount of adaptation to these situations Click to Enlarge
	ROI: The images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure low bandwidth usage and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring greater definition. of the image.
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism.
	Possibility to insert MicroSD Card up to a maximum of 512Gb - memory card not included
	12V DC power supply (NOT included)
	This product is covered by a 24 month warranty.
