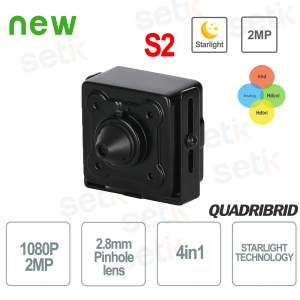

HAC-HUM3201B-P Dahua mini indoor camera ideal for hiding S2 Series , with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG , 1080P 2MP FULL HD resolution, 2.8mm PINHOLE fixed lens and 1/2.8” CMOS sensor with Starlight technology. Day/Night, audio, OSD, AGC, BLC, HLC, WDR 120dB. Small size, metal.
BUSQUE INSTALADOR
DAHUA MINI CAMERA 4IN1 HDCVI / HDTVI / AHD / ANALOG FULL HD 1080P - PINHOLE - STARLIGHT - DAHUA
Mini Indoor Camera - Dahua
2MP 1080P FULL-HD Resolution / 2.8mm Pinhole Fixed Lens
4 Technologies in 1: HDCVI/HDTVI/AHD/ANALOG - CMOS sensor with Starlight technology!
Small size - Ultra WDR 120dB - 24 Months Warranty
Product details
- Mini Camera - Dahua
-
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
- Technologies switchable via OSD Menu or UTC Controller (not included)
- Resolution 2Megapixel 1080P FULL-HD (Max 25/30fps@1080P, 25/30fps@720P)
- Fixed optics 2.8mm PINHOLE optics
- 1/2.8" CMOS image sensor with Starlight technology!
- Starlight Technology: Color vision even in night mode!
- Day/Night, audio, BLC, AGC, HLC
- WDR 120dB
- Multilingual OSD Menu
-
- 1 BNC Video Output High Definition / CVBS Video Output (Can switch)
- Suitable for indoor environments (NO IP66)
- Without IR illuminator
- Small size: 36.2 x 43.5 x 32.3 mm - Ideal for hiding anywhere
- Power supply 12V DC
- 24 month warranty
Technical data sheet
| Model | HAC-HUM3201B-P | |
| Room | ||
| Image Sensor | 1/2.8" CMOS | |
| Effective Pixels | 1920(H) × 1080(V), 2MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed |
PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s |
|
| Minimum Illumination | Color: 0.004LuxLux/F2.4, Black & White: 0.0004LuxLux/F2.4 | |
| Y/N Ratio | More than 65dB | |
| Lens | ||
| Lens Type | Fixed focal | |
| Mount Type | M12 | |
| Focal Length | 2.8mm | |
| Max openings | F2.4 | |
| Angle of view | 117.9° × 103° × 59° (diagonal x horizontal x vertical) | |
| Iris Type | Fixed iris | |
| Close Focus Distance |
0.5 m (1.6 ft) |
|
| Video | ||
| Frame Rate | CVI: PAL: 1080P@25fps, 720P@25/50fps NTSC: 1080P@30fps, 720P@30/60fps AHD: PAL: 1080P@25fps, 720P@25fps NTSC: 1080P@30fps, 720P@30fps TVI: PAL: 1080P@25fps, 720P@25ps NTSC: 1080P@30fps, 720P@30ps CVBS: PAL: 960 × 576H NTSC: 960 × 480H |
|
| Resolution |
1080P (1920×1080); 720P (1280×720); 960H (704 × 576/704 × 480) |
|
| Day/Night | Auto switch by ICR | |
| BLC Mode | BLC/HLC/WDR | |
| WDR | 120dB | |
| White Balance | Car; manual | |
| Gain Control | Auto;Manual | |
| Noise Reduction | 3D NR | |
| Smart IR | Yes | |
| Electronic Defog | Yes | |
| Digital Zoom | 4 × | |
| Mirror | Off/On | |
| Privacy Masking | Off/On | |
| Certifications | ||
| Certification |
CE (EN55032, EN55024, EN50130-4,EN60950-1) |
|
| Port | ||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Audio Output | One channel, RCA sound pick-up port | |
| Power | ||
| Power Supply | 12V ±30% DC | |
| Power Consumption | Max 2.11W | |
| Environmental | ||
| Operating Temperature | -30°C to +60°C (-22°F to 140°F);<95% (non-condensation) | |
| Storage Temperature | -30°C to +60°C (-22°F to 140°F);<95% (non-condensation) | |
| Protection Grade | N/A | |
| Construction |
||
| Casing |
Metal throughout the whole casing |
|
| Dimensions |
43.5 mm × 36.2 mm × 29.5 mm (1.71" × 1.43" × 1.16") |
|
| Net Weight |
0.04 kg (0.09 lb) |
|
| Gross Weight |
0.14 kg (0.31 lb) |
|
Further details
 |
This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time, Analog , AHD , Hdcvi and Hdtvi .    |
 |
This camera features a 2.8mm fixed lens Pinhole Optics:  |
|
|
1/2.8" CMOS sensor with STARLIGHT technology. Low brightness, visibility at 0.004LuxLux/F2.4, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Back-illuminated structure with 2.9 µm-square unit pixel - High sensitivity (twice or more times greater than other products on the market) - Increased sensitivity when near an area covered by infrared light - Support WDR (Multiple exposure WDR, DOL-WDR) - Versatile Interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor, you can get color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color
|
|
|
OSD (ON SCREEN DISPLAY) menu allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD menu is multi-lingual Multi-Technology: The camera can switch from HDCVI to HDTVI, AHD or Analog via OSD Menu or DAHUA UTC controller (not included). |
|
|
This camera is suitable for indoor environments. Not equipped with IP66 protection! |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 |
It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically |
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations |
 |
3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light. |
 |
12V DC connector, <120MA, just connect the power supply  |
 |
This product is covered by a 24 month warranty. |
