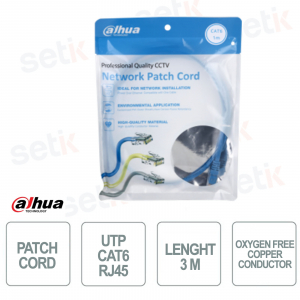

PATCH CORD CAT6 RJ45 3 METERS - DAHUA - PFM972-6U-3
PFM972-6U-3 - CAT6 RJ45 Patch Cord, Length 3 Meters PVC Material. Color Yellow, Blue or Gray. Diameter 6.0mm±0.40mm, Tensile Strength ≥9MPa. Made of 99.97% Oxygen-Free Copper - Dahua
Product details
- UTP CAT6 RJ45 patch cord - Dahua - 6.0mm±0.40mm
- Cable length 3 meters
- Conductor in OFC (Oxygen Free Copper 99.97%)
- PVC sheath
- Color: yellow, blue or grey
- Diameter: 6.0mm±0.40mm
- Product excluded from warranty
Technical data sheet
| Model | PFM972-6U-3 |
| Conductor | |
| Material | OFC(99.97% copper) |
| Gold Plating Thickness | 3μin (0.0762μm) of gold and 80μin (2.032μm) of nickel |
| Diameter | 24AWG 4P |
| Structure | 7*0.20mm±0.01mm(7*0.007"±0.0004") |
| Insulation | |
| Material | HDPE |
| Diameter | 0.9mm±0.05mm(0.03"±0.0019") |
| Color | Blue-white/blue, orange-white/orange, green-white/green, brown-white/brown |
| Elongation at break | ≥100% |
| Strippability | No damage to insulation and conductors |
| Separator | |
| Separator | Yes |
| Sheath | |
| Material | PVC |
| Diameter | 6.0mm±0.40mm(0.23"±0.0157") |
| Color | Yellow, blue, gray |
| Tensile Strength | ≥9MPa |
| Elongation At Break | ≥100% |
| Structure | |
| Cable Length | 3m (9.84 ft) |
| Wire Diameter | 24 to 26 AWG |
| Plug and unplug times | ＞750 times |
| Working temperature | -20°C to +70°C(-4°F to 158°F) |
| Packaging Method | 1pc in 1 bag, 120 bags in 1 box |
| Packaging Dimensions | 410mm×270mm×380mm(16.14"×10.62"×14.96”) |
| Gross Weight | 130kg(286.60lb) |
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
