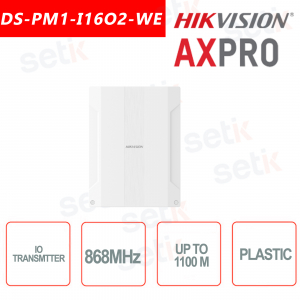

Hikvision AXPro 12in/20out wireless Multi IO transmitter

Hikvision AXPro 12in/20out wireless Multi IO transmitter
ANUNCIOS -35%

AXPRO HIKVISION

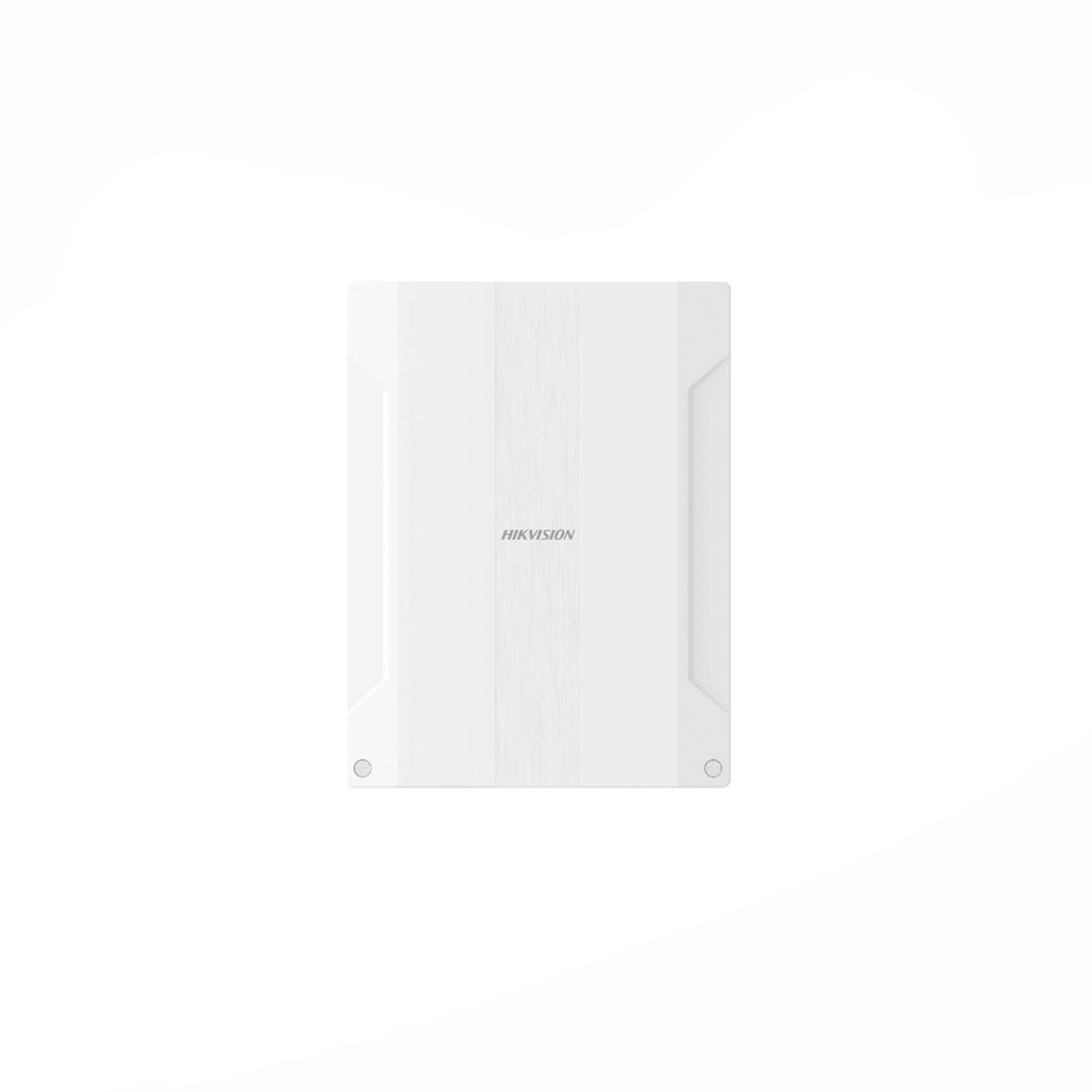

DS-PM1-I16O2-WE Hikvision AXPro Wired/Wireless Multi-IO Transmitter, 16 Wired Inputs and 2 OC Outputs. Manages third-party wired sensors so they can work with the AX PRO alarm system. Power supply for 12Vdc 1A detectors. Wireless range: 1100m. 3 status LEDs, Tamper protection, Power supply 100-240Vac 30W, Housing for 7Ah buffer battery, Battery life up to 36H, Dimensions 261.10 x 199.10 x 86.40mm




referencia : DS-PM1-I16O2-WE

brand : Hikvision

BUSQUE INSTALADOR

220,45 €

339,16 € -35%
impuestos incluidos
IVA incl.
 Disponible en 5 dà­as
 dal


AXPro Alarms Hikvision

Hikvision AXPro Alarms

DS-PM1-I16O2-WE - HIKVISION MULTI IO TRANSMITTER WIRED/WIRELESS

Hikvision DS-PM1-I16O2-WE AXPro Wired/Wireless Multi-IO Transmitter, 16 Wired Inputs and 2 OCG OutputsManages third-party wired sensors so they can work with the AX PRO alarm system. 2 Power Outputs for 12Vdc 1A detectors. Wireless Range: 1100m. 3 Status LEDs, Tamper Protection, Power Supply 100-240Vac 30W, Housing for 7Ah Backup Battery Dimensions 261.10 x 199.10 x 86.40mm

DS-PM1-I16O2-WE



DS-PM1-I16O2-WE Hikvision AXPro Multi IO Wired/Wireless Transmitter, 868MHz Frequency, 16 Wired Inputs and 2 OC Outputs,
Wireless Range: 1100m


Main features

- Two-way wireless communication frequency: 868MHz
- Manages third-party wired sensors so they can work with the AX PRO alarm system.
- LED display, shows the real status of the device
- With 16 inputs and 2 outputs on board, it can be applied to connect wired detectors
- With two 12v power outputs, it can be used to power external wired detectors
- Distance: 1100m
- Digital Process: Supported
- Tamper protection

Documentation: Brochure

DS-PM1-I16O2-WE
Detection Performance
End Of Line Resistance 1k 2.2k 4.7k 8.2k
NO/NC
SerialPort 1
Battery Port 1, 12VDC input
Tamper Proof Front and rear
Power Switch 1
Alarm Input 16
AlarmOutput 2
Power Output 2 (12v, total 1A)
Battery Type Compatible with 12v 7Ah
150 × 64 × 94 mm
Power Supply 100-240VAC,30w
Operation Humidity 10%~90%
Operation Temperature –10 ~ 40°C
Power Consumption Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)

220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
Battery Lifespan Up to 36 hours
RF Frequency 868MHz
RF Method Two-way communication
RF Modulation 2GFSK
RF Distance 1100m
Indicator 3: Power(Green), Fault(Amber), Signal Strength(Green/Red)
Installation Method Wall Mounting
Dimensions(WxHxD) 261*199*86.4mm
Shell Material Plastic
Color White
weight 975g (without battery)
3024g (with battery)

AXPRO HIKVISION ALARMS VS AJAX ALARMS. Read our blog article !

AXPRO SYSTEM - BEYOND SAFETY

AXPro is the new intelligent and professional wireless system with the latest generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as Video Surveillance, Video Intercom and Access Control. It also supports metadata from AcuSense devices and Heat Pro Thermal Cameras. AXPro boasts a simple, intuitive programming interface suitable for both a professional public and end users.

axpro hikvision alarm system

Simple and intuitive programming

Thanks to the Hik-ProConnect software dedicated to the installer and available both on the portal and in the APP version, the system configuration will be extremely simple. The control unit immediately recognizes the radio devices via the Hik-ProConnect APP thanks to the QR Code scanning. Manual activities and installation times are decidedly optimized. After configuring the detectors and accessories, it will be possible to proceed with programming their parameters and delivering the system to the user.



Management via APP: Hik-ProConnect and Hik-Connect

Hikvision AXPro alarms are compatible with the Official Hikvision APPs Hik-ProConnect , dedicated to installers and Hik-Connect , for end users.

Hik-ProConnect:
Cloud platform designed specifically for installers.
- Time optimization
- Add devices remotely or on-site
- Simplified programming
- Creation of specific rules for the system
- Remote system monitoring
- Identification of any malfunctions and immediate resolution
- Sending automatic reports
- Reduced plant visits and increased efficiency

Hik-ProConnect: Cloud platform designed specifically for end users.
- Complete management of all Hikvision devices / products
- View system status
- Arming/disarming the alarm
- Receive alarm notifications wherever you are
- Monitoring the status of each individual device [signal level, battery status, ambient temperature]

Download

Download the brochure Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
