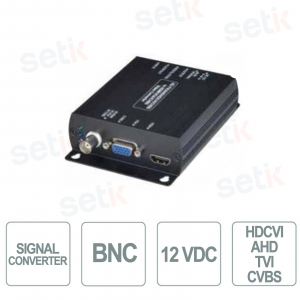

AD001HDE Video signal converter with BNC input for HDCVI, CVBS, AHD, TVI signals HDMI, VGA, CVBS outputs. Dahua
BUSQUE INSTALADOR
VIDEO SIGNAL CONVERTER - BNC INPUT - HDCVI/CVBS/AHD/TVI - HDMI/VGA/CVBS OUTPUTS
AD001HDE Video signal converter with BNC input for HDCVI, CVBS, AHD, TVI signals HDMI, VGA, CVBS outputs
Product details
- Video Signal Converter with BNC Input - Dahua
- HDCVI/AHD/TVI/CVBS video formats
- HDMI, VGA, CVBS outputs
Technical data sheet
| Model | AD001HDE |
| Technical specifications | |
| Video input | HD-TVI / AHD / HDCVI 720p@25/30/50/60Hz 1080p@25/30Hz NTSC PAL 960H |
| Input connector | BNC (75Ω 1Vpp) x 1 |
| Loop Connection | BNC (75Ω 1Vpp) x 1 |
| Output Interface | HDMI Type-A x 1 D-SUB 15 x 1 BNC (75Ω 1Vpp) x 1 |
| Switch | Tact Switch x 2 |
| Power consumption | 250mA (Max) |
| Power supply | DC12V 500mA |
| Temperature | Operation: 0 to 55°C Box: -20 to 85°C Humidity: Up to 95% |
| Dimensions mm |
88 x 130 x 30 |
| Weight g |
270 |
Further details
Download
Brochure not available
