HAP100 - Indoor Omnidirectional Pinhole Microphone -40dB Range 5~40m2, 30KV Air Contact ESD, Built-in Lightning Protection, Power Reverse Polarity Protection and Electrostatic Protection. Power Supply 12VDC. - Dahua
BUSQUE INSTALADOR
INDOOR PINHOLE MICROPHONE - RANGE 5~40 M2 - 12 VDC - DAHUA

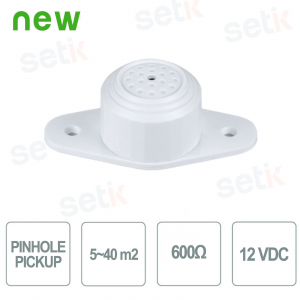

Omnidirectional Pinhole Microphone - Dahua
Indoor microphone range 5~40m2, 30KV air contact ESD, built-in lightning protection, power reverse polarity protection and electrostatic protection. Power supply 12VDC
Dimensions 63mm x 30mm x 22mm
Indoor microphone range 5~40m2, 30KV air contact ESD, built-in lightning protection, power reverse polarity protection and electrostatic protection. Power supply 12VDC
Dimensions 63mm x 30mm x 22mm
Product details
Omnidirectional Pinhole Microphone - Dahua
Indoor microphone range 5~40 m2
-40db
Lightning and electrical protection
Power supply 12 VDC
Size 63mm x 30mm x 22mm (2.48" x 1.18" x 0.87")
Size 63mm x 30mm x 22mm (2.48" x 1.18" x 0.87")
Weight 34 g
White color
Quality product
Quality product
Technical data sheet
| Model | HAP100 |
| General | |
| Scope | 5-40m2 |
| Sensitivity | -40dB(-45~-20dB adjustable) |
| Frequency response | 20Hz～20kHz |
| Directional characteristic | Omnidirectional |
| SNR |
70dB(1m 40dB sound source SPL) |
| Dynamic range | 104dB(1KHz at Max dB SPL) |
| Max. sustainable sound pressure | 120dB SPL(1KHz, THD 1%) |
| Output impedance | 600Ω (non-equilibrium) |
| Output signal amplitude | 2.5Vpp/-25dB |
| Microphone | Plated film capacitor microphone head |
| Working voltage | DC 12V(9~15V) |
| Working current | 60mA(50~100mA) |
| Working temperature | -30ºC~+70ºC(-22℉~+158℉) |
| Color | White |
| Outer shell | PC |
| Dimensions | 63mmx30mmx22mm(2.48”x1.18”x0.87”) |
| Weight | 34g(0.07lb) |
| Certification | CE/FCC |
Further details
Download
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
