The TP-Link Omada SM9220-1M is a 1 meter Direct Attach Cable (DAC) , designed for high-speed connections between switches and servers. With reliable performance and low latency , it ensures fast and efficient data transfer, ideal for enterprise networks and data centers . Compatible with Omada devices, it offers a cost-effective and stable solution for advanced network infrastructure.
BUSQUE INSTALADOR

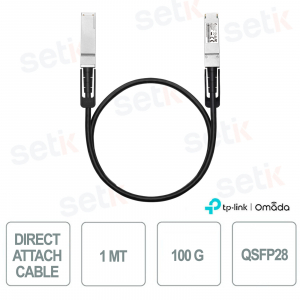

1 METER DIRECT CONNECT CABLE 100G - QSFP28 - TPLINK OMADA
The TP-Link Omada SM9220-1M is a QSFP28 Direct Attach Cable (DAC) designed for ultra-high-speed connections, providing data transmission of up to 100Gbps with ultra-low latency. With QSFP28 connectors on both sides, it ensures maximum compatibility with high-end switches and servers, ideal for enterprise networks and data centers.
With a transmission distance of up to 1 meter and high efficiency, it is a reliable and cost-effective solution for direct connections between devices. The hot-swappable design allows for seamless replacement, while the wide operating temperature makes it suitable for even the most demanding environments.
Main features:
- Data transmission up to 100 Gbps, ideal for high-speed connections
- QSFP28 connector on both sides, compatible with high-end switches and servers
- Transmission distance up to 1 meter, perfect for data centers and enterprise networks
- Hot-swappable for flexible, seamless management
- Wide operating temperature, suitable for different professional environments
Technical data sheet
| Model | SM9220-1M |
| GENERAL | |
| Product Dimensions | Plug: 2.85*0.72*0.53 in (72.45*18.35*13.50 mm); Overall length: 39.37 in (1,000 mm) |
| SFP28 CABLE | |
| Environment | Operating Temperature: 0–70℃ (32–158℉) Storage Temperature: -40–85℃ (-40–185℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Supported Data Rate | 100Gbps / 40Gbps |
| Conductor | Silver Plated Copper |
| Wire Gauge | 30AWG |
| Minimum Bend Radius | 33mm |
| Cable Length | 1 m |
|
2 year warranty The following product is covered by a 2 year warranty |
