The TP-Link Omada SG6428XHP is a high-performance Layer 3 PoE++ managed switch ideal for business and professional networks. Equipped with 24 Gigabit PoE++ ports and 4 x 10Gbps SFP+ slots , it provides high power for PoE devices, ultra-fast connectivity and advanced management . Integrated with Omada SDN , it supports web-based cloud management and Omada app for optimal remote control.
BUSQUE INSTALADOR

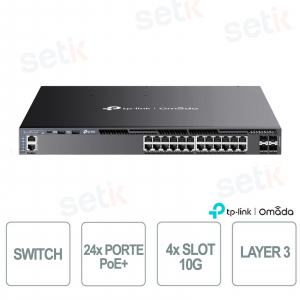

SWITCH 24 POE+ PORTS & 4 SLOT 10G MANAGED L3 - TPLINK OMADA
The TP-Link Omada SG6428XHP is a Layer 3 PoE++ managed switch designed for businesses, offices and network infrastructures that require high PoE power, ultra-fast connections and advanced management. Equipped with 24 Gigabit RJ45 PoE+ ports and 4 10Gbps SFP+ slots, it ensures fast and reliable transmissions, perfect for PoE devices such as access points, IP cameras and VoIP phones.
With a PoE power budget of up to 720W, the switch can power a wide range of network devices, reducing the need for external power supplies. Physical stacking provides scalability, redundancy, and improved performance, ensuring a stable and operational network.
Advanced Layer 3 features, including RIP, OSPF, ECMP, VRRP, PIM-DM and DHCP Server/Relay, optimize network traffic management, improving data distribution and business network efficiency. Security is ensured by ACL, Port Security, DoS Defend and 802.1X authentication, protecting the network from unauthorized access and cyber threats.
For maximum reliability, the switch integrates dual field-replaceable power supplies, as well as support for VRRP and ERPS, offering automatic failover and advanced redundancy for continuous uninterrupted operation.
Management is simplified through integration with Omada SDN, which enables centralized and scalable cloud management, accessible remotely via web and Omada app. In addition, the switch supports standalone management via web interface, CLI, SNMP and RMON, ensuring configuration flexibility for any network need.
Main features:
- High-performance connectivity: 24 Gigabit RJ45 PoE+ ports to power access points, IP cameras and VoIP phones, 4 10Gbps SFP+ slots for ultra-fast and scalable connections and high switching capacity to ensure smooth and bottleneck-free traffic
- Advanced PoE Power: PoE power budget up to 720W, ideal for business networks with PoE++ devices and centralized power supply to reduce the need for external adapters
- Advanced reliability and redundancy : Physical stacking for scalability and business continuity, dual field-replaceable power supplies for maximum safety and stability, and VRRP and ERPS support for advanced redundancy and automatic failover
- Layer 3 Advanced Features : Support for RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay to optimize network traffic management and advanced routing for a more efficient and stable network
- Maximum security and network protection : ACL (Access Control List) for advanced traffic control and Port Security, DoS Defend and 802.1X authentication to prevent unauthorized access
- Smart and Centralized Management: Omada SDN for Scalable Cloud Management and Remote Monitoring, Web Access and Omada App for Remote Control Anywhere and Standalone Management via Web Interface, CLI, SNMP and RMON
- Ideal for Business and Data Centers: Perfect for offices, hotels, data centers and environments with high demand for PoE connectivity and high scalability and reliability for a secure and high-performance network infrastructure.
Technical data sheet
| Model | SG6428XHP |
| HARDWARE FEATURES | |
| Interface | 24× 10/100/1000 Mbps PoE+ RJ45 Ports 4× 10G SFP+ Slots 2× USB 2.0 Ports 1× RJ45 Console Port 1× USB Type-C Console Port 1× RJ45 Management Port |
| Number of fans | Four field-replaceable and hot-swappable fans |
| Diet | Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase. |
| PoE ports | Standard: 802.3at/af compliant PoE+ Ports: 24 Ports, up to 30 W per port PoE Power Budget: up to 720W* The total PoE budget varies with the power supply modules. |
| Dimensions (L x W x H) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Mounting type | Rack Mountable |
| Max Power Consumption | 42.9 W (110 V/60 Hz) (With no PD connected) 916.6 W (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| Max Heat Dissipation | 146.29 BTU/hr (110 V/60 Hz) (With no PD connected) 63125.61 BTU/hr (110 V/60 Hz) (With 1440W PD connected and powered by 2× PSM900-AC) |
| PERFORMANCES | |
| Switching capacity | 128 Gbps per Unit |
| Stacking | Stacking Number: 4 Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) Stack Bandwidth: Up to 80 Gbps (4 stack ports) |
| Packet Forwarding Rate | 95.2 Mpps |
| ARP Table | 32K |
| Buffers (packets) | 3 MB |
| Jumbo frame | 9 KB |
| SOFTWARE FEATURES | |
| QoS (Quality of Service) | Class of Service 8 Priority Queues Port Priority IEEE 802.1p Priority DSCP Priority Queue Min-Bandwidth Schedule Mode (SP, WRR, SP+WRR) Bandwidth Control Rate Limit Strom Control VoiceVLAN User Defined OUI Smoother Performance Action for Flows QoS remark (802.1P Remark, DSCP Remark) |
| L3 Features |
IP Interfaces |
| L2 and L2+ functionality |
Link Aggregation |
| Advanced Features | Automatic Device Discovery BatchConfiguration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features 802.3ah Ethernet Link OAM L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) DDM sFlow |
| VLAN | Max 4K VLAN Group (802.1q VLAN) 802.1Q Tagged VLAN MAC VLAN entries: 200 Multicast VLAN VLAN Management VLAN VPN (QinQ): Max 256 entries GVRP Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries VLAN-VPN VLAN Mapping VLANReplace VoiceVLAN Private VLAN |
| Safety | Port Isolation CPU Defend ARP Inspection (Dynamic ARP Inspection) DoS Defense IP-MAC-Port Binding 1,024 Entries DHCP Snooping ARP Inspection IPv4 Source Guard IPv6 MAC Port Binding 1,024 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard DHCP Filter Static/Dynamic Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unknown-unicast Storm Control kbps/ratio control mode 802.1X Port base authentication Mac basic authentication VLAN Assignment MAB GuestVLAN Support RADIUS authentication and accountability AAA (including TACACS+) Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv2 IP/Port/MAC based access control |
| MANAGEMENT | |
| Omada App |
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.n |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Web-based GUI Command Line Interface (CLI) through console port, telnet SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9 groups) SDM-Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP Auto Install Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics Password Recovery SNTP System Log EEE |
| OTHER | |
| Package Contents |
SG6428XHP Switch |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters 5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
Functionality |
|
|
Power over Ethernet compliant with IEEE 802.3at/af standards The 24 IEEE 802.3at/af compliant PoE ports provide a total power budget of up to 720W for powering 802.3at and 802.3af devices,* and each port can deliver up to 30W of power. This helps optimize the installation costs and facilitate the connection of wireless access points, video surveillance cameras, IP phones and other PoE devices. |
|
|
High-speed Connections and Powerful Stacking |
|
|
Advanced Layer 3 Features |
|
| High Reliability
Optional redundant, field-replaceable, hot-swappable power supplies and VRRP make it the ideal choice for a reliable network architecture.** ERPS supports rapid protection and recovery in a ring topology. |
|
|
Advanced security features |
|
|
Omada SDN
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
