Dahua outdoor camera HAC-PT1509A-A-LED-S2 S2 version 5MP 5 Megapixel with 4 technologies in 1: HDCVI / HDTVI / AHD / Analog Switchable via BNC port , 3.6mm fixed lens and 5MP CMOS sensor - Smart IR illuminator 4 LEDs 40MT, Day/Night (ICR), BLC, HLC, DWDR, WDR 120db Built-in microphone , IP66 protection for outdoor use - Made of plastic - Dahua Technology.
FIND INSTALLER

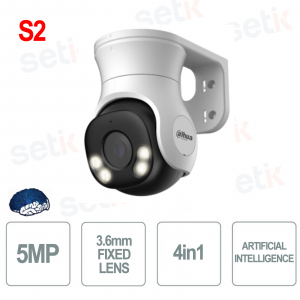

DAHUA PT CAMERA - OUTDOOR - SWITCHABLE 4IN1 - 5MP - 3.6MM LENS - MICROPHONE - S2 VERSION - DAHUA
HAC-PT1509A-A-LED-S2
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG Switchable via BNC port - 5Megapixel Resolution - 3.6mm fixed lens - 5MP CMOS sensor - Smart IR 4 LEDs 40m - Day/Night (ICR), WDR, BLC, HLC, AGC , AWB, Mirror Mode, Defog, Privacy Masking, WDR 120db - Integrated microphone - Material: plastic - IP66 protection for outdoors.
Product details
- 4in1 switchable bullet outdoor camera - Dahua - HAC-PT1509A-A-LED-S2
- S2 version
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable via BNC port
- Resolution: 5MP 5 Megapixel: 2880 (H) × 1620 (V)
- 5MP CMOS image sensor
- 3.6mm fixed lens
- Functions: Day/Night(ICR), BLC, HLC, WDR 120db, AGC, Mirror Mode, Defog, Privacy Mask on 8 rectangular areas
- Smart IR illuminator 4 LEDs 40m
- Built-in microphone
- 1 high definition BNC video output
- 12V ±30% DC power supply (not included)
- IP66 protection (dust / immersion), ideal for outdoor use
- Material: Plastic
- Dimensions: 92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12")
- Weight: 0.40Kg
- 24 month warranty
Data sheet
| HAC-PT1509A-A-LED-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 5MP CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 2880(H)×1620(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | PAL: 1/25s–1/100000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >65 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.001 lux@F1.0 (Color, 30IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | IR: 40 m (131.23 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Car | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 4 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–355° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed focus | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Focus | No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 3.6mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings | F2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 3.6mm: H: 89°; V: 47°; D: 104° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switches on the BNC port.
5MP resolution, means 12 times the resolution of a common D1 camera :
It guarantees adequate resolutions for any need.
2.8mm fixed lens
Infrared illuminator with 4 LEDs with an approximate maximum range of 40m
This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.
D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.
Allows you to adapt the lens to Night/Day vision
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
| This camera is equipped with an on-board microphone |
Protection level IP67 (Dust / Immersion)
12VDC power supply not included
This product is covered by a 24 month warranty.
