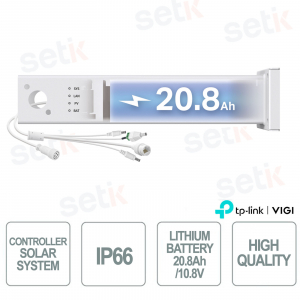

VIGI PS20 Solar System Controller - 20.8Ah/10.8V - IP66 - TP-link

VIGI PS20 Solar System Controller - 20.8Ah/10.8V - IP66 - TP-link
ANKÜNDIGUNGEN -45%

The VIGI PS20 is an advanced solar controller equipped with a 20.8Ah/10.8V automotive-grade lithium battery. It offers remote management and maintenance via the VIGI App or VIGI Cloud VMS, ensuring efficient monitoring. Intelligent auxiliary heating technology ensures optimum battery performance even in extremely cold weather conditions. The Maximum Power Point Tracking (MPPT) charge controller increases charging efficiency by 20% compared to traditional PWM controllers. With built-in protections against overcharge, over-discharge, overcurrent, overheating and short circuit, and an IP66 rating, the VIGI PS30 is ideal for powering outdoor devices such as surveillance cameras and network equipment.


3 Years Warranty




Artikel-Nr.: VIGI PS20

Marke: VIGI

EAN: 8885020624359

Manufacturer Object ( [id] => 52 [name] => VIGI [description] =>

Die Geschichte von VIGI reicht bis zur zunehmenden Nachfrage nach hochwertigen Videoüberwachungslösungen zurück. Mit dem wachsenden Bewusstsein für Sicherheit suchten die Menschen nach zuverlässigen Lösungen, um ihre Räume zu überwachen und zu schützen. TP-Link reagierte auf diese Bedürfnisse, indem sie die Marke VIGI einführten
VIGI-Produkte umfassen verschiedene Arten von Überwachungskameras, wie Bullet-Kameras, Dome-Kameras, PTZ-Kameras und mehr. Diese Kameras verfügen über fortschrittliche Funktionen wie hochauflösende Videoauflösung, Nachtsicht, Bewegungserkennung, Push-Benachrichtigungen und vieles mehr. Darüber hinaus bieten viele VIGI-Kameras die Möglichkeit, Videos auf microSD-Karten zu speichern oder Cloud-Speicherdienste zu verwenden.
TP-Link hat sich in der Netzwerkbranche einen Ruf für Zuverlässigkeit und Qualität erworben, und die Marke VIGI setzt diese Tradition im Bereich der Videosicherheit fort. Mit einem konstanten Engagement für Innovation und Qualität erweitert TP-Link kontinuierlich die Produktpalette von VIGI, um den wachsenden Sicherheitsanforderungen des Marktes gerecht zu werden.

[short_description] =>


Die Marke VIGI wurde von TP-Link als Linie fortschrittlicher Videoüberwachungsprodukte eingeführt, die sich auf Heim- und Gewerbesicherheit konzentriert. Diese Produktlinie wurde entwickelt, um zuverlässige, leistungsstarke und benutzerfreundliche Videoüberwachungslösungen anzubieten, um Menschen dabei zu helfen, ihre Häuser, Unternehmen und Eigentum zu schützen.

[id_address] => [date_add] => 2024-06-11 17:20:54 [date_upd] => 2025-02-18 16:36:33 [link_rewrite] => vigi [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


VIGI SPEZIAL×


  TRY VIGI!
FREE SHIPPING + 10% EXTRA
 Discover now >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


VIGI PS20 SOLAR SYSTEM CONTROLLER - 20.8Ah/10.8V - IP66

Made VIGI

The TP-Link VIGI PS20 20.8Ah/10.8V Automotive-Grade Lithium Battery is designed to provide stable and long-lasting power to your devices, ensuring maximum performance even in extreme weather conditions. Thanks to the intelligent auxiliary heating technology, it maintains optimal efficiency even at low temperatures.
Equipped with a MPPT charge controller, it optimizes solar charging by increasing efficiency up to
20% compared to traditional PWM controllers. In addition, the integrated protection against overload, over-discharge, over-current, overheating and short circuit ensures safe and reliable operation over time.
With a residual capacity of over 70% after 500 cycles, this battery guarantees exceptional durability and resistance. The IP66 certification makes it resistant to the elements, protecting it from dust and water, perfect for outdoor installations.
With remote management and maintenance via VIGI app or VIGI Cloud VMS, you can monitor the battery status in real time and optimize its performance without manual intervention. In addition, the simple installation makes it suitable for any type of off-grid or solar power system.

PRODUCT DETAILS

VIGI PS20


|| Technical Specifications:

  • 20.8Ah/10.8V Automotive-Grade Lithium Battery
  • Remote management and maintenance via VIGI app or VIGI Cloud VMS
  • Intelligent auxiliary heating technology ensures optimum battery performance in extremely cold weather conditions
  • The charge controller with maximum power point tracking (MPPT) increases charging efficiency by 20%*
  • Overload, over-discharge, over-current, over-heat and short circuit protection
  • Residual capacity > 70%** after 500 cycles
  • IP66 Weatherproof
  • 3 year warranty

TECHNICAL DATA SHEET

Battery
Type Lithium
Intelligent Auxiliary Heat Yes
Battery Capacity 20.8 Ah
Voltage 10.8 V
Max.Output Voltage 12.6 V
Life More than 500 cycles
Dimensions 242×70×65 mm (9.5×2.8×2.6 in)
Charging Condition 0°C~45°C
-30°C~45°C (With intelligent auxiliary heating)
Discharging Condition -20°C~60°C
-30°C~60°C (With intelligent auxiliary heating)
HARDWARE
Interface 1× 10/100Mbps RJ45
1× Photovoltaic Panel Connector
3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
LED indicator Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
Color: Blue
SOFTWARE FEATURES
Load Control Yes
High and Low Temperature Protection Yes
Overdischarge protection Yes
Power Consumption Statistics Yes
Displays Real-time Load Status Yes
Battery Level Display Yes
Time Zone Selection Yes
Region Selection Yes
Schedule Saving Yes
Firmware Remote Update Yes
Remote Reboot Yes
Local LAN Management Yes
Smart Charging Control -30°C~5°C
Account Management Yes
Remote Reset Yes
Remote Message Push Yes
OTHER
Certification CB, PSE (Battery)
CE, FCC, VCCI, IC, IP66 Weatherproof
Package Contents VIGI PS30
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Box dimensions (L x W x H) 580×320×225 mm (22.83×12.60×8.86 in)
Weight Package Weight: 9.2kg
Environment Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
Operating Humidity: 10%~90%RH, Non-condensing

3 year warranty

The following product is covered by a 3 year warranty
