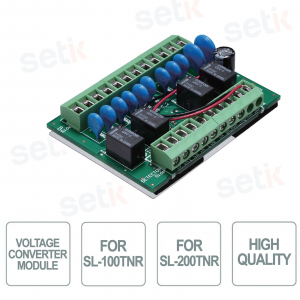

VOLTAGE CONVERTER MODULE - OPTEX
Technical data sheet
| Model | PCU-5 |
| Power input | 10.5 - 30VDC |
| Current draw | 80mA (max.) |
| Output voltage | Approx. 3.9VDC |
| Current output | 10mA (max.) |
| Alarm output | Form C relay ; 30VDC. 0.2A |
| Low battery output | NC relay ; 30VDC. 0.2A |
| Tamper-proof | NC relay ; 30VDC. 0.2A |
| Operating temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating humidity | 95% (max.) |
| Dimensions | 71 x 53 x 20 mm |
