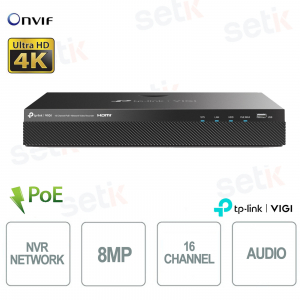

NVR Network TP Link 16 channels PoE+ VIGI NVR2016H-16MP 4K HDMI 8MP H.265+ 2 x SATA

NVR Network TP Link 16 channels PoE+ VIGI NVR2016H-16MP 4K HDMI 8MP H.265+ 2 x SATA
ANKÜNDIGUNGEN -45%

VIGI NVR2016H-16MP TP-Link VIGI NVR IP network 4K HDMI 16 channels PoE+ (8 channels 2MP / 4 channels 4MP), 80Mbps input bandwidth and 60Mbps output. H265+ compression, maximum resolution 8MP - 2x USB 2.0, two-way audio, 1x RS232, 1x HDMI, 1x VGA - supports 2 SATA HDDs up to 16TB - Motion detection, abandoned object detection, vehicle and person detection, smart frame. Dimensions: 330 × 285 × 45 mm


3 Years Warranty




Artikel-Nr.: VIGI NVR2016H-16MP

Marke: VIGI

EAN: 4895252504026

Manufacturer Object ( [id] => 52 [name] => VIGI [description] =>

Die Geschichte von VIGI reicht bis zur zunehmenden Nachfrage nach hochwertigen Videoüberwachungslösungen zurück. Mit dem wachsenden Bewusstsein für Sicherheit suchten die Menschen nach zuverlässigen Lösungen, um ihre Räume zu überwachen und zu schützen. TP-Link reagierte auf diese Bedürfnisse, indem sie die Marke VIGI einführten
VIGI-Produkte umfassen verschiedene Arten von Überwachungskameras, wie Bullet-Kameras, Dome-Kameras, PTZ-Kameras und mehr. Diese Kameras verfügen über fortschrittliche Funktionen wie hochauflösende Videoauflösung, Nachtsicht, Bewegungserkennung, Push-Benachrichtigungen und vieles mehr. Darüber hinaus bieten viele VIGI-Kameras die Möglichkeit, Videos auf microSD-Karten zu speichern oder Cloud-Speicherdienste zu verwenden.
TP-Link hat sich in der Netzwerkbranche einen Ruf für Zuverlässigkeit und Qualität erworben, und die Marke VIGI setzt diese Tradition im Bereich der Videosicherheit fort. Mit einem konstanten Engagement für Innovation und Qualität erweitert TP-Link kontinuierlich die Produktpalette von VIGI, um den wachsenden Sicherheitsanforderungen des Marktes gerecht zu werden.

[short_description] =>


Die Marke VIGI wurde von TP-Link als Linie fortschrittlicher Videoüberwachungsprodukte eingeführt, die sich auf Heim- und Gewerbesicherheit konzentriert. Diese Produktlinie wurde entwickelt, um zuverlässige, leistungsstarke und benutzerfreundliche Videoüberwachungslösungen anzubieten, um Menschen dabei zu helfen, ihre Häuser, Unternehmen und Eigentum zu schützen.

[id_address] => [date_add] => 2024-06-11 17:20:54 [date_upd] => 2025-02-18 16:36:33 [link_rewrite] => vigi [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


SSD1TB SCHOCK PREIS!×


 SSD1TB SHOCK PRICE!
Same price as the NON-SSD version!
Only 100 pieces!
  Buy now >>

VIGI SPEZIAL×


  TRY VIGI!
FREE SHIPPING + 10% EXTRA
 Discover now >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR2016H-16MP cover


VIGI NVR2016H-16MP NVR NETWORK TP LINK VIGI 16 CHANNELS POE+ 4K HDMI 8MP |

Made VIGI

TP-Link VIGI 8MP IP network NVR 16 channels PoE+ 4K HDMI - VIGI NVR2016H-16MP
Max Resolution 8MP - 16 PoE+ Channels (8 Channels 2MP / 4 Channels 4MP) - H.265+ Compression - Supports 2 HDDs up to 16TB - 80Mbps in 60Mbps out bandwidth
2x USB 2.0, 1x RJ-45, 1x HDMI, 1x VGA, 1CH audio in/out
Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
Remote Monitoring - 3 Years Warranty

PRODUCT DETAILS

NVR2016H-16MP


|| Technical Specifications:

  • Video Resolution: H.265+/H.265/H.264+/H.264
  • 16 Channel PoE+ 4K HDMI 8 Channel 2MP / 4 Channel 4MP
  • 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
  • Maximum resolution 8MP
  • Ports: 2x USB 2.0, 1x RJ-45, 1x HDMI, 1x VGA, 1CH audio in/out
  • Supports 2 HDDs up to 16TB
  • Smart Detection - Two-way Audio - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
  • Remote monitoring
  • 3 years warranty

TECHNICAL DATA SHEET

VIDEO AND AUDIO
IP Video Input 16-Channel
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 60Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1,4,6,8,9,16
DECODING
Audio Compression G.711A/G.711U/G.726
Decoding Format H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability 25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
30fps:
4-ch @ 3MP, 2-ch @ 5MP
RECORD MANAGEMENT
Record Mode
  • Manual Recording
  • Scheduling Recording
  • Motion Detection Recording
Playback Mode
  • Instant Playback
  • Regular Playback
  • Tag Playback
  • Event Playback
Backup Mode
  • Regular Backup
  • Video Clip Backup
Playback Function
  • Play
  • Breaks
  • Stop
  • Fast Forward
  • Fast Backward
  • Play By Frame
  • Full Screen
  • Video Clip
  • Export Clip
  • Digital Zoom
  • Lock Recording
  • Sound On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S/T/G, CGI
EXTERNAL INTERFACE
Network Interface 1, RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA 1
HDMI 1
VGA 1
HARD DISK
SATA 2 SATA Interfaces
Capacity Up to 16 TB Capacity for Each HDD

ALARM
General Alarm
  • Motion Detection
  • Video Tampering
  • Scene Change Detection
  • Line Crossing Detection
  • Intrusion Detection
  • Region Entering Detection
  • Region Exit Detection
  • Loitering Detection
  • Object Abandoned/Removal Detection
  • Vehicle Detection
  • Human Detection
  • Abnormal Sound Detection
  • Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm
  • Video Loss
  • Offline and IP Conflict
  • DiskException
  • LoginException
  • Fan Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage
  • Recording
  • White Light Alarm
  • Buzzer
  • Log
  • Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90%RH Non-Condensing
Package Contents
  • VIGI Network Video Recorder
  • Power Adapter
  • Power Cables
  • HDD Power Cables
  • HDD Data Cables
  • Mounting Accessories
  • Mouse
  • Quick Installation Guide
Working Temperature NVR: -10–55 °C
Power adapter: 0–40 °C
Working Humidity 10%~90%RH Non-Condensing
Dimensions (L x W x H) 330 × 285 × 45 mm
Net Weight 2.1 Kg
Gross Weight 4.1 Kg
Power Supply 53.5V DC/3.37A
Power Consumption 6.2W (Without Disk)
40W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

NVR2016H-16MP icons


This product complies with Onvif standard


All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems.

This camera is ONVIF® compatible

Automatic initialization for quick setup

Automatic initialization for quick setup

3 year warranty

The following product is covered by a 3 year warranty
