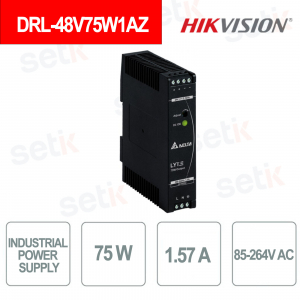

Industrial power supply 48V 75W - DRL-48V75W1AZ - Hikvision

Industrial power supply 48V 75W - DRL-48V75W1AZ - Hikvision
-35%

DRL-48V75W1AZ - 75W industrial power supply with 48V DC output and 1.57A current, ideal for DIN rail mounting. It supports a wide input voltage range (85-264V AC) , with efficiency up to 90% and integrated protections. Designed for industrial environments, it operates between -20°C and +70°C with cold start up to -30°C , ensuring reliability and safety. Hikvision



Artikel-Nr.: DRL-48V75W1AZ

Marke: Hikvision

EAN: 6942160414461

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


HIKVISION: NETTOPREISE×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

HIKVISION ALARM×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

hikvision_banner

INDUSTRIAL POWER SUPPLY - 48V 75W - HIKVISION

Hikvision
75W industrial power supply with 48V DC output and 1.57A current.
It supports a wide input voltage range (85-264V AC) , with efficiency up to 90% and integrated protections. Designed for industrial environments, it operates between -20°C and +70°C with cold start up to -30°C , ensuring reliability and safety.
Quality product

Product details

  • Industrial Power Supply - Hikvision
  • Power: 75W
  • Output voltage 48 VDC
  • Rated current: 1. 57A
  • Input voltage: 85-264V AC
  • Operating temperature: -20°C to +70°C (cold start up to -30°C)
  • Dimensions: 123.6 x 27 x 102 mm
  • Weight: 0.22 Kg
  • Product excluded from warranty
DRL-48V75W1AZ

Technical data sheet

Model DRL-48V240W1EN
OUTPUT
DC-VOLTAGE 48V DC
CONSTANT CURRENT REGIONNote.2 43.2-52.8V DC
RATED CURRENT(forBETypeonly) 1.57 A
RATED POWER 75W
RIPPLE & NOISE (max.) Note.3 < 240mVpp @ > -10°C to +70°C < 480mVpp @ ≤ -10°C to -30°C
VOLTAGE TOLERANCE Note.4 ±1.0%
HOLD UP TIME (Typ.) 16ms typ. @ 115Vac (100% load) 60ms typ. @ 230Vac (100% load)
ENVIRONMENT
WORKING HUMIDITY 5 to 95% RH (Non-Condensing
STORAGE TEMP., HUMIDITY 40°C to +85°C
SAFETY & EMC
SAFETY STANDARDS IEC 62368-1, IEC 60950-1, IEC 61010-1 & -2-201 EN 62368-1, EN 61010-1 & -2-201 UL 62368-1 GB4943.1 TP TC 004/2011 K60950-1 (24V model only) In compliance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
OTHER
DIMENSION 123.6 x 27 x 102 mm (4.89 x 1.06 x 4.01 inch)
PACKING 0.22 kg (0.49 lb)
