HIKVISION | BANDA-K

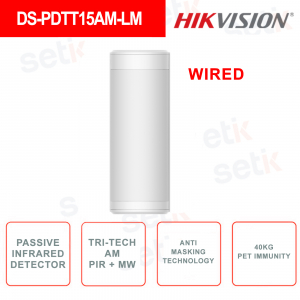

DS-PDTT15AM-LM Hikvision Banda-K Rilevatore con fili Tripla Tecnologia AM filare da esterno, portata fino a 15m, Pet Immune fino a 40KG, Anti-mascheramento, Indicatore led, protezione antimanomissione anteriore e posteriore, IP65.
DAI UN'OCCHIATA ALLA VERSIONE WIRELESS!
>> DS-PDTT15AM-LM-WE <<
196,66 €
302,56 € -35%DS-PDTT15AM-LM - HIKVISION RILEVATORE TRI-TECH AM FILARE ANTIMASCHERAMENTO PET IMMUNE
BANDA-K | PROTEZIONE MASSIMIZZATA
Il DS-PDTT15AM-LM è uno dei nuovi sensori a banda-k di Hikvision. Questo rilevatore da esterno filare tri-tech tripla tecnologia PIR + MW con antimascheramento, è dotato di microonda K-Band da 24GHz, copertura fino a 15m e immunità agli animali domestici [fino a 40KG].
Möchten Sie mehr erfahren? Lesen Sie den Artikel in unserem Blog! |
- Rilevatore filare passivo infrarosso da esterno Documentazione: Depliant |
DS-PDTT15AM-LM | |
Detection Performance | |
Detection Method | Passive Infrared,Microwave |
Detection Range | 15m |
Detection Angle | 90° @ 180° adjustable |
Detection Zones | 92 |
Detectable Speed | 0.3~2m/s |
Sensitivity | Auto,Low |
White Light Filter | 10000lux |
Microwave Frequency | 24GHz(24.15~24.25GHz) |
Pet Immunity | 40Kg |
Digital Temperature Compensation | Support |
Anti-masking | Support |
Adaptable Coverage | Support Pattern mask included |
Feature | |
Digital Processing | Tri-Signal Logic |
Sealed Optics | Support |
Tamper Protection | Front,Rear |
Anti-Sway Analytics | Support |
Interface | |
Alarm Output | Normally Closed |
LED Indicator | Green(Top PIR), Red(Microwave), Orange(Bottom PIR)Green+Orange(Mask), Blue(Alarm) |
Transmission | |
Transmission Method | Wired |
Electrical Characteristics | |
Power Consumption | 30mA (Standard) 220mA Max (With lighting on) |
Power Supply | 9 to 16 VDC |
Typical Voltage | 12 VDC |
General | |
Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
Operation Humidity | 10% to 90% |
IP Rate | IP65 |
Dimension(WxHxD) | 75mm × 202mm × 73mm |
Weight | 350g |
Mounting Height | 0.8 to 1.2m |
Mounting Method | Wall |
Application Scenario | Outdoor |
