The 360-degree volumetric IR detection with ceiling mount offers a reliable solution for complete indoor monitoring. Designed for a mounting height between 2.5 and 4.5 meters , it guarantees a coverage of 6 meters with optimal performance even at a maximum mounting of 4.5 meters. The compact size, equal to 52 x 42.5 mm without mounting box. Dimensions 86x86x42.5 mm, battery powered - AP-20NBR
INSTALLATEUR FINDEN
https://www.setik.biz/de/sensoren/11287-optex-ap-20nbr-indoor-pir-detector-ir-6m-360-battery-operated-optex.html
33,18 €
48,80 € -32%
Steuern inbegriffen

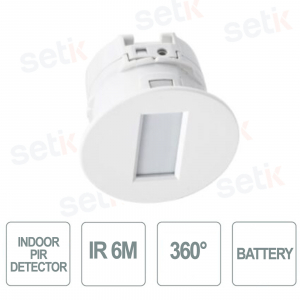

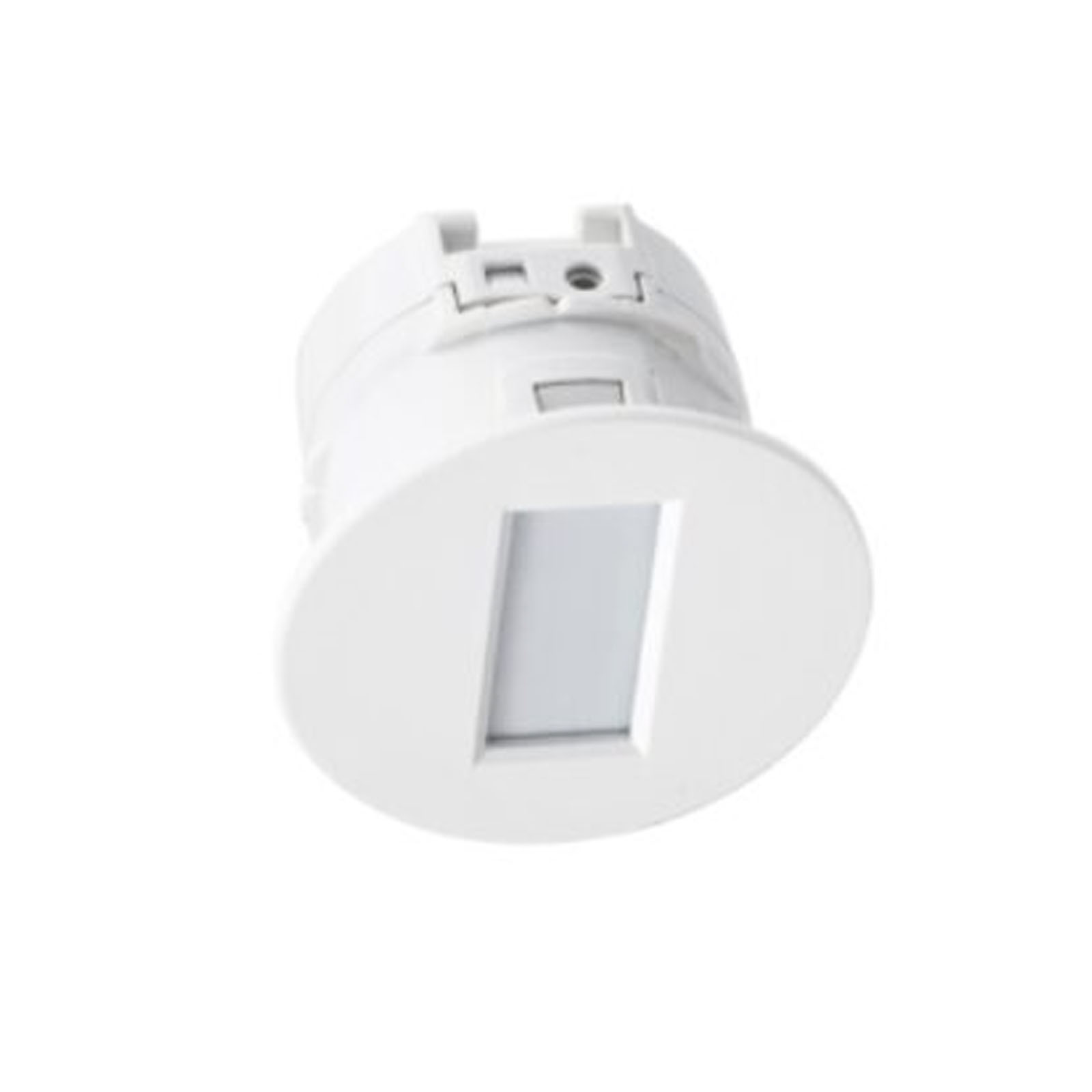

INDOOR PIR DETECTOR - IR 6M - 360° - OPTEX
Product details
- PIR Detector
- From inside
- To branch
- Fixing height from 2.5 to 4.5 m
- IR detector coverage 6m
- Battery powered
- Dimensions 86 x 86 x 42.5 mm
Technical data sheet
|
Model |
AP-20NBR | |
| Detection method | Passive infrared | |

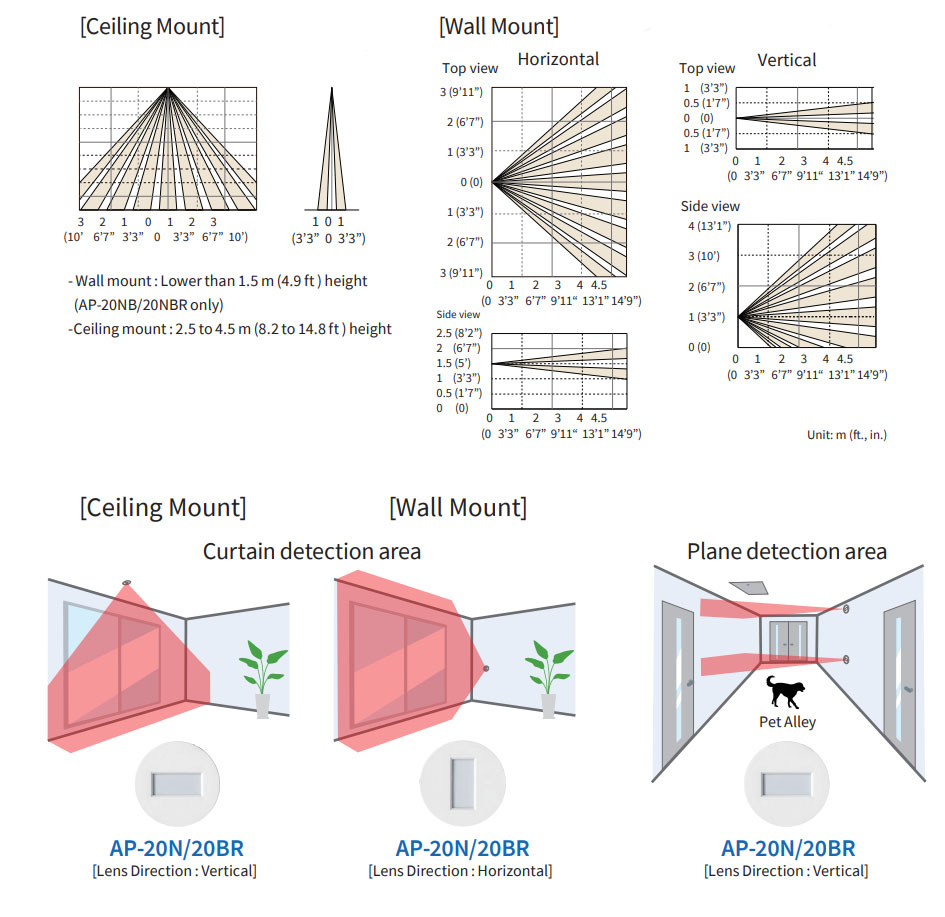

| Detection area | < Ceiling mount > 6.0 m x 1.0 m (20' x 3'3”) at 4.5 m (14'9”) height < Wall mount > 6.0 m x 4.5 m (20' x 14'9”) at 1.5 m (4'11”) height |
|
| Mounting height | 1.5 m (4'11”): Horizontal 1.0 m (3'3”): Vertical |
|
| Mounting type | Recessed ceiling mount/86-type box mount | |
| Sensitivity | 2.0℃ at 0.6 m/s (3.6°F at 2'/s) | |
| Detection speed | 0.3 to 3.0 m/s (1'/s to 9'10”/s) | |
| LED indicator | Warm-up upon power on: blinking Stand-by: off Walk test: solid on Alarm: solid on | |
| Alarm cycle | Approx. 2 s | |
|
Illuminance |
- | |
| Battery saving timer | 120s/ 5s selectable | |
| Alarm output | NO/NC, 3.6V DC 10mA max. | |
| Tamper switch | NC 28V DC 100mA max The contact opens once the casing is detached. |
|
| Warm up time | Approx. 60 s | |
| Power supply | 2.7 to 3.6 V DC (CR123A battery) | |
| Current | 3V DC Stand-by: 10A, Max.: 4mA |
|
| PIR sensitivity | H/M/L | |
| Weight | 50g (1.76oz) | |
| Operation temperature | -20 to +50℃ (-4°F to +122°F) | |
| Operation humidity | < 95% | |
| Location | Indoors | |

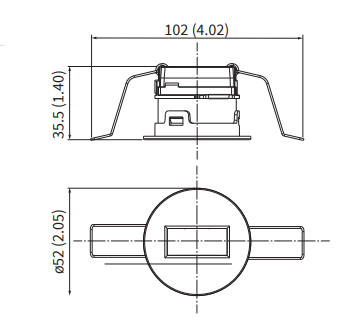

| Dimensions | ø52 x 42.5 mm (ø2.05 in. x 1.67 in.): without switch box mount 86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.): with 86-type box mount |
