The LIDAR series detector offers wide and precise coverage, with a range of 30x60 meters at a 190° angle. It uses advanced infrared laser scanning technology to ensure reliable and accurate detection. Designed for indoor and outdoor environments, an installation height of at least 2 meters is recommended for indoor use and 4 meters or more for outdoor use. Powered by 19.2-30 VDC or PoE+ , the device is built with IP66 protection rating, making it resistant to adverse weather conditions - RLS-3060V
https://www.setik.biz/de/sensoren/11247-optex-rls-3060v-30x60-190-indooroutdoor-long-range-lidar-detector-poe-optex.html
5.014,10 €
7.373,68 € -32%
Steuern inbegriffen
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

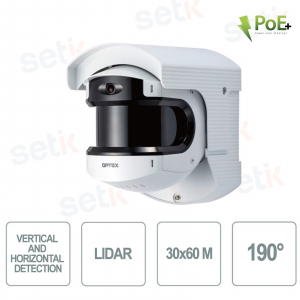

LIDAR SERIES INDOOR/OUTDOOR LONG RANGE DETECTOR - 190° - 30x60M - POE+ - OPTEX
Product details
- LIDAR detector
- Indoor installation height: 2m or more
- External installation height: 4m
- To branch
- Power supply PoE+ or 19.2-30 VDC
- Detection coverage 30x60 m
- IP66 protection
- Dimensions 230x160x256.6 mm
- Weight: 2.6 Kg
Technical data sheet
|
Model |
RLS-3060V |
| Place of installation | Interior/Exterior |
| Detection method | Infrared Laser Scanning |
| Laser protection class | Class 1 |
| Input power | 19.2-30 VDC, PoE+ (IEEE 802.3at compatible) |
| Current consumption | 500 mA max. (24 VDC), 12 W max. (PoE+) with optional heater: 1.25 A max. (24 VDC), 25.5 W max. (PoE+) |
| Installation Method | Ceiling installation, Wall installation, Pole installation |
| Detection zones | 30 x 60 m, 190 degrees |
| Detection field | Range 1 to 30m at 10% reflectivity |
|
Detection resolution / |
0.25 degrees / from 100 msec. at 15 min. |
| Installation height (vertical mode) | Interior: 2 mo more / Exterior: 4 mo more (Recommended) |
| Communication port | Ethernet RJ-45 10BASE-T/100BASE-TX (Auto Negotiation) |
| Protocol | UDP/TCP/HTTP/HTTPS/IPV4/DNS/DHCP/SNMPv1-v3/NTP/WS-Discovery/ONVIF |
| Exit | 6 outputs, 28 VDC 0.2A max. NO/NC Selectable |
| Entrance | 1 voltage-free contact input |
| Alarm duration | Timer about 2 seconds delay |
| Operating temperature | From -20°C to 60°C with RLS-LWVH: -40°C to 60°C |
| Dimensions (H×W×D), Weight | 230 × 160 × 256.6 mm max., 2.6 kg |
| IP Rating | IP66 |
