Outdoor 40x4m POE Dual PIR Detector with Creep-Off and Anti-Mask Zone - Optex

-32% Neu

The outdoor dual PIR detector is designed to ensure maximum safety in outdoor environments thanks to its advanced technology. Equipped with a 3-axis accelerometer for tampering and rotation detection, this device uses a passive infrared detection system to effectively monitor the surrounding area. It offers a main coverage of up to 40x4 meters and variable creep coverage: 3x5 meters at a height of 2.3 meters and 6x9 meters at a height of 4 meters, with adjustable detection angles. Its 24 main detection zones and 36 dedicated to creeping ensure detailed control. It can be installed at a height of between 2.3 and 4 meters and has PoE power supply, with a version equipped with an integrated storage box. The device includes 3 alarm outputs, 2 of which are independent, for flexible management of the signals. - SIP-404/5-IP-BOX

Artikel-Nr.: SIP-404/5-IP-BOX

Marke: Optex

INSTALLATEUR FINDEN

https://www.setik.biz/de/sensoren/11244-optex-sip-404-5-ip-box-outdoor-40x4m-poe-dual-pir-detector-with-creep-off-and-anti-mask-zone-optex.html

752,45 €

1.106,54 € -32%

Steuern inbegriffen

SIND SIE PROFESSIONELL IN DER BRANCHE?
REGISTRIEREN SIE SICH, UM AUF IHRE LISTE ZUGREIFEN

Quantität

Erhältlich in 5 tage

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Download

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 40x4 M - 3 ALARM OUTPUTS - POE - OPTEX

Product details

Outdoor Dual PIR Detector
Anti-creep
Anti-masking
To branch
Anti-creep coverage: 3x5 at 2.3m height, 6x9 at 4m height
PoE Power Supply
Detection coverage 40x4 m
Mounting for height 2.3 - 4 m
Dimensions 248x102x266 mm
Weight: 1.9 Kg

Technical data sheet

Model	SIP-404/5-IP-BOX
Detection method	passive infrared

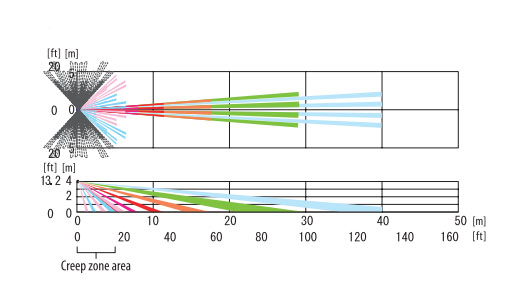

Coverage (main area)	40 x 4m (130 x 13ft)
Coverage (creep zone)	3x 5m (10 x 16ft.) installed at 2.3m (7.6ft.) height, 6 x 9m (20 x 30ft.) installed at 4m (13ft.) height, detection angle adjustable horizontally
Power supply	PoE * (IEEE802.3af/at compliant)
Current draw	40mA max., 75mA, 415mA max. with optional heating unit
Mounting height	2.3 to 4m (7.6 to 13ft)
Sensitivity selector	Far: SH/H/M/L Near: SH/H/M/L Creep zone: SH/H/M/L
Detection logic selector	And/Or
Alarm output (main area)	Near area Redwall event code (UDP/TCP) Far area Redwall event Code (UDP/TCP)
Alarm output (creep zone)	Redwall event code (UDP/TCP)
Alarm interval period	Off/15, 30, 60 sec.
Alarm period	approx. 2 sec.
Warm-up period	approx. 60 sec.
Operating temperature	-25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit) If the heater is used, it should be external 22-26V AC (not POE)
IP rating	Main unit: IP66 Frame: IP55
Dimensions	248 x 102 x 266 mm (9.8 x 4.0 x 11.4 in.)
Weight	1.9 kg
Supported protocols	IPv4, ARP, UDP, TCP, ICMP, HTTP
Function setting	Use web browser
