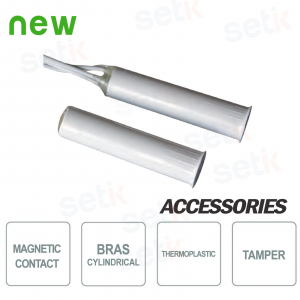

CYLINDRICAL THERMOPLASTIC FLUSH-MOUNTED CONTACT WITH EXCHANGE TAMPER
|
DESCRIPTION: Ideal for aluminium, wood and PVC doors and windows Anti-tamper wire loop. IP65 protection Certified according to EN50131-2-6 Extremely reliable product |
Product details
- Cylindrical Recessed Contact Switch - CSA Cooper
- Ideal for mounting on aluminium, wood and PVC doors and windows
- Material: Thermoplastic body
- High intervention distance
- Wire connection (2 for NC contact +2 for tamper)
- With self-tampering wire loop (tamper).
- Reed contact NC output with magnet near or reed contact in exchange
- IP65 protection rating - IMQ approved for outdoor use
- Certified according to EN50131-2-6
- Quality product
Technical data sheet
| Container material | Thermoplastic colors as per table |
| How it works |
Reed NC output with magnet near or reed contact in exchange |
| Connection type |
Wired (2 for NC contact + 2 for tamper) |
| Operating temp. | -25°C ÷ +70°C |
| Degree of protection | IP 65 |
| Standard equipment | Tamper-proof wires |
| D Max (no iron) | 15mm |
| Contact type | NC* With magnet close |
| Max Voltage | 200 Vdc |
| Max Current | 300mA |
| Max Power | 3 W |
| N* Wires | 4 |
| Cable Length | 0.3 m |
| Color | white |
| Approvals |
IMQ Level I** |
| Security level | 2 |
| Environmental Class | III |
| Package Weight | 0.11 Kg |
