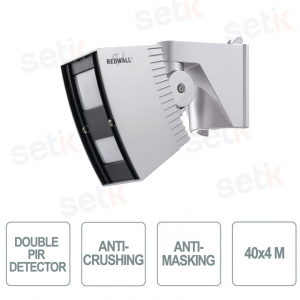

Outdoor 40x4m Anti-Creep and Anti-Mask Dual PIR Detector - Optex

-32% Neu

Outdoor dual infrared detector with anti-masking function provides a detection coverage of 40 x 4 meters , offering 48 detection zones. It features an intelligent sensor that adapts sensitivity based on ambient light and temperature, supported by an advanced detection algorithm for optimal performance. Anti-vandalism functions protect the device from tampering, while the logical detection and range selector ensures customized configuration. The alarm range is adjustable and the installation is compatible with heights between 2.3 and 4 meters , making it a versatile solution for outdoor security. - SIP-404

Artikel-Nr.: SIP-404

Marke: Optex

INSTALLATEUR FINDEN

https://www.setik.biz/de/sensoren/11189-optex-sip-404-outdoor-40x4m-anti-creep-and-anti-mask-dual-pir-detector-optex.html

398,21 €

585,60 € -32%

Steuern inbegriffen

SIND SIE PROFESSIONELL IN DER BRANCHE?
REGISTRIEREN SIE SICH, UM AUF IHRE LISTE ZUGREIFEN

Quantität

Erhältlich in 5 tage

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Download

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 40x4 M - OPTEX

Product details

Outdoor Dual PIR Detector
Anti-creep
Anti-masking
To branch
Detection coverage 40x4 m
Mounting for height 2.3 - 4 m
Dimensions 227x102x266 mm
Weight: 1.2 Kg

Technical data sheet

Model	SIP-404
Detection method	-
Coverage	40x4 m (130 x 13 ft.)
Power input	11-16 VDC 22-26 VAC, 22-26 VAC with optional heating unit
Current draw	35mA max. (12VDC) 70mA (24VDC), 410mA max. (24VAC) with optional heating unit
Mounting height	2.3 to 4m (7.6 to 13ft)
Sensitivity selector	Far: SH/H/M/L Near: SH/H/M/L
Range selector	to: On/Off
Detection logic selector	And/Or
Alarm input	NO, NC, 28 VDC 0.2A max.
Alarm interval period	Off/15, 30, 60 sec.
Troubleshooting	NC, 28 VDC 0.2 A max.
Tamper-proof	NC, 28 VDC 0.1 A max.
Alarm period	approx. 2 sec.
Warm-up period	approx. 60 sec.
Operating temperature	-25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit)
IP rating	Main unit: IP66 Frame: IP55
Dimensions	227x102x266 mm (9.0x4.0x10.5 in.)
Weight	1.2 Kg (42 oz)
