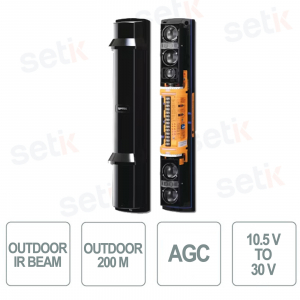

QUAD infrared barrier for outdoor range 200m - wired - Optex

-32% Neu

Quad infrared barrier with a range of up to 200 meters , ideal for high-performance security systems. Equipped with automatic gain control (AGC) for precise adjustment and a 2x magnification viewfinder for optimal alignment. Compatible with a power supply voltage of 10.5V to 30V DC, IP65. - SL-650QN

Artikel-Nr.: SL-650QN

Marke: Optex

INSTALLATEUR FINDEN

https://www.setik.biz/de/sensoren/11139-optex-sl-650qn-quad-infrared-barrier-for-outdoor-range-200m-wired-optex.html

326,03 €

479,46 € -32%

Steuern inbegriffen

SIND SIE PROFESSIONELL IN DER BRANCHE?
REGISTRIEREN SIE SICH, UM AUF IHRE LISTE ZUGREIFEN

Quantität

Erhältlich in 5 tage

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Download

OUTDOOR QUAD ACTIVE INFRARED BARRIER - 200M RANGE - LONG RANGE - OPTEX

Product details

QUAD long range outdoor infrared barrier
To branch
Range 200 m outside
Consumption: 40mA
Power supply: 10.5 - 30VDC
Working temperature: -25°C ~ +60°C
Dimensions: 448 x 79 x 96 mm

Technical data sheet

Model	SL-650QN
Maximum detection range	200m / 650ft
Maximum distance from arrival	2000m / 6500ft
Detection method	Quad infrared beam interruption detection
Selectable beam frequency	4 channels
Interruption time	Variable between 50/100/250/500 ms (4 steps)
Power source	10.5 - 30VDC
Current draw	40mA (Transmitter:8mA Receiver:30mA)
Output
Alarm output	Form C relay : 30VDC, 0.2A
Alarm period	2 sec (±1) (Nominal)
Tamper-proof	NC (contact output) : 30VDC, 0.1A Opens when cover removed.
Operating temperature	-25°C - +60°C (-13°F - 140°F)
Operating humidity	95% (max.)
Alignment angle	±90° Horizontal, ±10° Vertical
Dimensions	448 x 79 x 96 mm
Weight	2400g(84.7oz) (Total weight of Transmitter + Receiver, excluding accessories)
International protection	IP65
