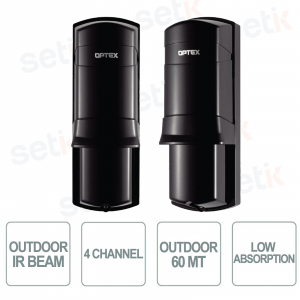

Outdoor low-consumption, double-beam coded infrared barrier with a range of 60m. 4 beam frequencies selectable directly on site, integrated with a DQ (environmental disqualification) circuit for optimal operation. Includes the beam interruption time adjustment function, LED signaling and low battery output. 4 SAFT LSH20 lithium batteries. - IP55 protection. - AX-200TFRC
316,08 €
464,82 € -32%FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
| Model | AX-200TFRC |
| Detection method | Infrared beam interruption detection |
| Maximum detection range | 60m (200ft.) |
| Maximum arrival range | 530m (1740ft.) |
| Interruption period | Selectable between 50, 100, 250, and 500m sec. |
| Selectable beam frequency | 4 channels |
| Power Source | 3.6V 13.0 Ah: LSH20 lithium batteries manufactured by SAFT (not included) Transmitter: 2units Receiver: 2 units |
| Current Drow | 810mA T: 490mA+R:320mA (at 25°C, 3.6 VDC) |
| Batteries Life | Transmitter: 3 Years Receiver: 5 years |
| Output | |
| Alarm period | 2sec. (±1) nominal |
| Alarm output | From C-Solid State Switch: 3.6 VDC, 0.01A |
| DQ output | From A/B-solid State Switch: 3.6 VDC, 0.01 A |
| Low battery output | From A/B-solid State Switch: 3.6 VDC, 0.01 A (Transmitter & Receiver) |
| Tamper output for front cover | From C: 3.6VDC, 0.01A activates when cover removed (reciver only) |
| Tamper output for back box | From C: 3.6VDC, 0.01A activates when either back box or chassis is removed from the installment |
| Indicator | |
| Alarm Indicator (Receiver) | (1) Light on - IR Beam not received. (2) Flickering Light - IR Beams not received sufficiently (3) Light Off - IR Beams received |
| Power (Transmitter) | Power ON:ON Power OFF:OFF |
| Low Battery | Voltage reduction: flicker |
| Operation temperature | -20°C-+60°C (-4°F - +140°F) |
| Operating ambient humidity | 95% (max.) |
| Alignment angle | ± 90° Horizontal, ± 5° Vertical |
| Mounting | Indoor/Outdoor, Wall/Pole/Tower mounting (Optional main unit mounting brackets are required, when the unitsmount in the tower) |
| Weight | 1600g (56.5oz) (Total weight of transmitter + receiver, excluding accessories) |
| International protection | IP55 |
