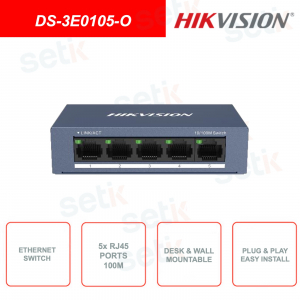

Switch di rete - 5 Porte RJ45 LAN 100M - Plug and Play

Switch di rete - 5 Porte RJ45 LAN 100M - Plug and Play
ANKÜNDIGUNGEN -35%

Il DS-3E0105-O di Hikvision, è uno switch di rete 5 Porte RJ45, con tassi di trasmissione 100Mbps - Capacità di swicthing pari a 1Gbps - Cache interna 0.448Mbits - Packet Forward Rate: 0.744Mbps - Realizzato in metallo - Per installazione a parete o applicazione a scrivania.



Artikel-Nr.: DS-3E0105-O

Marke: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


HIKVISION: NETTOPREISE×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

HIKVISION ALARM×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


SWITCH DI RETE  5 PORTE ETHERNET RJ45 100MBPS - HIKVISION - DS-3E0105-O

Hikvision
Switch di rete Ethernet - HikvisionDS-3E0105-O
5 Porte Ethernet RJ45 100Mbps - Mac Address 1K - Capacità di commutazione 1Gbps - Packet Forwarding Rate: 0.744 Mpps - Cache interna: 0.448 Mbits - Alimentazione: 5 VDC, 1A - Standard supportati: IEEE 802.3,IEEE 802.3u,IEEE 802.3x - Installazione: a scrivania o a parete - Materiale di fabbricazione: metallo.

Dettagli prodotto

Switch di rete 5 - Hikvision
  • Switch di rete - Hikvision - DS-3E0105-O
  • 5 Porte Ethernet RJ45 100M
  • Standard Supportati:IEEE 802.3,IEEE 802.3u,IEEE 802.3x
  • Capacità di switching: 1Gbps
  • Standard supportati: IEEE 802.3,IEEE 802.3u,IEEE 802.3x
  • Forwarding Mode: Store-and-forward switching
  • Packet Forwarding Rate: 0.744 Mpps
  • Cache interna: 0.448 Mbits
  • In Metallo
  • Design senza ventola
  • Plug & Play (non necessita di installazione di driver, pronto all'utilizzo)
  • Dimensioni: 103.05 mm × 25.6 mm × 61.1 mm
  • Peso netto: 0.3Kg
  • Temperatura di funzionamento supportata: -40 °C to 85 °C
  • Alimentazione: 5 VDC, 1A

Scheda tecnica

Model

DS-3E0105-O

Network

Parameters

Ports

5 × 100 Mbps RJ45 port

Port Type

RJ45 port

Working Mode

Standard mode (default)

Standard

IEEE 802.3,IEEE 802.3u,IEEE 802.3x

Forwarding Mode

Store-and-forward switching

MAC Address Table

1K

Switching Capacity

1 Gbps

Packet Forwarding Rate

0.744 Mpps

Internal Cache

0.448 Mbits

General

Dimensions (W × H × D)

103.05 mm × 25.6 mm × 61.1 mm (4.06'' × 1.01'' × 2.41'')

Shell

Metal material, fan-free design

Gross Weight

0.3 kg (0.6615 lb)

Net Weight

0.15 kg (0.3307 lb)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

5% to 95% (no condensation)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Storage Humidity

5% to 95% (no condensation)

Power Supply

5 VDC, 1A

Power Consumption in Idle

<5W

Max. Power Consumption

5W

Approval

EMC

FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 19)

Safety

UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368- 1:2014+A11:2029)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
