The TP-Link Omada ER703WP-4G-Outdoor is a 4G+ Cat6 gateway designed to provide high-speed internet connectivity in outdoor and remote environments. With download speeds of up to 300 Mbps , it supports Wi-Fi 6 AX3000 , offering 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band . Equipped with 3 Gigabit WAN/LAN ports (2 with PoE Out, 1 with PoE In) and a Nano SIM slot, it guarantees flexibility in connections. The IP55 certified casing ensures resistance to bad weather, making it ideal for outdoor installations. Advanced features such as automatic backup between 4G and wired WAN , load balancing and support for multiple VPNs (IPSec, L2TP, PPTP, OpenVPN, GRE, WireGuard, SSL) offer a reliable and secure network solution. Centralized management via Omada SDN platform facilitates the control and supervision of the entire network from a single interface.
INSTALLATEUR FINDEN

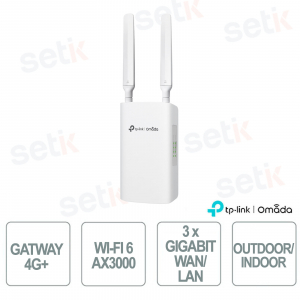

ER703WP-4G-Outdoor WALL GATWAY 4G+ CAT6 ALSO SUPPORTS WI-FI 6 AX3000 - TPLINK OMADA
The TP-Link Omada ER703WP-4G-Outdoor is a 4G+ Cat6 gateway designed to provide fast and stable internet connection in outdoor and remote environments. It supports download speeds of up to 300 Mbps, while Wi-Fi 6 AX3000 offers ultra-fast connections of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ensuring optimal performance for streaming, smart working and IoT devices.
Equipped with 3 Gigabit WAN/LAN ports, 2 with PoE Out and 1 with PoE In, it ensures great flexibility in wired connections. The Nano SIM slot allows stable and continuous 4G connectivity, while power can be provided via PoE 802.3at/bt or DC 12V/2A power supply, simplifying installation even in hard-to-reach areas.
The Auto Backup system between 4G and wired WAN with Load Balancing ensures an uninterrupted connection, automatically switching between mobile network and wired line in case of failure. For business security, the router supports advanced VPN including IPSec, L2TP, PPTP, OpenVPN, GRE, WireGuard and SSL VPN, protecting data and communications from unauthorized access.
Designed to withstand the harshest weather conditions, the IP55-rated enclosure ensures high resistance to dust, rain, and extreme temperatures. Centralized management via Omada SDN allows remote control of the network, simplifying configuration and maintenance.
Main features:
- High-speed 4G+ Connectivity: Supports 4G+ Cat6 with download speed up to 300Mbps and Nano SIM slot for stable and continuous mobile connection.
- Wi-Fi 6 AX3000 for high performance : Speed up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz and more stable, efficient and low-latency connection
- Flexibility in wired connections : 3 Gigabit WAN/LAN ports for reliable connections, 2 ports with PoE Out to power external devices such as access points and cameras, and 1 PoE In port to simplify installation without the need for external power
- Advanced security and data protection : Multiple VPN Support: IPSec, L2TP, PPTP, OpenVPN, GRE, WireGuard and SSL VPN and encrypted communications for a secure corporate network
- Business continuity and intelligent management : Auto Backup between 4G and Wired WAN with Load Balancing for Uninterrupted Connections and Centralized Management Omada SDN for Remote Control and Multi-Site Management
- Durable design and versatile installation : IP55 protection, resistant to dust, rain and extreme temperatures and powered by PoE 802.3at/bt or DC 12V/2A for flexible installations
Technical data sheet
| Model | ER703WP-4G-Outdoor |
| 4G | |
| Network Type | LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| SIM Type | 1× Nano SIM Card |
| Frequency | Downlink: 300 Mbps; Uplink: 50Mbps |
| SAFETY | |
| PPE | Application control via DPI / Updated app library |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | Web Group Filtering URL Filtering Web Security |
| ARP inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Attack defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | 3 Gigabit WAN/LAN Ports |
| Average | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Key | Reset Button |
| Diet | 802.3at/bt PoE; 12VDC / 2A Power Adapter |
| Wi-Fi Frequency & Signal Rate | 2.4GHz: 574Mbps 5GHz: 2402Mbps (HE160) |
| Flash | 256MB NAND |
| DRAM | 512MB DDR4 |
| LED | 4G Signal, WLAN, WAN/LAN, SYS |
| Dimensions (L x W x H) | 6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included) |
| Antenna | Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas LTE: Two 4.0dBi omnidirectional detachable antennas |
| Mounting type | Pole/Wall Mounting |
| Max Power Consumption | POE:62.9W max @ 220V/50Hz 25℃ DC: 16.6W max @ 220V/50Hz 25℃ |
| PERFORMANCES | |
| DPI Throughput | TCP: 1131Mbps UDP: 974Mbps |
| GRE | Unencrypted: 450.3Mbps Encrypted: 277.6Mbps |
| WireGuard VPN | 462.8Mbps |
| Concurrent sessions | 120,000 |
| New Sessions /Second | 3,800 |
| NAT (Static IP) | 945.9Mbps / 950.2Mbps |
| NAT(DHCP) | 947.3Mbps / 949.4Mbps |
| NAT(PPPoE) | 916.9Mbps / 946.3Mbps |
| NAT (L2TP) | 878.9Mbps / 778.9Mbps |
| NAT (PPTP) | 852.2Mbps / 775.9Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 568.3Mbps ESP-SHA256-AES256: 559.8Mbps ESP-SHA384-AES256: 565.6Mbps ESP-SHA512-AES256: 550.0Mbps |
| OpenVPN | 85.1Mbps |
| L2TP VPN Throughput | Unencrypted: 858.7Mbps Encrypted: 467.0Mbps |
| PPTP VPN Throughput | Unencrypted: 876.2Mbps Encrypted: 182.6Mbps |
| SSL VPN Throughput | 86.6Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,489 pps |
| 1,518 Byte Packet forwarding rate | 81275 pps / 81275 pps |
| WIRELESS FEATURES | |
| Wireless functionality | Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Rate Limit Band Steering: based on SSID/Client Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Wireless Security | Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP |
| MAC clone | Modify WAN Address |
| DHCP | DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing RIP OSPF |
| Bandwidth control | IP-Based Bandwidth Control |
| Load balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
| NAT | One to One NAT Multi-Net NAT Virtual Server Port Triggering NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Session Limit | IP-Based Session Limit |
| VPN | |
| GRE | Only in Standalone ModeP |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKEv1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Clients (10) 50 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Clients (5) 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode |
| WireGuard VPN | 20 Tunnels |
| AUTHENTICATION | |
| Web Authentication | No Authentication Simple Password Hotspot (Local User / Voucher / SMS / Radius) External Radius Server External Portal Server LDAP |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Yes, through Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3 Diagnostics (Ping & Traceroute) NTP Synchronize Port Mirroring CLI (Standalone Mode only) Syslog Support |
| Management Features | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | ER703WP-4G-Outdoor Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Ideal for remote areas and outdoor installations
|
|
|
All-in-one device
|
|
|
Designed for outdoor installations
|
|
|
Multiple power options
|
|
|
Easy installation and deployment in both Standalone and Controller modes
|
|
|
Always Online with WiFi 6 AX3000
|
|
|
2 year warranty The following product is covered by a 2 year warranty |
|
