TP-Link Omada EAP723 is a BE3600 Dual-Band WiFi 7 Access Point designed to provide fast, stable and reliable wireless connections in dense user environments, such as businesses, offices, hotels, restaurants and other organizations that require stable, scalable and easy-to-manage Wi-Fi connections. With combined speeds of up to 2882 Mbps and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP723 is the ideal choice for implementing modern, reliable and scalable business networks.
INSTALLATEUR FINDEN
NICHT VERFÜGBARES PRODOTTO, RABATT JETZT 3%

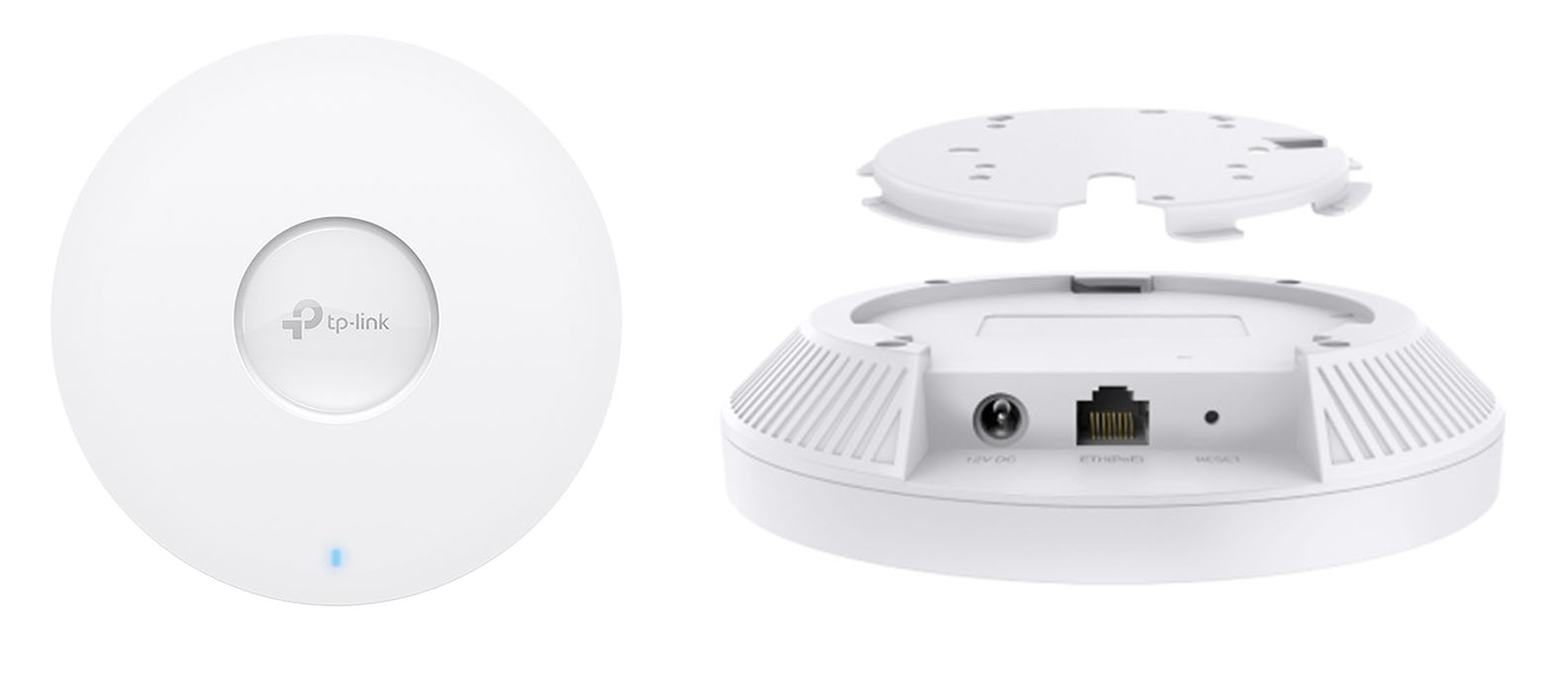

EAP723 CEILING ACCESS POINT DUAL-BAND Wi-Fi 7 - TPLINK OMADA
BE3600 Ceiling Mount Dual-Band Wi-Fi 7 Access Point, equipped with 1×2.5G Ethernet ports. Offers speeds of 2882Mbps (5GHz) + 688Mbps (2.4GHz). Supports power supply via PoE 802.3at or DC 12V/1.5A. Includes 4 internal antennas and advanced features such as MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- Wi-Fi 7 BE3600 : Offers wireless speeds of up to 2882 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band.
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 7 standard, quadruple network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a diameter of 160mm and a thickness of 36.7mm, the EAP773 fits perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP723 |
| HARDWARE FEATURES | |
| Interface | 1× 2.5G Ethernet Port |
| Key | Reset |
| Diet | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Energy consumption | 19.5W (For PoE); 16.8W (For DC) |
| Dimensions (L x W x H) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna type | 2.4GHz: 2× 4.0dBi 5GHz: 2× 5.0dBi |
| Mounting type | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 140㎡(1500 ft²) § |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 5GHz, and 2.4GHz |
| Signal rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless functionality | 4K QAM Seamless Roaming MU-MIMO EHT240 Mesh OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS: 16 (8 on each band) Wireless Schedule Reboot Schedule QoS(WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication |
| Wireless Security | Captive Portal Authentication Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA3-Personal/Enterprise,WPA3-Personal/Enterprise |
| Transmission power | < 25dBm (2.4GHz) < 25 dBm (5GHz, band 1&band 4) < 23 dBm (5GHz, band 2&band 3) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based management | Yes |
| OTHER | |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | EAP723 Installation Guide Ceiling/Wall Mounting Kits Notes: Power Adapter is NOT included. |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Wi-Fi 7: Faster, Smoother, More Powerful
|
|
|
|
|
|
Optimized wired performance with 2.5G PoE+ port With a 2.5 Gigabit Ethernet port, the EAP723 delivers outstanding multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.
|
|
|
Seamless integration into Omada SDN
|
|
|
Enhanced security
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
