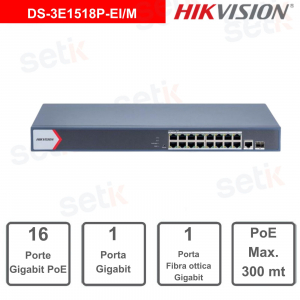

SWITCH GESTITO-16 PORTE POE-1PORTA RJ45-1 PORTA FIBRA OTTICA- GIGABIT

SWITCH GESTITO-16 PORTE POE-1PORTA RJ45-1 PORTA FIBRA OTTICA- GIGABIT
-35%

Il DS-3E1518P-EI/M di Hikvision, è uno switch di rete gestito con 16 Porte PoE Gigabit (IEEE 802.3at/af),1 porte RJ45 Gigabit e 1 Porta fibra ottica Gigabit- Protezione dai fulmini 6kV - MAC Address Table 8K - Capacità di switching 56Gbps - Cache interna 4,1Mbits - Packet Forward Rate 41,66 Mbps - Distanza di trasmissione 300m - Fabbricato in metallo - Per montaggio a muro o a scrivania - Tecnologia PoE Watchdog.



Artikel-Nr.: DS-3E1518P-EI/M

Marke: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


HIKVISION: NETTOPREISE×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

HIKVISION ALARM×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


SWITCH DI RETE GESTITO - 16 PORTE ETHERNET POE GIGABIT - 1 PORTA GIGABIT RJ45 -1 PORTA FIBRA OTTICA GIGABIT- POE WATCHDOG - TRASMISSIONI A 300M - HIKVISION - DS-3E1518P-EI/M

Hikvision
Switch ethernet gestito - Hikvision - DS-3E1518P-EI/M
16 Porte PoE Gigabit (IEEE 802.3af,IEEE 802.3at) - 1 Porta Gigabit RJ45 (per uplinking)-1 Porta Fibra Ottica Gigabit Protezione dai fulmini 6kV - MAC Address Table 8K - Capacità di switching 56Gbps - Cache interna 4,1Mbits - Packet Forward Rate 41,66 Mbps - Distanza di trasmissione 300m - Fabbricato in metallo - Per montaggio a muro o a scrivania - Tecnologia PoE Watchdog. - Alimentazione: 100~240 V AC, 50/60 Hz, Max. 2.5 A
PoE Budget 130W

Dettagli prodotto

  • Switch di rete - Gestito - HIKVISIONDS-3E1518P-EI/M
  • Porte: 16 porte Gigabit PoE (IEEE 802.3af, IEEE 802.3at), 1 porta Gigabit RJ45 per uplinking, 1 porta in fibra ottica Gigabit.
  • Protezione dai fulmini: 6kV.
  • Tabella degli indirizzi MAC: 8K.
  • Capacità di switching: 56Gbps.
  • Cache interna: 4,1 Mbits.
  • Velocità di trasmissione dei pacchetti (Packet Forward Rate): 41,66 Mbps.
  • Distanza di trasmissione: 300m.
  • Materiale di fabbricazione: Metallo.
  • Montaggio: Montaggio a parete o su scrivania.
  • Tecnologia PoE Watchdog: Supportata.
  • Alimentazione: 100~240 V AC, 50/60 Hz, Max. 2.5 A.
  • Budget PoE: 130W.
  • Dimensioni: 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
  • Case fabbricato in metallo
  • Peso: 2,7kg
  • Temperatura di funzionamento: 0 °C to 45 °C

Scheda tecnica

General

Shell

Metal material

Net Weight

2.7 kg (5.9 lb)

Gross Weight

2.9 kg (6.4 lb)

Dimensions (W × H × D)

440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')

Operating Temperature

0 °C to 45 °C (0 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

100~240 V AC, 50/60 Hz, Max. 2.5 A

Installation Mode

Rack (equipped with mounting ears)

Max. Power Consumption

150 W

Power Consumption in Idle

20 W

Surge Protection

6 kV

Network Parameters

Ports

16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table

8 K

Switching Capacity

56 Gbps

Packet Forwarding Rate

41.66 Mpps

Internal Cache

4.1 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af,IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 16

Max. Port Power

30 W

PoE Power Budget

130 W

Software Function

Long Range

Ports 1 to 16: up to 300 m.

Long range performance may vary depend on camera model or cable condition.



Port Isolation

Ports 1 to 16: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1 to 16: auto detect and restart the cameras that do not respond.



Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation.

Support 8 aggregation groups.



Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.



VLAN

VLAN is used for network scale planning and network health improvement. Support 802.1Q.

Configurable VLAN ID from 1-4094. Support Trunk, Access port mode.

Support Max. 32 VLAN.



HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:



System Maintenance

Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Support 802.1ab LLDP for peer device discovery.

Support port mirroring for fault locating.

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:

2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN

62368-1: 2014+A11: 2017)



Chemistry

CE-RoHS (201165EU); WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
