UR FOG - Sistema antifurto con nebbiogeno - Fino a 100m3 - 2 relay Ajax inclusi - A batterie cartuccia da 125ml inclusa
UR FOG Anti-theft Fog System - 2 Relay AJAX 38204.19.NC1 #38204 included, 24/12 V battery and 125ml bag (not included) . The only battery-powered fog system with the highest level of security and zero energy consumption. Shoots up to 1 00 m3 of dense fog in 60 seconds - Ideal for protection against theft and intrusion in garages, homes, offices etc. Compatible with any alarm system. Ideal for integrating wireless alarms. - FPUB300A.
INSTALLATEUR FINDEN
FOG ANTI-THEFT DEVICE - UR FOG - FPUB300A
|
URFog FPUB300A Nebulization system Ideal for protection against theft and intrusion in garages, homes, offices, etc. |
Product details
- Fog generator - UR FOG - FPUB300A
- Emission up to 100m3 of fog
- 2 Relay AJAX 38204.19.NC1 #38204
- 24/12 V battery and 125ml bag (not included)
- Smoke liquid certified as not harmful to health
- Programmable firing in seconds
- White color
- Battery operated
Technical data sheet
| Fogger dimensions | L 20.0 x D 15.0 x H 30.0 cm |
| Weight including batteries | 7.6 kg |
| Weight excluding batteries | 1.9 kg |
| Colours | Pure white RAL 9010 |
| Compatible with any alarm system | Yes |
| OEM (Original Equipment Manufacturer) version | Available |
| Mounting positions | Vertical (wall/floor) |
| Operating temperature range | -10°C +50°C |
| Inputs | 3 wired inputs: arming, dispensing and PIR confirmation/panic |
| Outputs | 3 wired outputs (max. 16 V - 50 mA): fluid, fault, low battery |
| Serial ports | 2 RS232 serial connectors with standard protocol for expansion cards |
| Tamper microswitch for cover | Optional |
| External signaling LEDs | 3: Red Fault - Green Ready - Blue Armed |
| Warning buzzer | Yes |
| LAN/WiFi Card | Optional |
| Registration on Active Cloud | Yes |
| Multiple-hole and directional nozzles | No |
| Nozzle extension | No |
| ELECTRICAL SPECIFICATIONS | |
| Power supply | Battery |
| Battery model | 2 VRLA 12 V - 9 Ah custom-made lead acid batteries |
| Autonomy without external power supply | Approx. 6 months (full disbursement guaranteed at 6 months) |
| Autonomy with external power supply | No limits. Recommended battery replacement every 2 years |
| Integrated charger | yes with two different charging currents: 10-16 V / 350 mA and 1 A |
| External charger | Optional |
| Average consumption | Low power mode: 2-3 mW Always on mode: 1.2 W |
| Heating from cold | Immediate at the moment of dispensing |
| Temperature management | Patented self-balancing dispensing management |
| FOG FLUID | |
| Cartridge capacity | 125 ml |
| Unpressurized cartridge | Yes |
| WHITE OUT FOOD GRADE fluid | Yes |
Further details
 |
The fastest fog generators in the world Up to 200 m3 in 15 seconds. It is impossible to steal what is impossible to see this sentence makes great sense when we mean UR Fog since in a few seconds you can not see anything. |
 |
The thickest fog Thanks to the innovative formulation of the fluid with a high percentage of glycol it ensures a dense fog that is totally impenetrable to visibility. |
 |
Removable cylinders Removable and no charging required. |
 |
Low energy consumption The perfect insulation system offers very low energy consumption which saves costs compared to other misting systems. |
 |
Nozzle tamper Another unique, patented and very useful advantage that allows to automatically detect if the nozzle is tampered with and sends a warning signal |
 |
Smart bus standard protocol A single serial bus to connect an additional card to the electronic board that allows you to easily interface the machine with alarms and control the misting system even remotely. A standard protocol for all machines. |
 |
Innovative technology and performance UR FOG fogging systems are innovative in their technology and performance, in order to guarantee maximum protection against theft. |
 |
Safe and certified UR FOG misting systems are certified according to European regulations. The fog liquid is tested and is absolutely safe. They are not dangerous for objects, animals, people and leave no residue. |
Accessories
UR-FOG ACCESSORIES:
 |

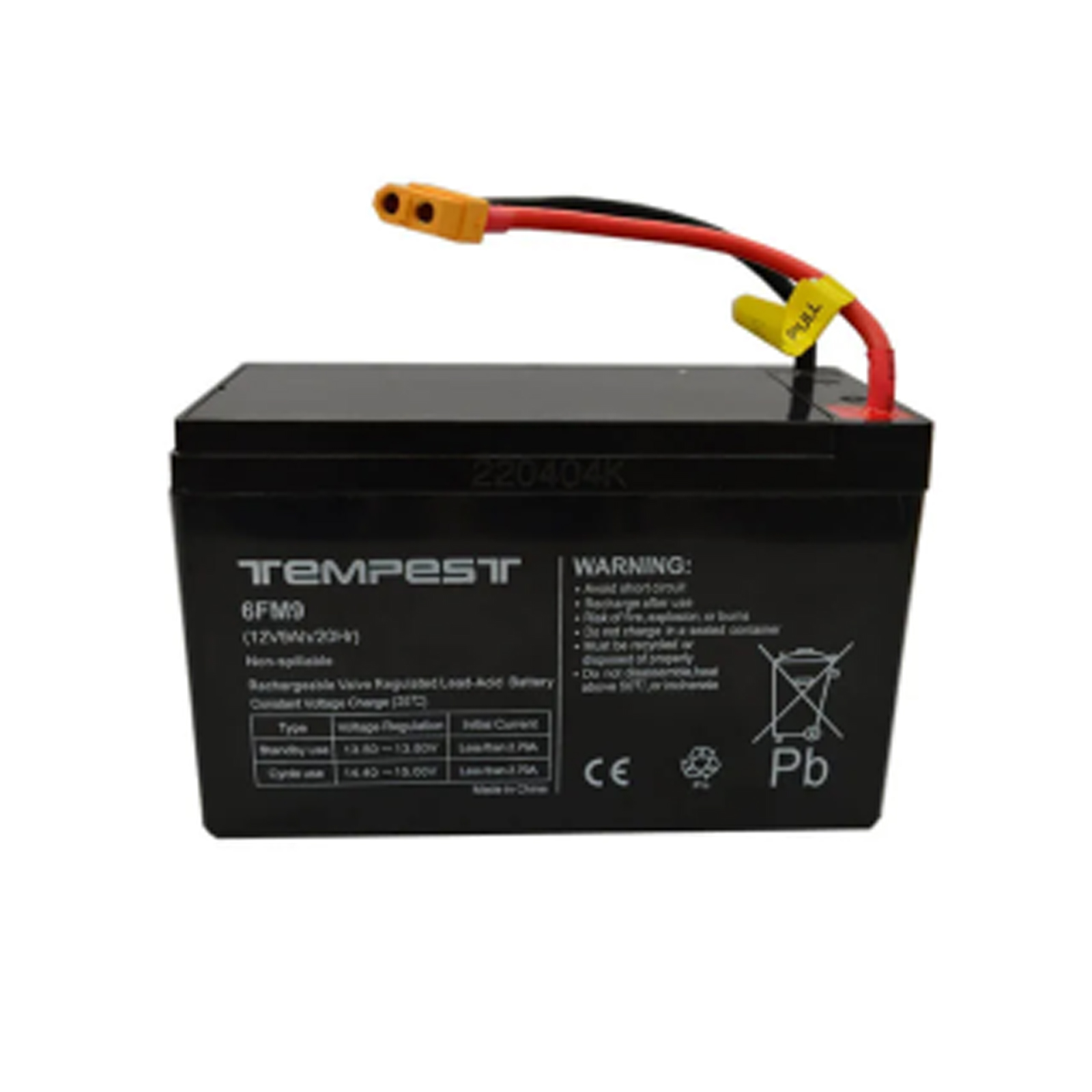

FPUBBY - Battery 12V 9Ah |
 |
URCLWFC - Active Cloud LAN Card (Optional WiFi Antenna) |
 |
URCLWFA - Active Cloud WiFi Antenna |
 |
FPUBAC - 24V - 12V DC/DC adapter cable (for Active Cloud card, relays etc) |
 |
FPUB220PS - Power supply 220V |
 |

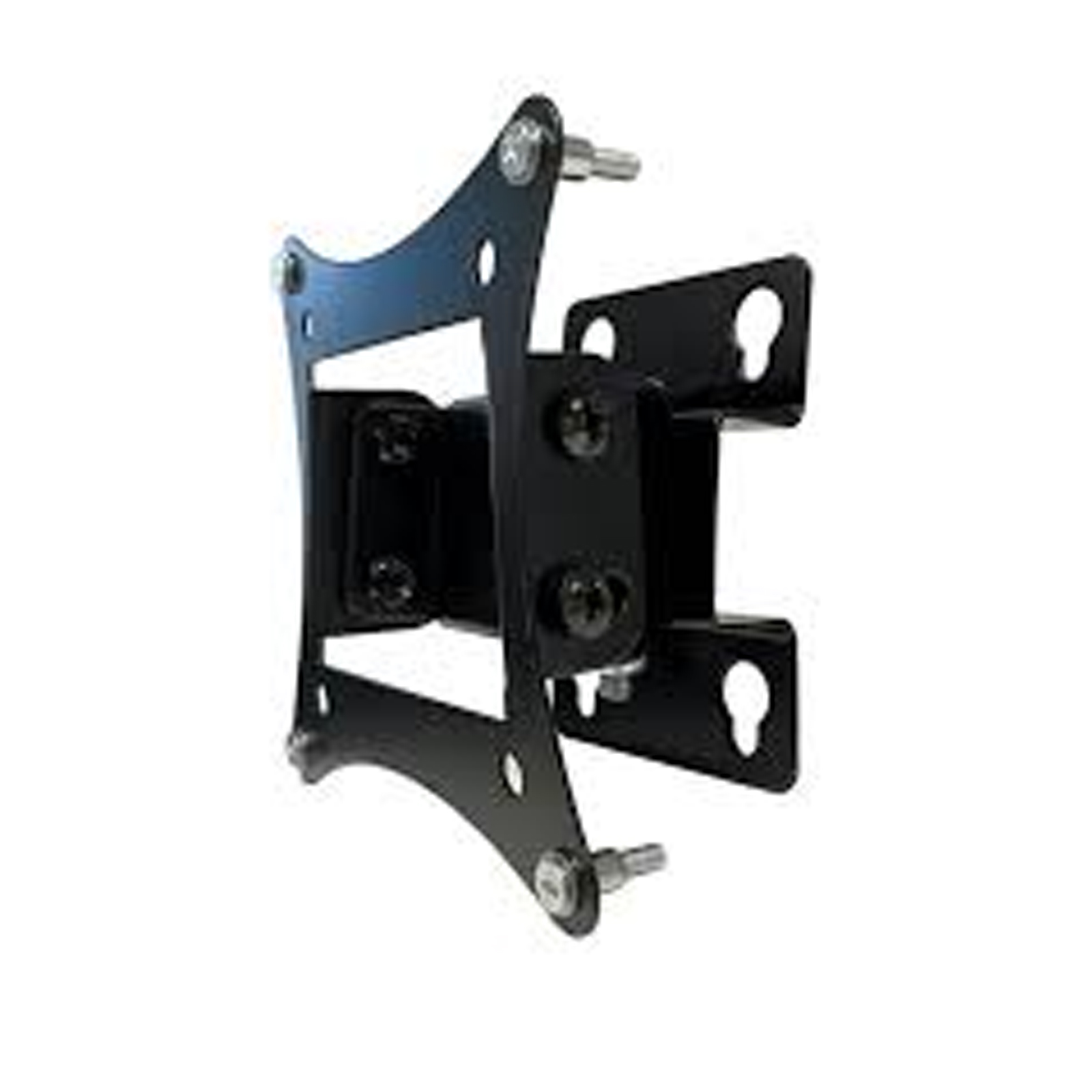

FPUWBT - Adjustable Wall Bracket |
 |
FPUBFT - Refill fluid 125 ml FOOD GRADE |
Download
WHO IS UR FOG?
UR Fog is one of the most solid Italian companies in the fog systems market.
The UR FOG team is made up of professionals and engineers with over 20 years of experience both in the development of new products and in the management of distribution all over the world. From 2012 to today they have obtained several patents, created new technologies such as the single and double cylinder born right at the beginning of the activity and introduced important innovations such as the adjustable nozzle.
One of the strong points of this company and thanks to which they are very often chosen, is the speed of fog ejection, a critical aspect for the products of many other competing brands.
