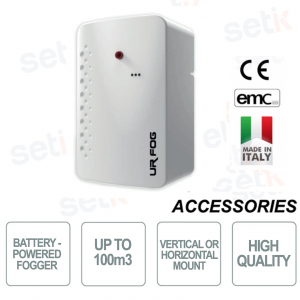

UR FOG - Anti-theft system with fog generator - Up to 100m3 - Battery operated 125ml cartridge not included

UR FOG - Anti-theft system with fog generator - Up to 100m3 - Battery operated 125ml cartridge not included
-25%

UR FOG - BAT 300 Fog Alarm, the only battery-powered fog system with the highest level of security and zero energy consumption. Shoots up to 100 m3 of thick fog in 60 seconds - Supports 125ml bag and batteries (not included) - Ideal for protection from theft and intrusion in garages, homes, offices etc. Compatible with any alarm system. Ideal for integrating wireless alarms. - FPUB300.



Artikel-Nr.: FPUB300

Marke: UR FOG

INSTALLATEUR FINDEN



FOG ANTI-THEFT ALARM - UR FOG - BAT 300

FPUB300 bunner.jpg

URFog BAT 300
URFOG Fog System

Nebulization system Ideal for protection against theft and intrusion in garages, homes, offices, etc.
Shoots up to 100 m3 of dense fog in about 60 seconds, supports 125ml bag and batteries (not included) battery-operated fog machine with the highest level of safety and zero energy consumption.


Product details

  • Fog Generator - UR FOG - FPUB300
  • Emission up to 100m3 of fog
  • Smoke liquid certified as not harmful to health
  • 125ml bag (not included)
  • Programmable firing in seconds
  • White color
  • Battery operated (not included)

Technical data sheet

Fogger dimensions L 20.0 x D 15.0 x H 30.0 cm
Weight including batteries 7.6 kg
Weight excluding batteries 1.9 kg
Colours Pure white RAL 9010
Compatible with any alarm system Yes
OEM (Original Equipment Manufacturer) version Available
Mounting positions Vertical (wall/floor)
Operating temperature range -10°C +50°C
Inputs 3 wired inputs: arming, dispensing and PIR confirmation/panic
Outputs 3 wired outputs (max. 16 V - 50 mA): fluid, fault, low battery
Serial ports 2 RS232 serial connectors with standard protocol for expansion cards
Tamper microswitch for cover Optional
External signaling LEDs 3: Red Fault - Green Ready - Blue Armed
Warning buzzer Yes
LAN/WiFi Card Optional
Registration on Active Cloud Yes
Multiple-hole and directional nozzles No
Nozzle extension No
ELECTRICAL SPECIFICATIONS
Power supply Battery
Battery model 2 VRLA 12 V - 9 Ah custom-made lead acid batteries
Autonomy without external power supply Approx. 6 months (full disbursement guaranteed at 6 months)
Autonomy with external power supply No limits. Recommended battery replacement every 2 years
Integrated charger yes with two different charging currents: 10-16 V / 350 mA and 1 A
External charger Optional
Average consumption Low power mode: 2-3 mW Always on mode: 1.2 W
Heating from cold Immediate at the moment of dispensing
Temperature management Patented self-balancing dispensing management
FOG FLUID
Cartridge capacity 125 ml
Unpressurized cartridge Yes
WHITE OUT FOOD GRADE fluid Yes

Further details

Emissione nebbia rapida

The fastest fog generators in the world

Up to 200 m3 in 15 seconds. It is impossible to steal what is impossible to see this sentence makes great sense when we mean UR Fog since in a few seconds you can not see anything.

Nebbia ad alta densità

The thickest fog

Thanks to the innovative formulation of the fluid with a high percentage of glycol it ensures a dense fog that is totally impenetrable to visibility.

Sostituzione cilindro semplice

Removable cylinders

Removable and no charging required.

Basso consumo di energia

Low energy consumption

The perfect insulation system offers very low energy consumption which saves costs compared to other misting systems.

Nozzle Tamper

Nozzle tamper

Another unique, patented and very useful advantage that allows to automatically detect if the nozzle is tampered with and sends a warning signal

Protocollo Standard Smart Bus

Smart bus standard protocol

A single serial bus to connect an additional card to the electronic board that allows you to easily interface the machine with alarms and control the misting system even remotely. A standard protocol for all machines.

Tecnologie UR FOG in continua evoluzione

Innovative technology and performance

UR FOG fogging systems are innovative in their technology and performance, in order to guarantee maximum protection against theft.

Prodotto certificato UR FOG

Safe and certified

UR FOG fogging systems are certified according to European regulations. The fog liquid is tested and is absolutely safe. They are not dangerous for objects, animals, people and leave no residue.

Accessories

UR-FOG ACCESSORIES:

FPUBBY.jpg FPUBBY - Battery 12V 9Ah
URCLWFC.jpg URCLWFC - Active Cloud LAN Card (Optional WiFi Antenna)
URCLWFA.jpg URCLWFA - Active Cloud WiFi Antenna
FPUBAC.jpg FPUBAC - 24V - 12V DC/DC adapter cable (for Active Cloud card, relays etc)
FPUB220PS.jpg FPUB220PS - Power supply 220V
FPUWBT.jpg FPUWBT - Adjustable Wall Bracket
FPUBFT.jpg FPUBFT - Refill fluid 125 ml FOOD GRADE

Download

No brochure available


WHO IS UR FOG?

Nebbiogeni Antifurto UR FOG

UR Fog is one of the most solid Italian companies in the fog systems market.
The UR FOG team is made up of professionals and engineers with over 20 years of experience both in the development of new products and in the management of distribution all over the world. From 2012 to today they have obtained several patents, created new technologies such as the single and double cylinder born right at the beginning of the activity and introduced important innovations such as the adjustable nozzle.
One of the strong points of this company and thanks to which they are very often chosen, is the speed of fog ejection, a critical aspect for the products of many other competing brands.

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
