Prolite IIYAMA LH6564UHS-B1AG Monitor - 65 Inch Digital Signage - Resolution 3840 x 2160 4K UHD - 8.3 Megapixels - Integrated WiFi - Contrast 5000:1 - Response in 6.5ms - Brightness 500cd/m2 - AG glass treatment, matte finish - Video interface HDMI, USB-C - MiniJack in/out - Speakers 2 x 10W - RS-232c x1 RJ45 (LAN) x1 IR x1 - 24/7 reliability ensures its integration into any business environment - Horizontal and vertical orientation - VESA mounting 500x500 mm - Android 14 Operating System, iiSignage, FailOver, EShare.
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

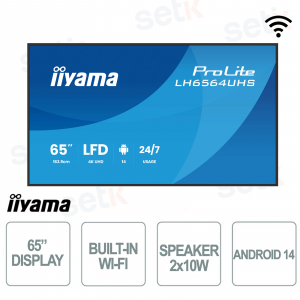

65" IIYAMA PROLITE MONITOR WITH ANTI-GLARE DISPLAY - 4K UHD - HDMI - USB-C - STEREO SPEAKERS - LH6564UHS-B1AG

65" VA AG IIYAMA Monitor - AG Coated Glass to protect the device glass from reflections - LH6564UHS-B1AG
Size: 65 Inch - VA AG display - Resolution 3840 x 2160 4K UHD - Response time 6.5ms - Contrast 5000:1 - Brightness 500cd/m2 - 1x HDMI - 1x USB-C - Interface RJ45 x1 - RS232c x1 - IR x1 (3.5mm stereo mini) - 2x10W stereo speakers - Minijack in/out - For 24/7 continuous operation - Ideal for use in portrait/landscape orientation - 2x USB 2.0 ports - VESA 500x500 - Internal power supply - Power supply: AC 100 - 240/V, 50Hz - Dimensions 1457.7 x 832.4 x 68.8mm - 3 Years Direct Manufacturer's Warranty!
Product details
- Monitor 65" VA AG - IIYAMA - LH6564UHS-B1AG
- Type: VA AG
- 65 Inch Display
- Anti-reflective glass treatment (AG Coated)
- WIFI
- Resolution 3840 x 2160 4K UHD
- Response time 6.5ms
- Contrast 5000:1
- Brightness: 500cd/m2
- 2xUSB (v.2.0)
- 1x HDMI - 1x USB-C
- 2x10W Stereo Speakers
- Minijack x1
- Can be used horizontally or vertically
- RS232c x1
- RJ45 (LAN) x1
- IR x1
- Ability to operate continuously 24/7
- VESA Mount Support: 500x500mm
- Weight: 17.7kg
- Supported operating temperature: 0°C - 40°C
- Dimensions: 1457.7 x 832.4 x 68.8mm
- Color: Black
Technical data sheet
Model | LH6564UHS-B1AG |
DISPLAY CHARACTERISTICS | |
Design | Thin bezel |
Diagonal | 65", 164cm |
Panel | VA, Anti-Glare coated glass, matte finish, haze 25% |
Native resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
Aspect ratio | 16:9 |
Panel brightness | 500 cd/m² |
Static contrast | 5000:1 |
Response time (GTG) | 6.5ms |
Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Colour support | 1.07G (8 Bits+FRC) |
Horizontal Sync | 57 - 62kHz |
Viewable area W x H | 1428.5 x 803.5mm, 56.2 x 31.6" |
Bezel width (sides, top, bottom) | 14mm, 14mm, 14mm |
Pixel pitch | 0.372mm |
Bezel color and finish | black, matte |
INTERFACES/CONNECTORS/CONTROLS | |
Digital signal input | HDMI x2 (v.2.0, max. 3840x2160 @60Hz) USB-C x1 (DP Alt, 15W PD) |
Monitor control input | RS-232c x1 (2.5mm sub-mini jack) RJ45 (LAN) x1 IR x1 (3.5mm stereo mini) |
Audio output | Mini-jack x1 (3.5mm) Speakers 2 x 10W |
Monitor control output | RS-232c x1 (2.5mm) IR loop through x1 (3.5mm) |
HDCP | v.1.4 & 2.0 |
USB ports | x2 (v.2.0) |
FEATURES | |
Integrated software | Android 14 OS, iiSignage², iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager |
WiFi | yes (Built-in, 2.4G/ 5G) |
Hardware | CPU: A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB |
Extra | Wall mounting kit included (VESA 400x300mm) |
Max. non-stop operating time | 24/7 |
Anti-image retention | yes |
Media playback | yes |
Housing (bezel) | metal |
GENERAL | |
OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
Control buttons | Power Indicator, Power button, Remote Sensor |
User controls | network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, color temp., color control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, OSD information), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export) |
Plug&Play | DDC2B |
MECHANICAL | |
Orientation | landscape, portrait |
Fanless design | yes |
VESA mounting | 500 x 500mm |
Operating temperature range | 0°C - 40°C |
Storage temperature range | - 20°C - 60°C |
MTBF | 50,000 hours (excluding backlight) |
ACCESSORIES INCLUDED | |
Cables | power, HDMI, RS-232c |
Guides | quick start guide, safety guide |
Other | Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes |
Remote control | yes (batteries included) |
POWER MANAGEMENT | |
Power supply unit | internal |
Power supply | AC 100 - 240V, 50/60Hz |
Power usage | 184W typical, 0.5W stand by, 0.3W off mode |
POWER MANAGEMENT | |
Regulations | CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS) |
Energy efficiency class (Regulation (EU) 2017/1369) | G |
DIMENSION/WEIGHT | |
Product dimensions W x H x D | 1457.7 x 832.4 x 68.8mm |
Box dimensions W x H x D | 1640 x 990 x 164mm |
Weight (without box) | 17.7kg |
Weight (with box) | 27.5kg |
Further details
![]() |
Resolution 3840 x 2160 4K UHD - 8.3 MegaPixels With a resolution of 3840 x 2160 4K UHD the monitor displays high definition images. This means that you can fit more information on the screen. |
![]() |
ELECTRIC DISPLAY VA 65 " display. Static contrast: 5000:1 |
![]() |
This device has built-in WIFI connection technology! |
![]() |
Stereo Speakers The monitor is equipped with 2 x 10W speakers (Stereo). High quality sound. It also features a mini jack input and output. |
|
Equipped with a LAN PORT and a RS232C |
![]() |
There is a slot for inserting MicroSD cards. |
![]() |
VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA-compatible mount. For this model, the VESA standard is 500x500mm. |
![]() |
This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
