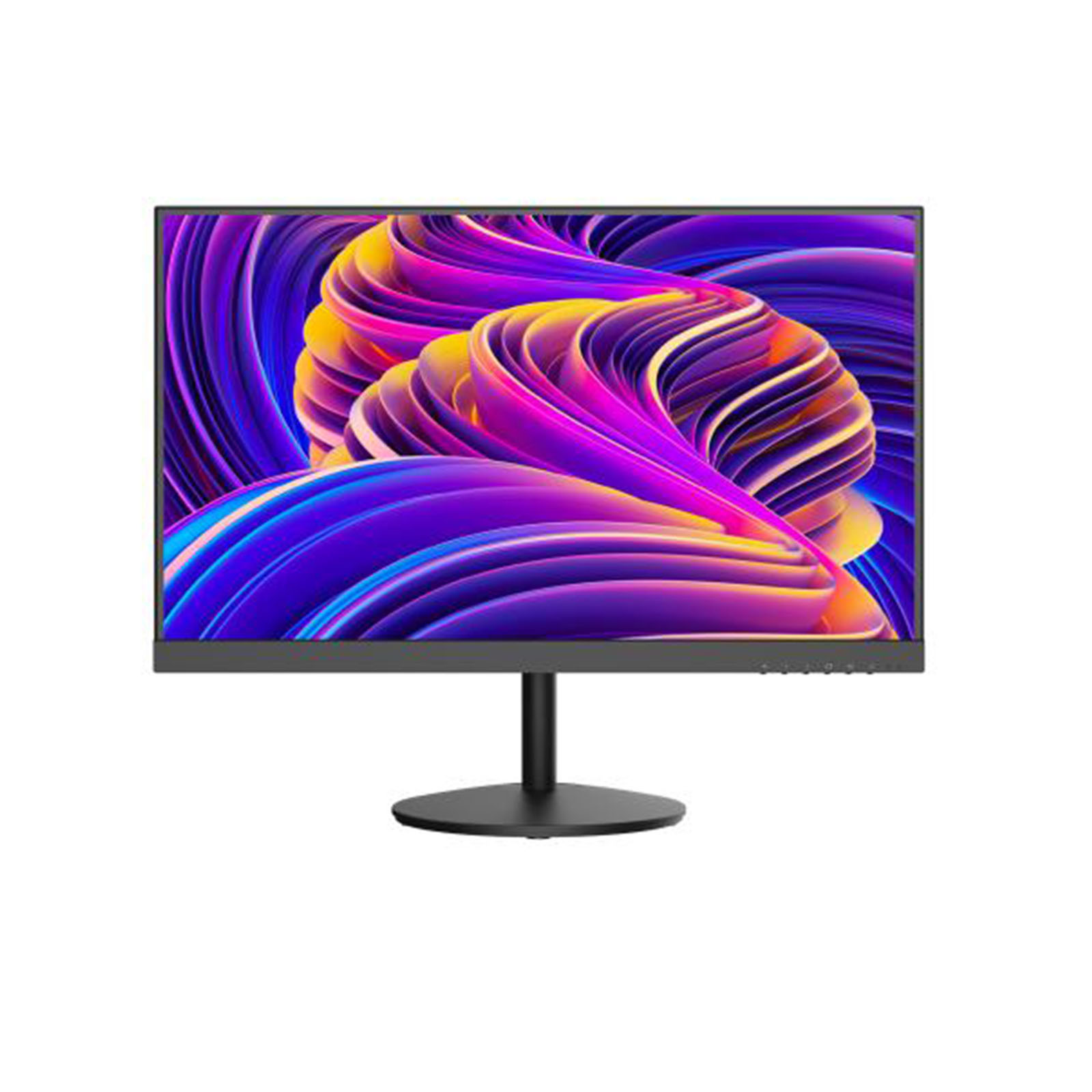

21.5 INCH LED MONITOR - FULL HD - 6.5MS - 75HZ - VGA - HDMI - SPEAKERS - HIKVISION - DS-D5222F2-1V1S
DESCRIPTION:
DS-D5232F2-1V1S is a 21.5-inch Full HD (1920x1080) LED display monitor , ideal for professional video surveillance and security applications . Thanks to anti-glare technology and a wide viewing angle , it offers clear, sharp and distortion-free images even in environments with variable lighting. It is equipped with HDMI, VGA inputs and integrated speakers , ensuring complete connectivity and an effective audio-video experience. Low power consumption , compact design and 24/7 reliability make it perfect for installations in control rooms and continuous monitoring environments.
Quality product.
Product Details:
|
Technical data sheet
| DS-D5222F2-1V1S | |
| Display | |
| Screen Size | 21.45 inches |
| Active Display Area | 478,656 (H) mm × 260,280 (V) mm |
| Resolution | 1920 × 1080 |
| Backlight | E-LED |
| PixelPitch | 0.241mm (H) × 0.241mm (V) |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° (H) / 178° (V) |
| Color Depth | 8 bit, 16.7M |
| Contrast Ratio | 3000 : 1 |
| Response Time | 6.5 ms |
| Refresh Rate | Max. 75Hz , Typ. 60 Hz |
| Haze | Haze 25%, 3H |
| Reliability | 7 × 24 H |
| Color Gamut | 72% NTSC |
| Interface | |
| Video & Audio Input | CVBS x 1，HDMI1.4 x 1，DVI x 1，VGA x 1，Audio IN x 1 |
| Video & Audio Output | Speaker(8Ω 2W) × 2 |
| Data Transmission Interface | USB2.0 (support program upgrade and USB online playback) × 1 |
| Power | |
| Power Supply | 100~240 VAC, 50/60 Hz, 0.5A Max |
| Power Consumption | ≤ 25W |
| Standby Consumption | ≤ 0.5W |
| Working Environment | |
| Working Temperature | 0℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 10% to 80% RH (Non-Condensing) |
| Storage Temperature | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉) |
| Storage Humidity | 5% to 90% RH (Non-Condensing) |
| General | |
| Casing Material | Plastic |
| VESA | 75mm × 75mm (4 - M4 × 6mm) |
| Bezel Width | 1.89mm (top/left/right), 22.55mm (bottom) |

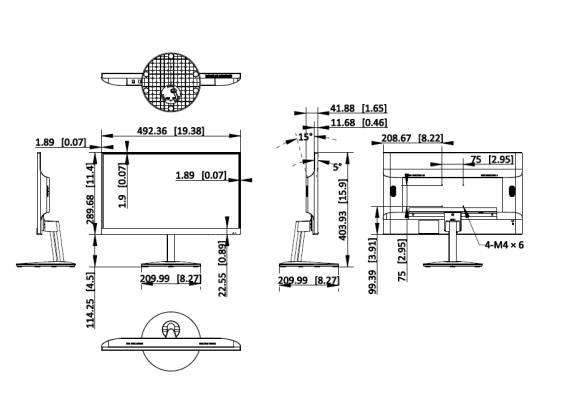

| Product Dimensions (W × H × D) | With base: 492.36 (W) mm × 289.68 (H) mm × 41.88 (D) mm （19.38″ × 11.4″ × 1.65″) Without base: 492.36 (W) mm × 403.93 (H) mm × 209.99 (D) mm（19.38″ × 15.9″ × 8.27″) |
| Package Dimensions (W × H × D) | 600 (W) mm × 400 (H) mm × 115 (D) mm（23.62″ × 15.75″ × 4.53″ ） |
| Net Weight | 2.65 ± 0.5 kg |
| Gross Weight | 3.9 ± 0.5 kg |
| Packing List | Monitor × 1, Component base × 1, AC power cable (1.5 m) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1 |
| Remarks | The base is included by default. The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information |
Further details
 |
21.5" 1920 × 1080 (FullHD) LED display |
 |
VESA mount VESA mount compatibility means you can easily mount the LCD to any VESA compatible stand. This model has a VESA size of 75x75mm.
|
|
|
This product features CVBS x 1，HDMI1.4 x 1，DVI x 1，VGA x 1，Audio IN x 1 |
 |
This product features a response time of 6.5 ms. |
 |
This product is covered by a 24 month warranty. |
