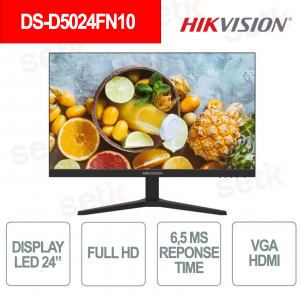

DS-D5024FN10: 24" Full HD LED monitor - 75Hz - 6.5ms - VGA - HDMI - Hikvision

DS-D5024FN10: 24" Full HD LED monitor - 75Hz - 6.5ms - VGA - HDMI - Hikvision
-35% Neu

DS-D5024FN10 is a 24-inch Full HD (1920x1080) LED display monitor, designed to offer high performance in video surveillance and security systems. Thanks to the anti-glare technology and the wide viewing angle , it ensures clear and detailed images even in environments with variable lighting. It is equipped with HDMI, VGA and BNC inputs , offering wide compatibility with DVR, NVR and other equipment. The slim and modern design, combined with low power consumption and continuous 24/7 operation, makes it ideal for professional installations. Hikvision



Artikel-Nr.: DS-D5024FN10

Marke: Hikvision

EAN: 6942160434759

INSTALLATEUR FINDEN



24 INCH LED MONITOR - FULL HD - 6.5MS - 75HZ - SPEAKER - VGA - HDMI - HIKVISION - DS-D5024FN10

DS-D5024FN10

DESCRIPTION:

DS-D5024FN10 is a 24-inch Full HD (1920x1080) LED display monitor , designed to offer high performance in video surveillance and security systems . Thanks to the anti-glare technology and the wide viewing angle , it ensures clear and detailed images even in environments with variable lighting. It is equipped with HDMI, VGA and BNC inputs , offering wide compatibility with DVR, NVR and other equipment. The slim and modern design, combined with low power consumption and continuous 24/7 operation , makes it ideal for professional installations.

Quality product.

Product Details:

DS-D5027F2-1P2
  • Monitors - Hikvision - DS-D5024FN10
  • 24" Full HD LED Display
  • Thin bezel design
  • Contrast: 4000:1
  • Viewing angle: 178°(H)/178°(V)
  • Response time: 6.5ms
  • Image refresh rate: 75Hz
  • 1x HDMI
  • 1x VGA
  • Dimensions without base: 538.4 x 326.35 x 37.5mm
  • Supported operating temperature: 0~40°C
  • Relative humidity: 20%~80%
  • Weight: 2,634 kg
  • VESA: 100x100mm
  • Power supply: DC 12V, 2.5A
  • Typical consumption: 30W
  • Accessories included: HDMI cable, Power supply, metal base
  • 24 month warranty

Technical data sheet

DS-D5024FN10
Display
Screen Size 23.8 inches
Active Display Area 527.04mm (H) × 296.46mm (V)
Resolution 1920 × 1080
Backlight E-LED
PixelPitch 0.2745 (H) mm × 0.2745 (V) mm
Brightness 250 cd/m²
Viewing Angle 178° (H) / 178° (V)
Color Depth 8 bit
Contrast Ratio 4000 : 1
Response Time 6.5 ms (typ)(G to G)OD 5ms
Refresh Rate Max. 75Hz , Typ. 60 Hz
Haze Anti-Glare, 3H(Without Haze)
Reliability 7 × 24 H
Color Gamut 72% NTSC
Interface
Video & Audio Input VGA × 1,HDMI 1.4 × 1
Video & Audio Output It is not
Data Transmission Interface It is not
Control Interface It is not
Power
Power Supply DC 12V, 2.5A
Power Consumption ≤ 30W
Standby Consumption ≤ 0.5W
Working Environment
Working Temperature 0℃ to 40 ℃ (32 ℉ to 104 ℉)
Working Humidity 20% to 80% RH (Non-Condensing)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 20% to 80% RH (Non-Condensing)
General
Casing Material Plastic
VESA 100mm × 100mm (4-M4 × 10mm)
Bezel Width 1.8 mm (top/left/right), 21.4 mm (bottom)
Product Dimensions (W × H × D) 538.40 (W) mm × 326.35 (H) mm × 37.50 (D) mm(without stand)
538.40 (W) mm × 407.10 (H) mm × 186.37 (D) mm(with stand)
Package Dimensions (W × H × D) 600 (W) mm × 408 (H) mm × 94 (D) mm
Net Weight 2.634 ± 0.5 kg
Gross Weight 3.340 ± 0.5 kg
Packing List Monitor × 1, Component base × 1, Power adapter (12 V, 2.5 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
Remarks The base is included by default.
The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information

Further details

Display led retroilluminato

24" 1920 × 1080 (FullHD) LED display

Attacco vesa

VESA mount

VESA mount compatibility means you can easily mount the LCD to any VESA compatible stand.

This model has VESA dimensions of 100x100mm.

Attacco VESA

Uscita VGA


This product features 1x HDMI port and 1x VGA port

6.5 ms This product features a response time of 6.5ms.
Italian Guarantee Icon This product is covered by a 24 month warranty.
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
