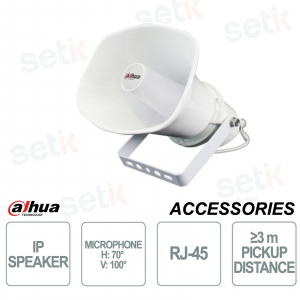

IP Speaker with Built-in Microphone - More than 3m - PoE+ - RJ-45 - IP66 - Dahua

IP Speaker with Built-in Microphone - More than 3m - PoE+ - RJ-45 - IP66 - Dahua
-57%

VCS-SH30 - Speaker IP with built-in microphone - 70° vertical and 100° vertical coverage, with a detection range of over 3m - Audio playback frequency: 250Hz ~ 16kHz - 15W speaker output SD slot (512MB and TF) - Weight 1.8Kg - Ports: 1x RJ-45, 1x PoE+ - IP66 protection - White color. Dahua



Artikel-Nr.: VCS-SH30

Marke: Dahua

EAN: 6923172562401

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DAHUA: UNTER DEM EINSTANDSPREIS×


 UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
 Entdecken Sie die Promo jetzt >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IP SPEAKERPHONE WITH BUILT-IN MICROPHONE - 3M RANGE - DAHUA TECHNOLOGY - VCS-SH30

Prodotto Marca Dahua
VCS-SH30 - Speaker IP with built-in microphone - Dahua
70° vertical and 100° vertical coverage, with detection range over 3m - Audio playback frequency: 250Hz ~ 16kHz - 15W speaker output SD slot (512MB and TF) - Weight 1.8Kg - Ports: 1x RJ-45, 1x PoE+ - IP66 protection - White color.

Product details

VCS-SH30
IP Speaker - Dahua - VCS-SH30
Built-in microphone
Bidirectional 70° vertical, 100° horizontal
1 MIC input 15mV
Playback frequency: 250Hz ~ 16kHz
Color: White
High quality product
Net weight: 1.8Kg
15W 8Ω integrated amplifier
PoE+
1 RJ-45 port
Power consumption 15W
Operating temperature: –40 °C to +60 °C
Product size: 225mm × 170mm × 250mm

Technical data sheet

Model VCS-SH30
Microphone
Type Built-in one microphone switch
Pickup Distance ≥3 m
Frequency Response 50Hz-12KHz
MIC Input 15mV
Speaker
Max Sound Pressure Level 108dB
SNR ≥75dB
Frequency Response 250Hz-16KHz
Coverage Pattern H: 70°; V: 100°
Speaker Output 15W
Amplifier
Amplifier Description Built-in 15W and 8Ω amplifier
Interface
TF Card Interface Supports TF card storage
MIC Input Pickup distance ≥ 3 m (9.84 ft), built-in 1 microphone switch
Network
Network Port 1 × RJ-45 port
Network Protocol TCP, UDP, ARP, ICMP, IGMP, DHCP, IGMP, HTTP, SIP, ONVIF
General
Audio Protocol MP3, G.711a/u
Storage 512MB and TF card
Power Input PoE+ (IEEE 802.3at), 24 VDC, 1 A (Standby)
Power Consumption 15W
Operating Temperature –40 °C to +60 °C (–40 °F to +140°F)
Operating Humidity 60%–95% (RH), non-condensing
Protection Level IP66
Certifications CE EMC, CE LVD
Product Dimensions 225 mm × 170 mm × 250 mm (8.86" × 6.69" × 9.84") (L × W × H)
Packaging Dimensions 240 mm × 200 mm × 275 mm (9.45" × 7.87" × 10.83") (L × W × H)
Net Weight 1.8kg (3.97lb)
Gross Weight 2.5kg (5.51lb)

Further details

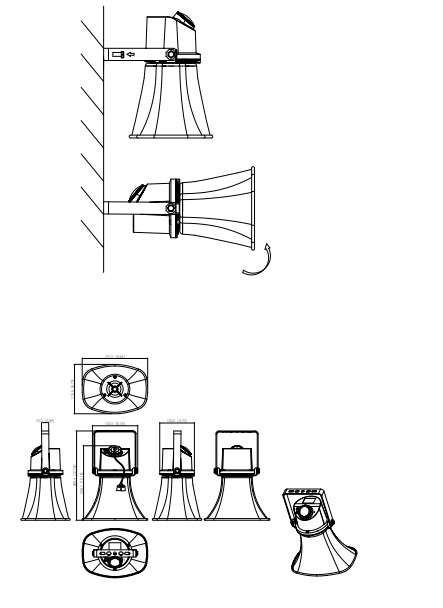

VCS-SH30 dimensions

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
