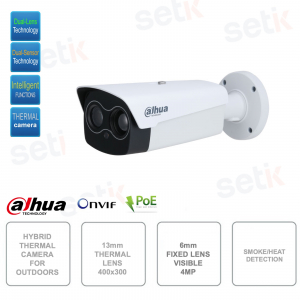

Hybrid-IP-POE-ONVIF-Kamera – 13 mm Wärmebildoptik – 400 x 300 – sichtbar 6 mm 4 MP

Hybrid-IP-POE-ONVIF-Kamera – 13 mm Wärmebildoptik – 400 x 300 – sichtbar 6 mm 4 MP
-57%

Dahua TPC-BF5441-B13F6-BM-AC-S2 PoE ONVIF IP-Hybrid-Wärmebildkamera Außen-/Innenbereich – S2-Version – Wärmemodul: 13-mm-Optik, Vox-Detektorsensor – Auflösung 400 x 300 – Sichtbares Modul: 6-mm-Optik, 1/1,8 Zoll 4MP CMOS-Sensor – 80 m IR-Beleuchtung – WDR – AWB – 3DNR – HLC – BLC – Defog – Künstliche Intelligenz mit IVS und Hitze- und Rauch-/Kälte-/Hot-Spot-Erkennung – Zwei-Wege-Audio – Audio – Alarm – RS485 – RJ45 – 512 GB MicroSD-Steckplatz (nicht im Lieferumfang enthalten) – IP67 ideal für den Außenbereich – Korrosionsschutzbeschichtung.



Artikel-Nr.: TPC-BF5441-B13F6-BM-AC-S2

Marke: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DAHUA: UNTER DEM EINSTANDSPREIS×


 UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
 Entdecken Sie die Promo jetzt >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TELECAMERA IP DAHUA CAMERA TERMICA IBRIDA ONVIF® POE - OTTICA TERMICA 13MM - VISIBILE 6MM - VIDEO ANALISI E ALLARME INCENDIO - TPC-BF5441-B13F6-BM-AC-S2 - VERSIONE S2

Made by Setik
Telecamera IP POE ONVIF Termica Ibrida  - Dahua - TPC-BF5441-B13F6-BM-AC-S2
Doppia ottica e doppio sensore d'immagine -
Modulo Termico: Ottica 13mm, sensore Vanadium oxide uncooled focal plane detector, risoluzione 400x300 - Modulo visibile: Ottica 6mm fissa, sensore CMOS 1/1.8" 4MP - Codec H.265 - IR 80m (visibile) - WDR - AWB - 3DNR - HLC - BLC - Intelligenza artificiale: Protezione Perimetro, rilevamento fumo e calore, Cold/Hot spot tracking - Audio 1in/1out - Allarme 2in/2out - RS485 - RJ45 - Protezione IP67 - Slot MicroSD 512GB (non inclusa) - Per uso in ambiente esterno.

RILEVAMENTO TERMICO




Dettagli prodotto

Telecamera Videosorveglianza IP Bullet Termica 25mm
  • Telecamera IP ONVIF® PoE Bullet Termica Ibrida Dahua - TPC-BF5441-B13F6-BM-AC-S2
  • Versione S2
  • Modulo Termico:
    Ottica 13mm
    Sensore Vanadium oxide uncooled focal plane detector
    Risoluzione 400x300
  • Modulo visibile:
    Ottica 6mm fissa
    Sensore CMOS 1/1.8" a scansione progressiva
    Risoluzione 4MP, 2688 (H) × 1520 (V)
  • Sensibilità Termica: 35mk
  • Illuminazione IR fino a 80m
  • Compressione fino H.265
  • Rilevamento Persone (382m max.) e Mezzi Mobili (max. 1176m)
  • Video Analisi integrata: Protezione perimetro (Attraversamento, Intrusione)
  • Funzioni intelligenti avanzate (Rilevamento e allarme incendio, rilevamento fumo, traccia punto freddo/caldo, Classificazione umano/veicolo)
  • ROI, Motion Detection
  • 1 Uscita Video CVBS/BNC
  • Audio: 1 ingresso e 1 uscita
  • Allarme: 2 ingressi e 2 uscite
  • Porta RS485
  • Porta RJ45 LAN Ethernet 100M
  • Slot MicroSD (Max 512GB - non inclusa)
  • Alimentazione: 12V DC (±20%) / PoE (802.3af) / ePoE
  • Alimentatore NON incluso
  • Temperatura di funzionamento: –30 °C to +70 °C
  • Dimensioni 130,2 (W) x 120,1 (H) x 321 mm
  • Peso netto: 2.35 kg
  • Rivestimento anticorrosione
  • Protezione di livello IP67, ideale per sistemi di videosorveglianza allestiti in ambienti esterni
  • Materiale: Metallo
  • Garanzia 24 mesi

Scheda tecnica

TPC-BF5441-B13F6-BM-AC-S2

Uncooled vanadium oxide uncooled focal plane sensor

Effective pixels: 400 x 300

Pixel size: 17 µm

Thermal sensitivity (NETD): <35mK

Spectrum range: 8 ~14 µm

Focal length (thermal): 13 mm

Angle of view (thermal): 30.4°(H), 22.5°(V)

Effective distance on people:

Detection: 382 meters

Recognition: 98 meters

Identification: 49 meters

Effective distance on vehicles:

Detection: 1176 meters

Recognition: 289 meters

Identification: 146 meters

19X digital zoom

Thermal imaging modes: Digital Detail Enhancement, Auto and Manual AGC, 2D/3D NR, Mirror, 18 color palettes

Image sensor (visible camera) 4-megapixel 1/1.8 CMOS

Effective pixels: 2688 x 1520

Infrared illumination up to 80 meters

Minimum illumination: 0.01 lux (color) / 0.001 lux (B/W) / 0 lux IR On

Focal length (visible optics): 6 mm

Viewing angle (visible optics): 55.3°(H), 30°(V)

Day/night mode with removable mechanical filter

Visible image modes: BLC, HLC, WDR, 2D/3D-NR, exposure compensator, digital defog, mirror

White balance with 7 modes

Automatic and manual gain control

Supports regions of interest (ROI)

H.265, H.264 video compression

Visible camera resolution: 4MP (2688x1520), 3.6MP (2560x1440), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288)

Thermal Stream 1: 1280x1024, 1280x960 (default), 1280x720, 400x300 (1~25/30 ips)

Thermal Stream 2: 640x512, 640x480, 400x300 (default) (1~25/30 ips)

Stream 1 visible: 4MP, 3.6MP (default), 1080P, 720P, D1 (1~25/30 ips)

Stream 2 visible: D1 (default), CIF (1~25/30 ips)

Heat detection and cold/hot spot tracking

Perimeter protection: Cross-line and intrusion detection

Target distinction with vehicle and person classification

Target tracking

Smoke detection

G.711A, G.711Mu audio compression

1 audio input / 1 audio output

2 alarm inputs / 2 alarm outputs

RS485 port

BNC video output (not available when installing a junction box)

RJ-45 Ethernet (10/100M Base-T)

Network protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Onvif, CGI, SDK support

Up to 20 users

Compatible with IE, Firefox, Chrome and Safari browsers

MicroSD card slot up to 512GB (card not included)

Power: 12V DC (±20%) / PoE (802.3af) / ePoE

Power consumption: 5W (basic), 15W (maximum)

Storage temperature from -40°C ~ +70°C

Operating temperature from -30°C ~+70°C

Relative humidity: ≤95%.

Degree of protection IP67

Anti-corrosion coating

Dimensions: 130,2 (W) x 120,1 (H) x 321 mm

Net weight: 2.35 kg

Gross weight: 2.7 kg

CE, FCC certified

Ulteriori dettagli

Telecamera Termica... cos'è? e come sceglierla?

Leggete il nostro articolo!

Standard ONVIF® Onvif, lo standard in assoluto per le telecamere IP. Essere Onvif garantisce compatibilità con qualsiasi sistema di registrazione moderno. NON essere Onvif, significa avere una telecamera fine a se stessa che non potrà mai essere utilizzata insieme a sistemi di registrazione
Alimentazione PoE

Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice

Questa telecamera è una TELECAMERA TERMICA.


Sensibilità 35mk

Spettro visivo da 8 a 14µm




Questa telecamera ha ottica fissa da 13mm (Termica) e 6mm fissa (visibile)



Tecnologia Dual-Sensor!
Questa telecamera è equipaggiata di 2 sensori d'immagine, Vanadium oxide uncooled focal plane detector con risoluzione 400x300 per l'ottica Termica e 1/1.8" 4MP CMOS per l'ottica visibile!





Questa telecamera prevede la VIDEO ANALISI:
- Attraversamento linea
- Intrusione




Questa telecamera prevede funzioni intelligenti avanzate:
- Rilevamento e allarme Incendio

Funzione ROI Questa telecamera è dotata di funzione ROI.

Le immagini derivanti da telecamere IP sono “compresse”, di conseguenza la qualità viene impostata in fase di registrazione. Soprattutto su telecamere con una risoluzione molto alta, spesso è necessario ridurre la qualità in modo da garantirsi un’occupazione di banda ridotta e registrare un numero maggiore di giorni o di telecamere.
Il ROI permette di definire delle zone dove impostare una qualità maggiore (ad esempio una porta, l’area dove solitamente passa la targa, un’uscita, etc.). In quell’area posso impostare una qualità più alta garantendomi così una maggior definizione dell’immagine.
Ultra Smart Funzione ROI
Funzione Motion Detection Questa telecamera presenta la funzione Motion collegandola ad un dispositivo di registrazione avente ingressi allarme.

Questa telecamera presenta 1 Uscita Video (CVBS/BNC)



Full HD E' estremamente utile avere in un sistema TVCC anche Ingressi/Uscite per poter comandare relè o attivare una registrazione in seguito ad un evento
Questa Telecamera a 2 Ingressi ed 2 Uscite
Ingresso Audio Questa telecamera presenta 1 ingresso + 1 Uscita Audio
Dual Encoding RS 485 per Comandi PTZ (Telecamere comandabili da remoto)
Protezione IP67 contro polveri e immersioni Livello di protezione IP67 ( Polveri / Immersioni )


MicroSD Recording

Possibilità di inserire Micro SD fino a massimo 512GB - non inclusa

Questa telecamera è stata realizzata in metallo

Dual Encoding Questo prodotto è coperto da Garanzia di 24 mesi.
