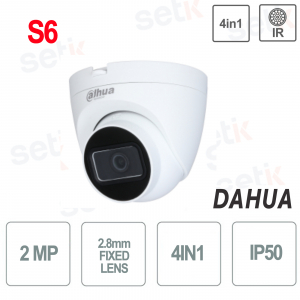

4in1 2MP 2.8mm ir30 ip50 DOME camera - S6

BEST PRICE -59%

Dahua HAC-HDW1200TRQ-S6 Camera with 4 technologies in 1 switchable: CVI / CVBS / AHD / TVI, 2Megapixel 2 MP resolution, 2.8mm fixed lens and 2 MP CMOS sensor - Smart IR illuminator 2 LED 30M, Day / Night (ICR), BLC, HLC, 3D-DNR, DWDR, AGC, privacy mask, BNC video output, IP50

Artikel-Nr.: HAC-HDW1200TRQ-S6

Marke: Dahua

EAN: 6923172593467

INSTALLATEUR FINDEN

https://www.setik.biz/de/kameras/9774-dahua-hac-hdw1200trq-s6-4in1-2mp-28mm-ir30-ip50-dome-camera-s6.html

28,01 €

68,32 € -59%

Steuern inbegriffen

SIND SIE PROFESSIONELL IN DER BRANCHE?
REGISTRIEREN SIE SICH, UM AUF IHRE LISTE ZUGREIFEN

Quantität

Available

ENTDECKEN SIE DIE VERFUGBARE MENGE

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Sheet Further Details Download

DAHUA HD 2MP 2.8MM 4IN1 VIDEO SURVEILLANCE DOME CAMERA - IP50 - IR30

Dahua HAC-HDW1200TRQ-S6 Camera S6 Version with 4 technologies in 1 switchable: CVI / CVBS / AHD / TVI
2Megapixel 2 MP resolution, 2.8mm fixed lens and 2 MP CMOS sensor - Smart IR illuminator 2 LED 30M
Day/Night (ICR), BLC, HLC, DWDR, privacy mask, BNC Video Output, IP50

Power supply NOT included - 24 month warranty

Product details

Telecamera Dome con risoluzione 2MP e ottica Varifocale 2.7mm~12mm

- S6 Series

- 4in1 Dome Camera - Dahua

- 4 Technologies in 1 switchable: CVI / CVBS / AHD / TVI

- Resolution: 2Megapixel 2 MP

- Fixed lens 2.8mm

- Functions: Day/Night(ICR), BLC, HLC, AGC, DWDR

- Smart IR 2LED 30MT illuminator

- BNC port

- IP50 protection

- 12V DC power supply not included
- Suitable for indoor environments

- Dimensions Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66")

- 24 month warranty

Technical data sheet

Model	HAC-HDW1200LRQ-S6
Room
Image Sensor	2MP CMOS
Effective Pixels	1920(H)×1080(V)
Pixel	2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
Y/N Ratio	>65dB
Min. Illumination	0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
Illumination Distance	30 m (98.43 ft)
Illuminator On/Off Control	Car
Illuminator Number	2 (IR light)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed focal
Mount Type	M12
Focal Length	2.8mm
Max. Openings	F2.0
Field of View	H: 102°; V: 60°; D: 129°
Iris Type	Fixed
Close Focus Distance	0.5 m (1.64 ft)
Video
Frame Rate	CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H
Resolution	1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)
Day/Night	Auto switch by ICR
BLC	BLC/HLC/DWDR
WDR	DWDR
White Balance	Auto; White balance area
Gain Control	Car
Noise Reduction	3D NR
Illumination Mode	Smart IR
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Certifications
Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply	12V ±30% DC
Power consumption	Max 2.7W (12V DC, IR on)
Environment
Operating Conditions	-40°C to +60°C (-40°F to 140°F); <95% (RH), non-condensing
Storage Conditions	-40°C to +60°C (-40°F to 140°F); <95% (RH), non-condensing
Ingress Protection	IP50
Structure
Casing	Plastic
Dimensions	Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66")
Net Weight	0.14 kg (0.31 lb)
Gross Weight	0.25 kg (0.55 lb)
Installation	Wall mount; ceiling mount; vertical pole mount

Further details

	4 TECHNOLOGIES IN 1: This camera features 4 technologies in 1 : HDTVI / HDCVI / AHD / CVBS interchangeable. Switch Technologies: Technologies switchable via DIP SWITCH
	This camera features a resolution of 2Megapixel 2 MP 1080P FULL-HD 2MP CMOS Sensor
	This camera is equipped with a 2.8mm fixed lens
	Infrared illuminator with 2 LEDs and approximate maximum range of 30m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
	This camera features 1 BNC Video Output
	Allows you to adapt the lens to Night/Day vision
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations Click to Enlarge
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	Protection level IP50
	12VDC power supply not included
	This product is covered by a 24 month warranty.
