Mini Network IP Camera - 2MP - 2.8mm Lens - Audio - WDR 120dB - Video Analysis

Mini Network IP Camera - 2MP - 2.8mm Lens - Audio - WDR 120dB - Video Analysis
-35% Neu

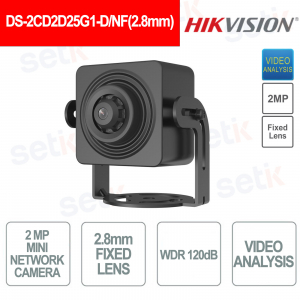

Hikvision DS-2CD2D25G1-D/NF(2.8mm) Camera - Mini Network 2MP - 2.8mm fixed lens - 1/2.8" CMOS sensor - H.265+ Codec - Triple Video Stream - WDR 120dB, BLC, 3D DNR, HLC, Day//Night(ICR) - ROI - Privacy Masking - Motion Detection Up to 32 users - Video Analysis with line crossing, lost/abandoned objects - Reset Key - Weight 93g.



Artikel-Nr.: DS-2CD2D25G1-D/NF(2.8mm)

Marke: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


DS-2CD2D25G1-D/NF(2.8mm) | MINI NETWORK CAMERA - 2.8mm - CMOS 1/2.8" 2MP - AUDIO - VIDEO ANALYSIS - H.265+

Made by Hikvision
Hikvision Mini Network Camera - 2MP - 3.7mm Lens
Resolution: 2MP - 2.8mm fixed lens - 1/2.8" CMOS sensor - H.265+
- WDR 120dB - AGC -BLC - HLC - 3D DNR - Day//Night(ICR) - ROI - Privacy Masking - Motion Detection - Triple Stream - Mono Audio - Video Analysis with line crossing and abandoned and lost objects - Reset Button - Power supply NOT included - 24 months warranty
DS-2CD2D25G1-D-NF(2.8mm)
Resolution:
This camera features a resolution of 2MP 2 Megapixel
Image sensor 1/2.8” 2Megapixel progressive scan CMOS 2MP 1920x1080p FullHD
Optics:
This camera features a 2.8mm fixed lens
H.265+ compression


What is H.265+?

A self-developed intelligent algorithm by Hikvision that can significantly reduce video bitrate based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bitrate control. Optimized for multiple surveillance scenarios, it enables more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
It is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations


Click to Enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

WDR 120dB

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.
Immagine esempio funzione WDR 120db

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images both in low light and in motion. The most powerful solution currently available for obtaining maximum results in low light.

Technical data sheet

General Function
DS-2CD2D25G1-D/NF(2.8mm)

Room

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.002 Lux @ (F1.2, AGC ON)

Shutter Time

1/3 s to 1/100,000 s

Lens

Focal Length & FOV

horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3°

Lens Mount

Mini

Iris Type

Fixed

Openings

F2.5

Video

Main Stream

50Hz: 50fps (1920×1080, 1280×720)
60Hz: 60fps (1920×1080, 1280×720)

Sub Stream

50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)

Third Stream

50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)

Video Compression

Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Further details

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
