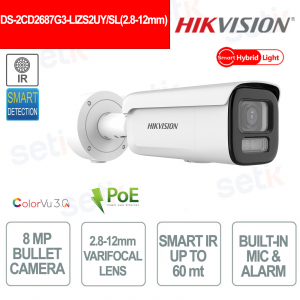

ColorVu 8MP IP POE Bullet Outdoor Camera - 2.8-12mm Lens - Artificial Intelligence

-35% Neu

Hikvision ColorVu | DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) - Hikvision 8MP PoE bullet outdoor IP camera , high quality 1/1.8" 0.001Lux CMOS sensor with ColorVu technology with HIKAI-ISP for advanced noise reduction and bright F1.2 fixed lens with 2.8-12mm motorized varifocal lens. Smart white light IR up to 60m - Illuminator with White LED , 60M range - dual microphone and speaker for two-way audio and active deterrence. Artificial intelligence: AcuSense Deep Learning (Face detection) and basic Video Analysis (Perimeter protection) , WDR 130dB, BLC, HLC, ROI, 3DNR, Motion Detection - Slot for MicroSD 512GB (not included), Reset button, IP67 protection for outdoors and IK10 for vandalism, metal body.

Artikel-Nr.: DS-2CD2687G3-LIZS2UY/SL(2.8-12mm

Marke: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

INSTALLATEUR FINDEN

https://www.setik.biz/de/kameras/11689-hikvision-ds-2cd2687g3-lizs2uy-sl28-12mm-colorvu-8mp-ip-poe-bullet-outdoor-camera-28-12mm-lens-artificial-intelligence.html

840,58 €

1.293,20 € -35%

Steuern inbegriffen

EINLOGGEN UND DEN PREIS ENTDECKEN

TOTALER AUSVERKAUF ×

CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

Description Product Details Technical Sheet Further Details Download

DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) | HIKVISION COLORVU POE 8 MP 2.8-12MM OUTDOOR WHITE LED BULLET POE IP CAMERA - MICROPHONE

Hikvision IP PoE Bullet Camera - DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)
8MP 8 Megapixel Resolution - Bright F1.2 lens 2.8-12mm varifocal lens - 1/1.8" 0.001 Lux CMOS sensor with with
ColorVu Technology: 24/7 color vision even at night! HIKAI-ISP for advanced noise reduction. Triple Stream - Codec up to H.265+ - WDR 130dB, BLC, HLC, 3DNR, ROI, Motion Detection - dual microphone and speaker for two-way audio and active deterrence. Artificial Intelligence with Deep Learning (Face Capture) and Basic Video Analytics (Perimeter Protection) - 512GB MicroSD slot (not included) - IP67 outdoor protection & IK10 vandalism protection - Metal body - Power supply not included - 24 months warranty.

ColorVu Technology:
Hikvision ColorVu technology provides 24/7 vivid and colorful images with advanced F1.0 lens and high-performance sensor. The F1.0 super aperture collects more light to produce brighter images. The advanced sensor technology can greatly improve the use of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid color details, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is F1.0 . Such a wide aperture allows it to collect a large amount of light and capture color images even in the dark.

SENSOR WITH AMAZING QUALITY
The sensor installed in ColorVu products has a sensitivity of 0.0005 Lux and has allowed a significant improvement in the quality of shooting.
Thanks to the BBAR coating and ED glass, the images delivered are free from backlight effects and with reduced light flare.

ACUSENSE TECHNOLOGY - EXTREME INTELLIGENCE
ColorVu products are also extremely intelligent thanks to the Acusense algorithm present. Reduction of false alarms.

SML TECHNOLOGY - WHITE LED ON BOARD
All cameras in this line have an integrated white LED, with many adjustable functions all adjustable during installation; from the courtesy light, to smart activation in conditions of total absence of light.

SIMPLIFIED COMMISSIONING
Thanks to the 4 pre-configured profiles and the possibility of creating two custom ones, ColorVu products allow for easy installation for industry professionals.

POE (Power Over Ethernet):

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

Resolution:

This camera features a resolution of 8MP ( 3840 × 2160 pixels)

Bright lens:

This camera features a bright F1.2 aperture lens and 2.8-12mm motorized varifocal lens.
The camera will collect much more light ensuring color shots even in the dark.

Advanced Sensor and ColorVu Technology:

Thanks to the sensitivity of the sensor (0.0005 Lux) , the BBAR coating and the ED glass , this camera is able to provide images without those annoying backlight effects. The details captured are vivid in color and in high definition even in low light conditions . It will be easier to recognize the characteristics of a person or a car/license plate

H.265+ compression

What is H.265+?

A self-developed intelligent algorithm by Hikvision that can significantly reduce video bitrate based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bitrate control. Optimized for multiple surveillance scenarios, it enables more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator | White Light:

With the additional white light on board , the camera is able to provide images with more vivid colors even in total darkness.
There are many adjustable functions: from the courtesy light to smart activation in conditions of total absence of light.

Range 60M

This camera also features SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted depending on the object being framed.
Tecnologia Smart IR

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI

Day/Night:

It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

MICRO SD SLOT:

512GB Micro SD Slot ( NOT INCLUDED )

BLC (Back Light Compensation):

It is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations

Click to Enlarge

AGC (Automatic Gain Control):

integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:

More advanced version of NOISE REDUCTION management. It allows still images both in low light and in motion. The most powerful solution currently available for obtaining maximum results in low light.

Diet:

To operate this camera, a 12V DC power supply is required (not included)

IP67 & IK10 Protection:

Dust, temporary immersion and vandalism protection. Suitable for outdoor environments.

Technical data sheet

DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)
Room
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type	Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV	horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3°
Lens Mount	Integrated
Iris Type	Fixed
Openings	F1.2
Depth of Field	1m to ∞
Illuminator
Supplement Light Type	IR, White Light
Light Range Supplement	Up to 60 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream	50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) 60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) *The third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bitrate	32Kbps to 8Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bitrate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Audio
Audio Type	Mono sound
Audio Bitrate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate	8kHz/16kHz/32kHz/48kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host	Up to 32 users 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client	iVMS-4200,Hik-Connect,Hik-Central
Web Browser	Free live view plug-ins: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
SNR	≥ 52dB
Wide Dynamic Range (WDR)	130dB
Image Stabilization	IIS
Privacy Mask	4 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Speaker	Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
Audio	Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Smart Event	Scene change detection
Deep Learning Function
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power	12 VDC ± 25%, 1.21 A, max. 14.5 W,Two-core terminal block,reverse polarity protection, PoE: PoE(IEEE 802.3at class 4)，MAX：18W
Material	Front cover: metal, body: metal, bracket: metal
Dimensions	Ø140 mm × 333.8 mm (Ø5.5" × 13.1")
Package Size	386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Weight	Approx. 1555 g (3.4 lb.)
With Package Weight	Approx. 2326 g (5.1 lb.)
Storage conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light	White Light
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU
Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)
