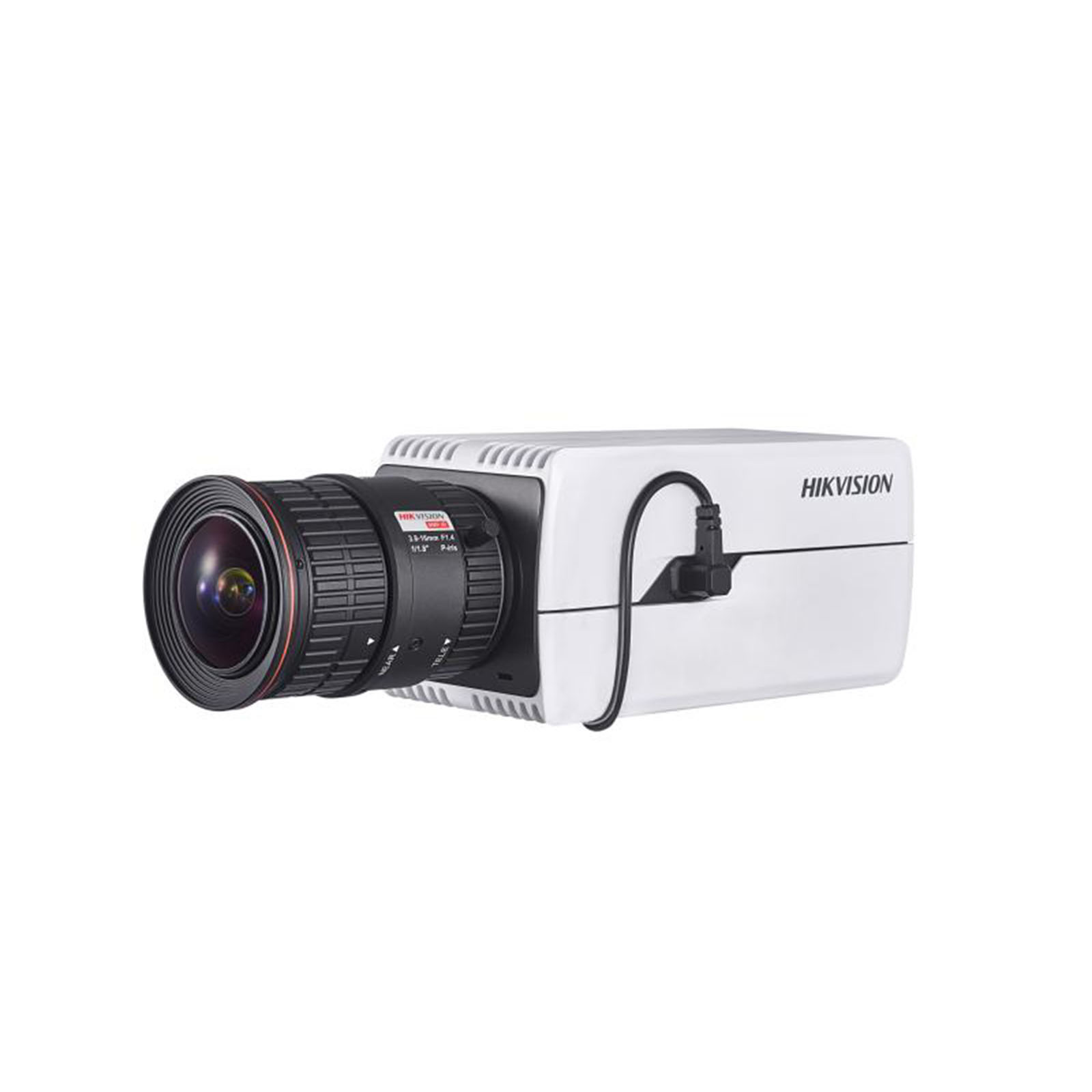

DS-2CD50C5G0-AP - ONVIF POE IP Boxed Camera 12MP 4K Ultra HD Resolution - CS Lens Mount - 1/1.7" Progressive Scan CMOS Sensor - Digital WDR - Face Detection - Day/Nigh(ICR) - BLC, HLC, 3D DNR, Defog, EIS - ROI - Smart Codec H.265+ - 5 Video Streams - Video Analysis - Audio - Alarm - Reset Key - RS485 Interface - RJ45 1000M - MicroSD Slot max. 256GB (not included) - In aluminum alloy. Hikvision



Artikel-Nr.: DS-2CD50C5G0-AP

Marke: Hikvision

EAN: 6954273680480

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


DS-2CD50C5G0-AP | IP BOX POE ONVIF HIKVISION 12MP 4K ULTRA HD - DARKFIGHTER TECHNOLOGY - CS LENS MOUNT - AUDIO - ALARM - MICRO SD SLOT

Made by Hikvision

ONVIF® BOXED Hikvision PoE IP Camera - DS-2CD50C5G0-AP
12MP 4K ULtra HD 4000 × 3000 resolution - CS optics - 1/1.7" 12MP CMOS sensor - Face detection - H.265+ codec with 5 video streams - Digital WDR - 3D DNR - EIS - BLC - HLC - Defog - ROI - Audio 1in/1out - Alarm 2in/2out - 256GB MicroSD slot (not included) - RS485 interface - RJ45 1000M - Made of aluminum alloy - Reset button - Power supply NOT included - 24 months manufacturer's warranty
Video Analysis : Line crossing, intrusion, region entry/exit, unexpected baggage, object removal detection, face detection, scene change, motion detection, counting statistics.
DS-2CD50C5G0-AP
Security

ONVIF®:

Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera that is an end in itself and can never be used together with recording systems.

POE (Power Over Ethernet):
The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

Resolution:
This camera has a resolution of 12 Megapixels
Image sensor 1/1.7” 12 Megapixels 12MP 4K Ultra HD progressive scan CMOS, 4000 × 3000

Video Analysis:

This camera has Video Analysis functions:

  • Crossing the line,
  • intrusion,
  • region entry/exit,
  • unexpected baggage,
  • object removal detection,
  • face detection,
  • change of scenery,
  • motion detection,
  • Counting statistics
  • ROI
H.265+ compression


What is H.265+?

A self-developed intelligent algorithm by Hikvision that can significantly reduce video bitrate based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bitrate control. Optimized for multiple surveillance scenarios, it enables more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

5+ Video Streams!:

  • Main Stream: 50Hz: 20fps(4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream: 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Digital WDR:
WDR (Wide Dynamic Range): This is the professional solution when you need to operate in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or all situations where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong contrast levels.
Immagine esempio funzione WDR 120db
Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
It is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations


Click to Enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images both in low light and in motion. The most powerful solution currently available for obtaining maximum results in low light.

Audio:
1 input + 1 output
Alarm
This product contains 2 alarm inputs and 2 alarm outputs.
Micro SD:
This product contains 1 slot for MicroSD memory cards with a capacity of up to 256GB (not included in the package).

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

Network Storage

Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR

Client

iVMS-4200, iVMS-5200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+, Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night Switch

Day/Night/Auto/Schedule/Triggered by Alarm In

Target Cropping

Yes

DNR

3D DNR

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Image Enhancement

BLC, HLC, defog, 3D DNR, EIS

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio

1 input (line in), 1 output (line out), mono

Alarm

2 inputs, 2 outputs (up to 12 VDC 1A or 10 VAC 500 mA)

Video Output

1Vp-p composite output (75 Ω/CVBS)

Onboard Storage

Built-in micro SD/SDHC/SDXC slot, up to 256GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface

Power Output

12 VDC, max. 200mA (supported by all power supply types)

Event

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Counting

Counting

Face Detection

Yes

Exception Detection

Scene change detection, audio exception detection, defocus detection

General

Firmware Update

5.5.80

General Function

One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; recommended AC input 24 V, voltage range of 15 to 36 VAC allowed; two-core terminal block, PoE (802.3af, class 3)

Power Consumption and Current

With extra load: 12 VDC, 0.8 A, max. 10W; 24 VAC, 0.7 A, max. 10W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3,Without extra load: 12 VDC, 0.6 A, max. 7W; 24 VAC, 0.55 A, max. 7W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, “with extra load” means that an extra device is connected to and powered by the camera.

Room Dimension

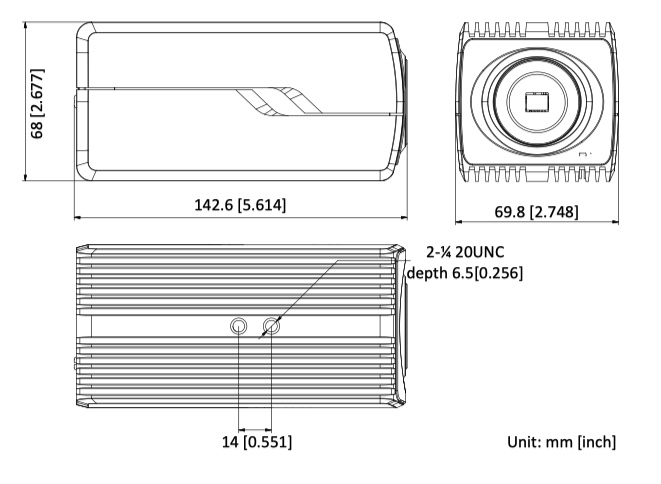

142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″),With package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)

Room Weight

Approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package,-AP: Approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package

Further details

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
