PATCH CORD UTP CAT5E 1 METER - DAHUA - PFM972-5EU-1
Product details

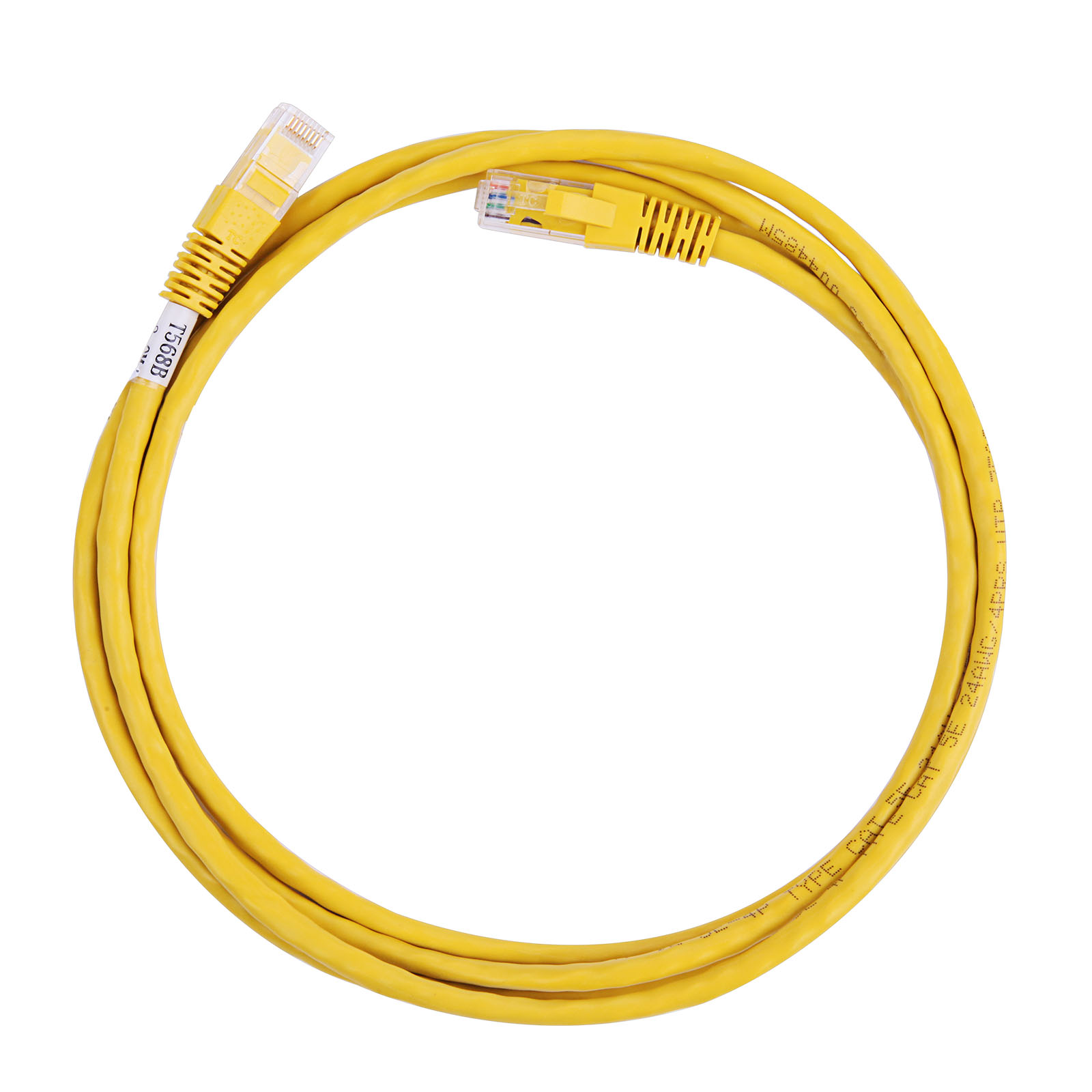

- UTP CAT5E patch cord - Dahua - PFM972-5EU-1
- Cable length 1 meter
- Conductor in OFC (Oxygen Free Copper)
- PVC sheath
- Diameter: 5.3mm±0.3mm
- Product excluded from warranty

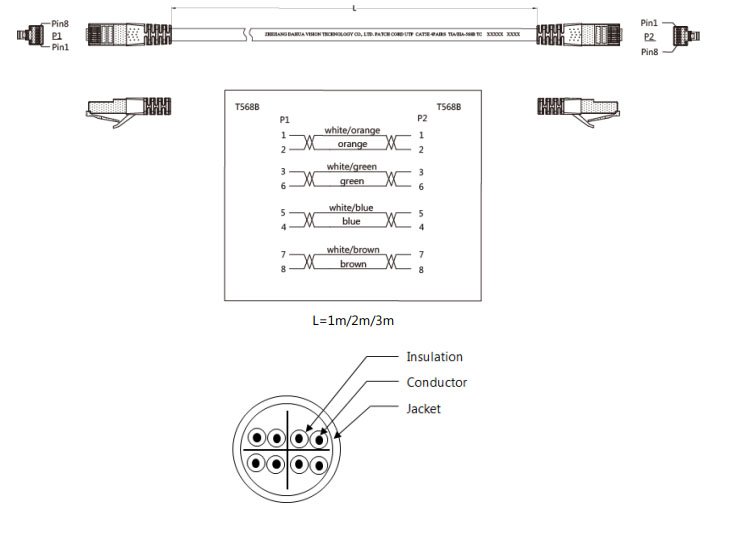

Technical data sheet
|
Model |
PFM972-5EU-1 |
|
|
Structure |
||
|
Conductor |
Material |
OFC (oxygen-free copper) |
|
Composition |
7*0.19±0.01mm |
|
|
Wire gauge |
24AWG 4P |
|
|
Insulation |
Material |
HDPE |
|
Diameter |
0.9mm±0.03mm |
|
|
Color(4 Pairs) |
Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown |
|
|
Elongation at break |
≥100% |
|
|
Peelability |
No damage to insulation or conductor |
|
|
Jacket |
Material |
LSZH, meet the requirement of CPR E class |
|
Min. average thickness |
0.4mm |
|
|
Diameter |
5.3mm±0.3mm |
|
|
Color |
Yellow |
|
|
Tensile strength |
≥9MPa |
|
|
Elongation at break |
≥100% |
|
|
Length |
1m (3.28ft) |
|
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
