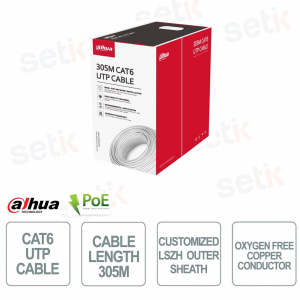

UTP CAT6 Network Cable - 305 meters - PoE Compatible - LSZH Sheath - Dahua

UTP CAT6 Network Cable - 305 meters - PoE Compatible - LSZH Sheath - Dahua
-57%

UTP CAT6 network cable - Dahua - PFM923I-6UN-CC - Length 305 meters - PoE compatible - High purity oxygen free copper conductor - White color - External sheath in treated PVC - Diameter 6.0 mm ± 0.3 mm - External sheath in LSZH (Low Smoke Zero Halogen), flame retardancy class CE CPR eca Certified.

Artikel-Nr.: PFM923I-6UN-CC

Marke: Dahua

EAN: 6923172572967

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DAHUA: UNTER DEM EINSTANDSPREIS×


 UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
 Entdecken Sie die Promo jetzt >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

CAT6 UTP CABLE - 305 METER SKEIN - POE COMPATIBLE - LSZH SHEATH - COPPER CONDUCTOR - DAHUA - PFM923I-6UN-CC

Prodotto marca Dahua
PFM920I-5EUN - UTP CAT6 Network Cable - Length: 305 Meters - PoE compatible - High purity oxygen-free copper conductor - LSZH (Low Smoke Zero Halogen) outer sheath - CE CPR eca flame retardancy class Certified - Quality product - 10 year manufacturer's warranty.

Product details

  • UTP CAT6 Network Cable - Dahua - PFM923I-6UN-CC
  • 305 Meter Skein
  • Copper conductor (high purity, oxygen free)
  • Diameter: 6.0mm ± 0.3mm
  • Color: white
  • Separator material: PE
  • Rip Cord Material: Polyester
  • Insulation material: HDPE
  • Sheath in LSZH (Low Smoke Zero Halogen)
  • Net weight: ≥10.5kg
  • Flame retardancy class: CE CPR eca Certified
  • 10 year manufacturer's warranty
Cavo UTP

Technical data sheet

PFM923I-6UN-CC

Conductor

Material

Oxygen free copper (99.97% purity)

Diameter

0.53mm ± 0.01mm

Insulation

Material

HDPE

Min. Average Thickness

0.21mm

Diameter

0.95mm ± 0.1mm

Color (4 Pairs)

Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

Separator

Material

PE

Specification

Translucent 4.5 × 0.4 mm

Rip Cord

Material

Polyester

Specification

500D

Sheath

Material

LSZH

Min. Average Thickness

0.5mm

Diameter

6.0mm ± 0.3mm

Color

White

Electrical

Max. DC Resistance of a Single Conductor

8.7Ω/100m

Min. Insulation Resistance

5000MΩ·km

Max. DC Resistance Unbalance

2% (intra pairs), 4% (inter pairs)

Dielectric Strength

No breakdown with 1KV DC for 1 min

Transmission

Characteristic Impedance

100 ± 15Ω

Near End Cross Talk

≥39.30dB/100m@250MHz

Max. Attenuation

34.8dB/100m@250MHz

Return Loss

≥17.3dB/100m@250MHz

Mechanical

Tensile Strength

Sheath≥10 MPa, insulation≥16 MPa

Elongation at Break

Sheath≥125%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

Environmental

Shrinkage of Insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥8MPa, ≥100%

Low Temperature Bending Test

No cracking after testing

Heat Shock Test

No cracking after testing

Operation Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Security

Vertical Fire Propagation Test

Complies with IEC 60332-1-2

Packaging

Cable Length

305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)

Inner Carton Dimensions

416.0 mm × 412.0 mm × 220.0 mm (16.38" × 16.22" × 8.66") (L × W × H)

Packaging Method

305.0 m (1000.66 ft) per carton, one carton with 2 inner cartons

Net Weight

≥10.5kg (23.15lb)

Gross Weight

≥11.5kg (25.35lb)

Compliance

Executive Standards

Q/DXJ 067-2019, EN50575-2014

Certification

Certification

CPR Eca

Further details

Prodotto senza garanzia Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty.
