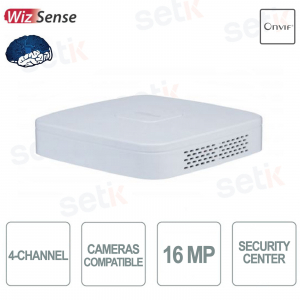

4K HDMI 16MP IP NVR Recorder 4 Channel for Surveillance Cameras - DAHUA

HDD space calculation

IN DER FÖRDERUNG -58% Neu

NVR4104-EI Dahua WizSense NVR IP Video Recorder for Surveillance 4 IP Channels up to 16Megapixel , Bandwidth 80/80/80Mbps , Video Compression up to Smart H.265+, VGA, HDMI, 2 USB (2.0), ONVIF , new graphic interface , supports IP cameras , up to 1HDD SATA 16TB, 1 input + 1 Audio output. Ideal for retail stores, families, courtyards and public areas.

Artikel-Nr.: NVR4104-EI

Marke: Dahua

INSTALLATEUR FINDEN

https://www.setik.biz/de/cctv-rekorder/11553-dahua-nvr4104-ei-4k-hdmi-16mp-ip-nvr-recorder-4-channel-for-surveillance-cameras-dahua.html

191,64 €

456,28 € -58%

Steuern inbegriffen

EINLOGGEN UND DEN PREIS ENTDECKEN

Description Product Details Technical Sheet Further Details Download

WIZSENSE DAHUA | 4 CHANNEL IP NVR 16MP H.265+ 1HDD UP TO 16TB ARTIFICIAL INTELLIGENCE SUPPORT

4 Channel IP NVR - New WizSense - Dahua - NVR4104-EI
4 IP Channels up to 16Megapixel - Bandwidth 80/80/80Mbps - Compression up to Smart H.265+
Support IP cameras with on-board AI and SMD . Up to 1HDD 16TB installable - VGA - HDMI(4K) -
2 USB (2.0) - ONVIF® support - 1 RJ45 - Audio (1 input + 1 output) - Hard Disk NOT included - 24 months warranty

Product details

	Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera that is an end in itself and can never be used together with recording systems.
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	4 Channels with resolution up to 16 Megapixels! Recording Resolution: 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF Bandwidth: 80 Mbps for access, 80 Mbps for storage and 80 Mbps for forwarding
	Supports IP cameras with ONVIF® and RTSP protocol
	Dahua has released the new GUI 4.0 for NVR! GUI-NVR 4.0: New graphical user interface, even more simplified! Here are the major new features: No plugin in web browser that improves compatibility of different web browsers • Supports multi-day search to make finding goals easier • Hard drive format notification to avoid losing important data • Better compatibility with TPC, AI fisheye, PTZ cameras, etc. • New firewall and network security protocol added to protect your system • Seagate * SHM (SkyHwak Health Management) actively protects data
	Cloud function via APP for mobile devices. Compatible with Android, iOS Remote surveillance, live viewing and video playback directly from your phone EVOPLUS / EASYVIEWER / DMSS
	This video recorder supports cameras with built-in IVS (Intelligence) - recognizes and records videos containing IVS data on all IP channels. - records standard intelligence functions - records IVS premium features (detect abandoned or lost objects, tripwire violations and intrusion violations.) - Face detection, people counting and heat map from IP cameras SMD Plus: Support cameras with SMD Plus on board. With the deep learning algorithm, Dahua SMD Plus filters the alarm received by detecting an uninterested target, and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area.
	Equipped with: 1 SATA port, up to 16TB capacity. (Hard drive not included) WARNING: On NVR systems use specific audio/video disks. For more information, read our dedicated article .
	1x RJ-45 (10/100Mbps)
	This NVR features 2x USB 2.0 ports
	Resolution up to 4K via HDMI port! New ULTRA HD 4K Technology! Resolution even higher than FULL-HD! More detail available, greater sense of depth and realism.
	This DVR features 1 audio input and 1 audio output
	Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
	SECURITY CENTER - DAHUA Security Center provides a comprehensive view of your device's security and helps protect your NVR with security scans, attack defense, certificate management, audio and video encryption, and security settings. Security alerts can be sent in various ways such as email, text, and voice message. Security Center is responsible for collecting, processing, analyzing, visualizing and storing all data collected by cameras, sensors and other devices on the front end. An integrated security center for safe cities must ensure seamless communication between departments, unified incident response, and advanced data analytics for smarter, more efficient policing.
	This product is covered by a 24 month warranty.

Technical data sheet

Model: NVR	NVR4104-EI
SYSTEM
Main Processor	Industrial grade processor
Operating System	Embedded Linux
Operation Interface	Web, Local GUI
TO THE
AI by Recorder	Face detection, face recognition, perimeter protection, and SMD Plus;
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)	2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Detection
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)	1 channel (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
Face Recognition
Face Database Capacity	Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Detection Performance of AI by Recorder (Number of Channels)	4-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Detection Performance of AI by Camera (Number of Channels)	All channels (8 targets/s)
SMD plus
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera	All channels (16 targets/s)
Audio & Video
Access Channel	4 Channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing
Resolution	16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF
Decoding Capability	AI disabled: 2-channel 16 MP@30 fps; 2-channel 12MP@30fps; 4-channel 8MP@30fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12MP@30fps; 3-channel 8MP@30fps; 3-channel 6MP@30fps; 4-channel 5MP@30fps
Video Output	1 HDMI, 1 VGA HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen display	1st Screen: 1/4 2nd Screen: 1/4
Third Party Camera Access	Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
Standard Compression
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access	Android /iOS
Interoperability	ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
Browser	Chrome; IE9 and later; Firefox
Record Playback
Multichannel Playback	Up to 4 channels
Record Mode	General, motion detection; intelligent; alarm
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback
Alarm
General Alarm	Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm	Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Smart Alarm	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage	Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
HDD Interface	1 SATA port, up to 16 TB.The maximum HDD capacity varies with environment temperature.
USB	2 (2 rear USB 2.0 ports)
HDMI	1
VGA	1
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply	12VDC, 2A
Power Consumption	<10W(without HDD)
Net Weight	0.45 kg (0.99 lb)
Gross weight	1.07 kg (2.36 lb)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × L × H)
Package Dimensions	364 mm × 96 mm × 261 mm (14.33" × 3.78" × 10.26") (W × L × H)
Operating Temperature	–10 °C to +50 °C (+14 °F to +122 °F)
Storage Temperature	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–93% (RH), non-condensing
Installation	Rack or desktop
Certifications	FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
